What Is a 2D Wire Bending & Butt Welding Machine—and Why Is It a Game-Changer for Storage Rack Production?

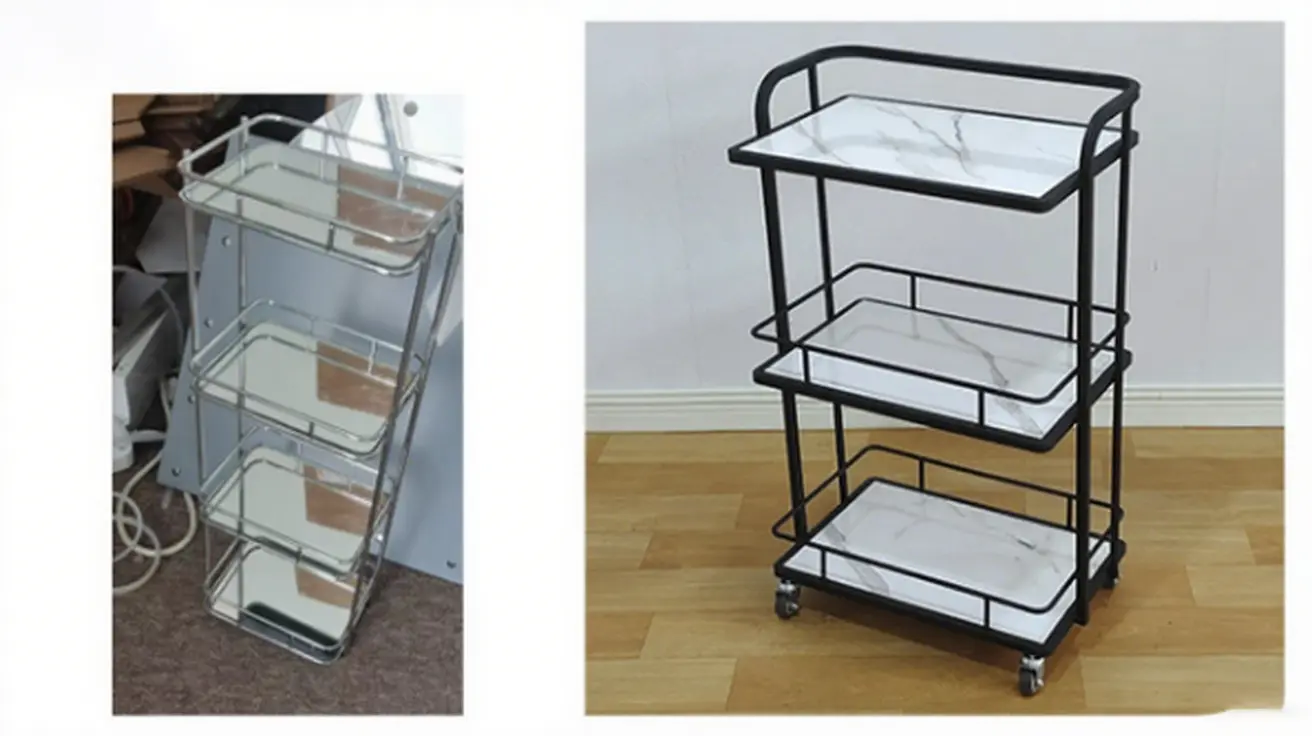

In storage, retail, and home organization markets, freestanding wire racks have become everyday essentials. But as demand surges, traditional methods—manual bending and semi-automated welding—can’t keep pace with modern expectations for speed, precision, and cost control.

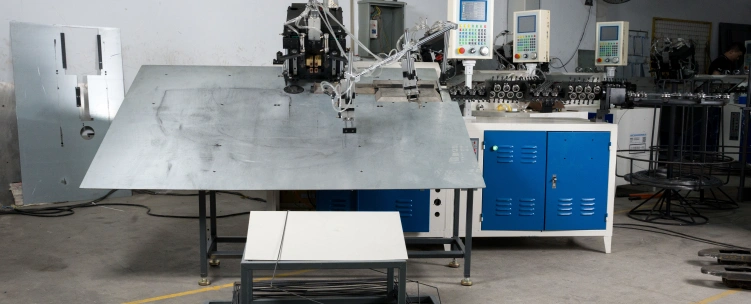

That’s why Jinchun Mechanical, one of the leading small 2D CNC iron wire bending machine manufacturers, introduced the 2D bending and butt welding integrated machine. Designed specifically for high-efficiency production of 3–8mm wire frames, it combines bending and welding into a single automated workflow—turning wire into welded frames in just 8–10 seconds per piece.



Why Is the 2D Bending & Welding Machine Ideal for Mass-Producing Wire Storage Racks?

⏳All-in-One Solution: Feed, Bend, Weld—Fully Automated

Traditional production of metal storage rack frames involves manual wire feeding, section-by-section bending, and hand welding. It’s time-consuming and error-prone. Jinchun’s integrated machine transforms this workflow into a seamless automated loop:



⏳ Precision Wire Feeding

3 servo-driven feeding wheels made from SKD11 tool steel

Equipped with a 0.8kW Inovance servo motor for stable tension control

Feeds 3–8mm wire with ±0.05mm accuracy

Automatically adjusts for straight lines, angles, and arc transitions based on programmed instructions



⏳3D Dynamic Bending Module

Controlled by PLC with bilingual UI (English/Chinese)

Executes ±180° inward/outward bends and complex 2D shapes using 3 servo bending units

±0.1° bending angle precision ensures geometric accuracy for even the most demanding racks

Store and instantly recall up to 125 bending programs via touchscreen—no mold re-tuning required



⚡ Instant Welding Integration

Features a 63KW custom welding transformer and dual robotic clamp arms

Finishes welding within 0.5 seconds per joint

Welding parameters auto-adjust based on frame specs—improving strength and eliminating under/overweld risks

Produces stronger joints than manual welding by over 30%



How the 2D Bender Meets the Diverse and High-Standard Needs of Rack Manufacturers

With product variation increasing, manufacturers must adapt quickly. Jinchun’s 2D wire bender and welder was built for multi-spec, high-standard production, offering:



✅Broad Material & Size Compatibility

Processes round, flat, and square wires of all materials

Wire diameter range: 3–8mm

Max single frame size: up to 2000mm in length

Supports everything from desktop shelving units to heavy-duty warehouse rack frames



✅Flexible Manufacturing for Mixed Orders

Stores 4,000+ programs, each with up to 300 motion steps (bend, rotate, align, etc.)

Enables same-day program switching—make L-shaped kitchen racks in the morning, U-shaped bathroom frames in the afternoon

No hardware change or mold swap needed—dramatically reduces downtime



✅ Precision + Stability in High-Volume Runs

Built with high-rigidity steel frame (1,100kg total weight)

Uses Cr12 wear-resistant feed rollers and servo-driven closed-loop control

Maintains dimensional tolerance under 0.3mm for 90° angles, even after 100,000+ continuous cycles



Why More Manufacturers Are Choosing Jinchun’s 2D CNC Wire Bending Machine

✅Reduce Labor, Increase Throughput

Replaces 5–6 workers with 1 operator managing up to 3 machines

Real-world case: Shenzhen client tripled output (8,000 → 24,000 units/month) and reduced labor cost by 70%



✅ Full Automation, No Middle Intervention

Integrated feeding, bending, welding, stacking (robotic arm optional)

Eliminates manual handling between steps—ensures consistency and eliminates bottlenecks



✅ Built to Last

Uses industrial-grade components: Inovance servo motors, SKD11 welding clamps, and a 63KW transformer

MTBF (mean time before failure): 8,000+ hours

Nationwide 24/7 service coverage minimizes downtime



How the 2D Bending + Welding Machine Became a Capacity Booster in Shenzhen

A Shenzhen-based rack manufacturer used to rely on labor-intensive processes. With a team of 6 workers, daily output barely hit 300 units. Inconsistencies in angle accuracy and weld quality led to high rejection rates and customer complaints.



Since adopting the Jinchun 2D wire bender & welding machine:

Operators reduced to 2

Daily output reached 1,200+ units

Product rejection dropped below 2%

Successfully landed contracts from a major global retail brand



"With Jinchun’s machine, we’ve not only tripled production but improved product quality enough to expand into the European market." — Production Manager, Shenzhen



Conclusion: From Prototype to Full-Scale Production—Redefine Wire Rack Manufacturing with Jinchun

As wire rack demand shifts from “basic utility” to high-precision, scalable production, manufacturers must evolve. Jinchun’s 2D bending and butt welding machine sets a new benchmark for 3–8mm wire forming:

Up to 14,400 pieces per day per machine

Supports on-demand customization with digital program switching

Handles everything from forming to final weld with unmatched speed and accuracy



If you're looking for a solution that delivers speed, precision, and cost-efficiency, this is your next factory upgrade.



➤ Contact Jinchun Mechanical today to request a quote or explore custom configurations. Turn every wire into a high-efficiency opportunity—with a bender, welder, and smart forming system built to lead.
