How Welding Machines Work: A Comprehensive Guide to Arc Welding Technology​

Welding is a cornerstone of modern manufacturing and construction, enabling the joining of metals with precision and strength. Among the various welding techniques, ​​arc welding​​ stands out as the most prevalent method due to its versatility and efficiency. In this guide, we’ll delve into the mechanics of arc welding machines and explore how they transform electrical energy into the heat needed to fuse metal components.

​​Understanding the Basics of Arc Welding​​

Arc welding relies on an ​​electrical arc​​—a powerful discharge of current that jumps between two conductors. In this process:

The ​​workpiece​​ (metal being welded) and an ​​electrode​​ (a consumable wire or stick) act as the two conductors.

When the electrode nears the workpiece, the welding machine’s power supply creates a voltage difference, ionizing the air gap and forming a conductive plasma channel. This channel carries the current, generating intense heat.

Temperatures in the arc can exceed ​​6,500°F (3,600°C)​​, instantly melting the electrode and workpiece surface. The molten material forms a ​​weld pool​​, which solidifies into a strong bond upon cooling.

​​Step-by-Step Breakdown of the Arc Welding Process​​

​​Machine Setup​​:

Operators adjust settings like ​​voltage​​ and ​​amperage​​ based on the metal type, thickness, and desired weld characteristics. Modern machines often feature digital interfaces for precision control.

​​Grounding the Workpiece​​:

A ​​ground clamp​​ attaches to the workpiece, completing the electrical circuit. This ensures the flow of current from the machine, through the electrode, and back to the machine.

​​Electrode Engagement​​:

The welder strikes the electrode against the workpiece, initiating the arc. Depending on the technique, electrodes may be:

​​Stick electrodes​​ (consumed during welding).

​​Wire electrodes​​ fed through a “gun” in processes like MIG (Metal Inert Gas) welding.

​​Arc Formation​​:

Pulling the electrode 2–4 mm away from the workpiece sustains the arc. The heat melts both the electrode and workpiece, creating a molten pool.

​​Fusion and Cooling​​:

As the arc moves along the joint, the molten materials mix and cool, forming a durable bond.

​​Shielding Gas Protection​​:

To prevent contamination from atmospheric gases (e.g., oxygen, nitrogen), shielding gases like ​​argon​​, ​​helium​​, or ​​CO₂​​ are used. These gases shield the weld pool, ensuring structural integrity. Some electrodes also release flux, which generates protective gas and slag as it melts.

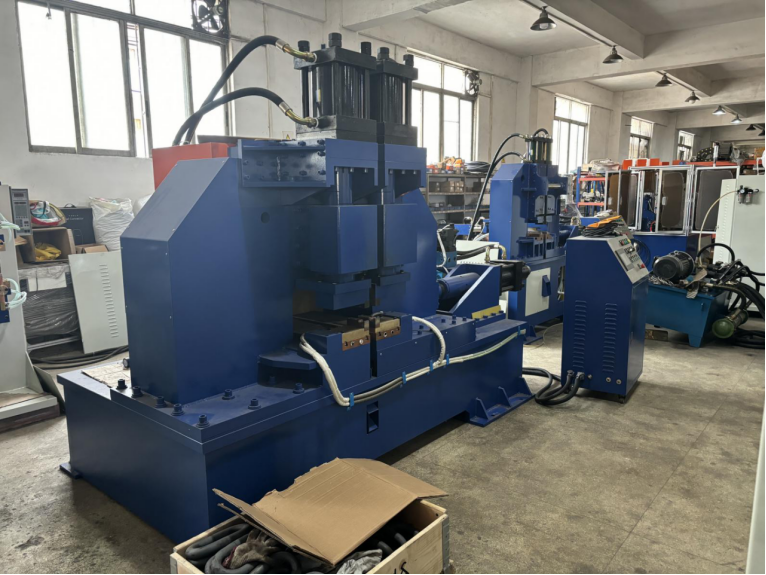

​​Key Components of a Welding Machine​​

A typical arc welding machine comprises:

​​Power Source​​: Converts AC/DC input to the required welding current.

​​Control Panel​​: Regulates voltage, amperage, and welding mode.

​​Electrode Holder/Gun​​: Transmits current to the electrode.

​​Workpiece Clamp​​: Provides a stable ground connection.

​​Cooling System​​: Prevents overheating in high-duty-cycle machines.

Advanced models may include features like ​​pulse welding​​ (for precision) or ​​wire feeders​​ (for automated MIG/TIG processes).

​​Types of Arc Welding Processes​​

​​Shielded Metal Arc Welding (SMAW)​​: Uses stick electrodes and is ideal for outdoor or field applications.

​​Gas Metal Arc Welding (GMAW/MIG)​​: Employs a wire electrode and inert gas shielding, favored for speed and automation.

​​Gas Tungsten Arc Welding (GTAW/TIG)​​: Uses a non-consumable tungsten electrode and is renowned for precision on thin materials like aluminum or stainless steel.

​​Safety and Quality Considerations​​

​​Protective Gear​​: Welders wear helmets, gloves, and fire-resistant clothing to shield against UV radiation, sparks, and spatter.

​​Ventilation​​: Fumes from melted metal and flux require proper airflow or filtration systems.

​​Quality Control​​: Post-weld inspections check for defects like porosity or incomplete fusion, often using ultrasonic testing or X-rays.

​​The Future of Welding Technology​​

Advancements in robotics, artificial intelligence, and automation are revolutionizing welding. Smart machines now optimize parameters in real time, while additive manufacturing (3D printing with metal alloys) pushes the boundaries of what's possible.

By mastering the fundamentals of arc welding machines, professionals and enthusiasts alike can unlock new possibilities in fabrication, repair, and innovation. Whether you’re building skyscrapers or crafting intricate metal art, understanding this technology empowers you to achieve stronger, more reliable results.
