Precision Manufacturing for Premium Badminton Rackets

2025-05-16

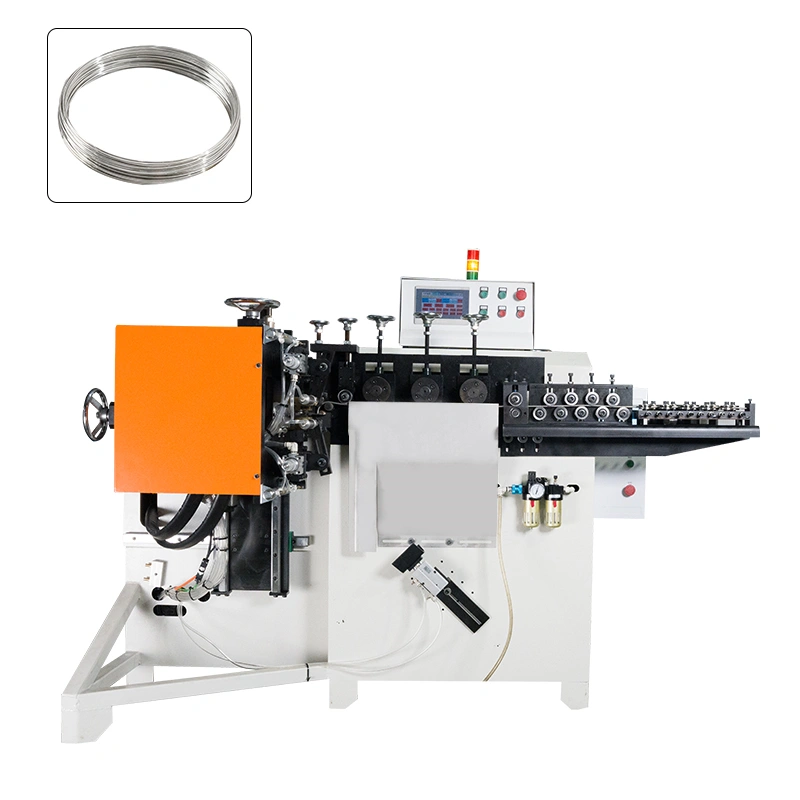

As badminton gains popularity across the globe, the demand for high-quality racket frames continues to rise. Foshan Jinchun Mechanical Equipment Co.,Ltd. leads the transformation with its independently developed 5-Axis Ring Making Machine (Model 8-16). Now implemented by a leading sports manufacturer in Ningbo, Zhejiang, this machine delivers 20 pieces per minute with ±1mm circular precision, setting a new benchmark in the sports equipment industry.

This advanced solution is ideal not only for the sports sector, but also for small 2D CNC iron wire bending machine manufacturers, as well as companies involved in bender ring making forming welding welder processes across multiple industries.

⚙️ Built for Precision, Engineered for Performance

Specially tailored for racket ring production, this machine is capable of processing iron wire with diameters from 1.0mm to 3.0mm, forming rings from 80mm to 850mm, and adapting perfectly to all racket frame specifications.

At the heart of the machine lies its 5-axis synchronized motion system. By using an encoder to read real-time wire feed data, and a microcontroller to calculate wire length and shape, it offers a fully automated “parameter-in, product-out” operation.

Key Features & Specs:

High-Speed Production: Operates at up to 20 meters per minute, powered by a 7.5kW hydraulic motor with a 125ml/min hydraulic flow rate for consistent high-load performance

Smart Control: Integrated 1000-line high-resolution sensor + programmable logic controller (PLC) enables seamless switching between manual and automatic modes

Wide Wire Compatibility: Supports iron wire from 0.5mm to 6.0mm in diameter; operates at 0.3–1.2MPa hydraulic pressure

Failsafe System: Features automatic material break detection with shutdown, helping reduce scrap rate and maximize efficiency

Real-World Results: Higher Efficiency, Better Quality

In actual production use by our Ningbo-based client, the machine has shown exceptional adaptability:

Flexible Production: Compatible with round, flat, and square wires, meeting diverse design needs for racket frames

Cost Efficiency: Reduces manual labor through automation, significantly lowering per-unit costs

Fast Delivery Capability: Competitively priced at around ¥4X,XXX (tax and freight included), offering unmatched ROI and faster market responsiveness

Whether you’re a bender ring making forming welding welder, or a 2D CNC iron wire bending machine manufacturer, this machine enables end-to-end upgrades in both output and quality.

Smarter Manufacturing Starts Here

Driven by innovation, Jinchun’s 5-axis ring machine integrates:

A smart PLC control system

Stepper motor-driven wire feeding

Full-process digitization: from wire input to shape forming to quality inspection

Dual hydraulic safety with relief and pressure valves, enabling stable performance in complex working environments

Trusted by 300+ Companies in 20+ Countries

As a national high-tech enterprise in the field of industrial automation, Jinchun is committed to helping clients boost productivity while reducing operational costs. Our 5-axis ring forming machine is already delivering measurable value for over 300 manufacturers across more than 20 countries.

Let Jinchun help you take your production to the next level with reliable, intelligent, and precision-driven equipment.
