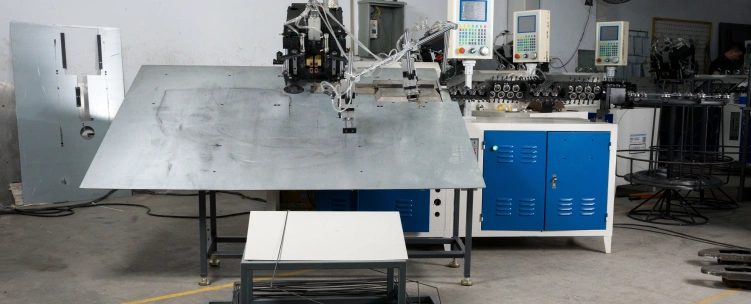

2D CNC Iron Wire Bending Machine – Precision Forming Solution for Rectangular Lantern Frames

When it comes to producing rectangular lantern frames or wire lampshades with complex geometric shapes, precision and consistency matter. Traditional manual or semi-automatic fabrication often struggles with inconsistent forming and low productivity.

Introducing the Jinchun 2D CNC Wire Bender — a powerful all-in-one solution tailored for metal wire forming. Specially customized for a client in Xingtai, Hebei, this machine enabled scalable mass production of rectangular iron wire lampshades, redefining efficiency in the lighting hardware industry.



Key Features & Performance Advantages

Our advanced 2D CNC iron wire bending machine integrates wire straightening, bending, and cutting in a fully automated workflow. Built to meet the high standards of ring making, frame forming, and precision welding, it's the ultimate choice for lighting frames, decorative metalworks, and hardware accessories.



✅ Highlights:

Broad Compatibility:

Processes round wire, flat wire, and square wire with lengths of 3–5m (softened standard), adaptable for various product designs.

High Precision Bending:

Bending accuracy: ±0.5mm

Feeding precision: ±0.5mm

Achieve seamless assembly and geometric consistency in every piece.

High Production Efficiency:

Max bending speed: 500 RPM

Supports 4000 data groups & 300 programmable steps

Easily handles complex and custom wire forms.

Stable Servo System:

Equipped with top-grade Chinese ORIENTAL servo motors, including:

3.8kW continuous wire feed

1.0kW bending power

1.0kW cutting unit

Built for long, stable operation.



Advanced Wire Processing:

18 straightening wheels + 9 guiding wheels

Built on INRIS-C12 tech

S3011/3I precision-ground threaded mold cores

Ensures smooth wire feeding and perfect shaping.



Application Success Story – Lantern Frame Production in Xingtai, Hebei

To meet rising demand, a lantern frame factory in Xingtai upgraded their outdated production setup with our 2D wire bender. The results speak for themselves:

Rapid Production Start:

Seamless switch from sampling to mass production – only 10–15 minutes per batch.

Smart Footprint:

Compact size (2.4 × 0.9 × 1.6m), weight 800kg – saves workshop space.

Localized components reduce maintenance and spare part costs.

Efficient Operation:

Supports modular programming

Configurable for 17–15 units/min based on 200×200mm product specs

Minimizes manual labor input



✅ Achievements:

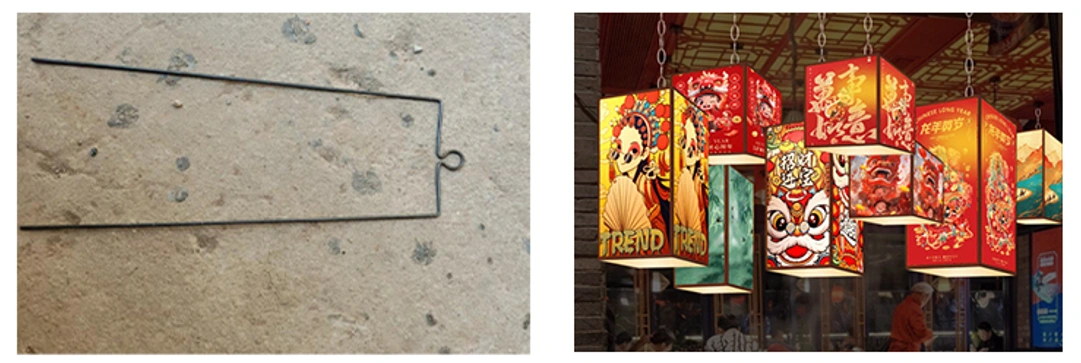

Enabled mass production of rectangular iron wire lampshades

Product pass rate increased to over 98%

Handles ±180° multi-angle bending and 360° spacing direction adjustment

Equipped with 4 pneumatic valves and 3 solenoid valves for smooth and safe operation



⚙️ Technical Optimizations for Complex Forming Tasks

Jinchun's 2D CNC wire forming machine goes beyond standard specs — it’s engineered to handle intricate wire geometries and demanding workflows.

Smart Straightening System:

18-wheel setup using INRIS-C12 tech

Effectively removes wire stress and improves flatness

Precision Mold Cores:

Made from wear-resistant S3011/3I material

Maintains tight tolerance (5φ–60") over long cycles

Power & Cooling Integration:

380V 3-phase input, standard industrial power ready

Linked up/down switches for synchronized bending precision

Quick Adjustment System:

Built-in auto adjustment module allows rapid tooling change. Even when processing 8mm iron wire, the machine maintains ±0.5mm accuracy.



Why Choose Jinchun Machinery

As a leading small 2D CNC iron wire bending machine manufacturer, Jinchun provides cost-effective, high-performance, and custom-engineered forming solutions trusted by factories across lighting, home décor, and hardware industries.

With Jinchun, You Get:

Expert Engineering Team

From consultation to maintenance – full technical support.



️ Customizable Solutions

Machine parameters can be tailored to fit your exact product needs.



High ROI Equipment

Durable build, low maintenance, fast investment return.



Ready to Scale Your Production Let’s Talk!

The Jinchun 2D CNC wire bender delivers unmatched performance and long-term value for every metal shaping project.
