What Is a 2D Wire Bending Machine? How Does It Efficiently Produce Fan Guard Handles from 2–6mm Wire?

When it comes to manufacturing fan guard handles, ensuring both precise bends and high-volume output with 2–6mm wire is critical. In this niche but essential manufacturing process, the small 2D CNC iron wire bending machine has emerged as the go-to solution for accurate forming, automated control, and rapid production.



In this article, we explore a real-world application from Jinchun Industrial Automation, showing how its wire bender transforms the production of fan handle components with efficiency, stability, and flexibility.

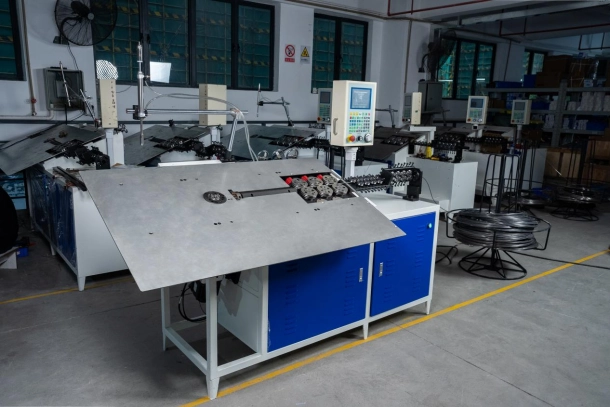

What Is a 2D CNC Wire Bending Machine?

A Smart Machine That Redefines Wire Forming Precision

A 2D CNC wire bender is an automated machine that forms wire into complex 2D shapes through programmable servo motion and high-precision guide rails. For parts like fan guard handles, it offers two distinct advantages:

Versatile wire compatibility: Processes round, flat, and square wires from 2–6mm in diameter. Ideal for producing handles of varying shapes, sizes, and materials.

Accurate, programmable bending paths: A 4-axis servo system (X/Y positioning, R-axis rotation, Z-axis feeding) delivers ±180° bend angles and ±0.1mm positioning accuracy, ensuring a perfect fit with fan guard assemblies.



In Jinchun’s implementation, the machine uses a 380V three-phase supply, 0.6MPa air pressure, and a dual-drive setup (2.4kW wire feeder + 8.7kW cutting motor) for uninterrupted, industrial-grade performance.



Why Use a 2D CNC Bending Machine to Mass-Produce Fan Guard Handles?

Three Ways It Outperforms Traditional Methods

✅ High-Speed Production to Meet Demand

Manual and semi-auto processes often take 30+ seconds per unit with poor repeatability. The Jinchun 2D bender runs at 10–15 pieces per minute, over 5× faster, making it ideal for mass orders in regions like Jiaxing, Zhejiang where fan manufacturing is highly concentrated.



✅ Full Automation to Reduce Labor

From feeding and forming to cutting, the entire process is controlled via a PLC touchscreen interface. No more 3–5 operators — now just one is needed to supervise. Standard RVV 200m cabling and one-touch operation keep things simple and efficient.



✅ Flexible Setup for Order Variability

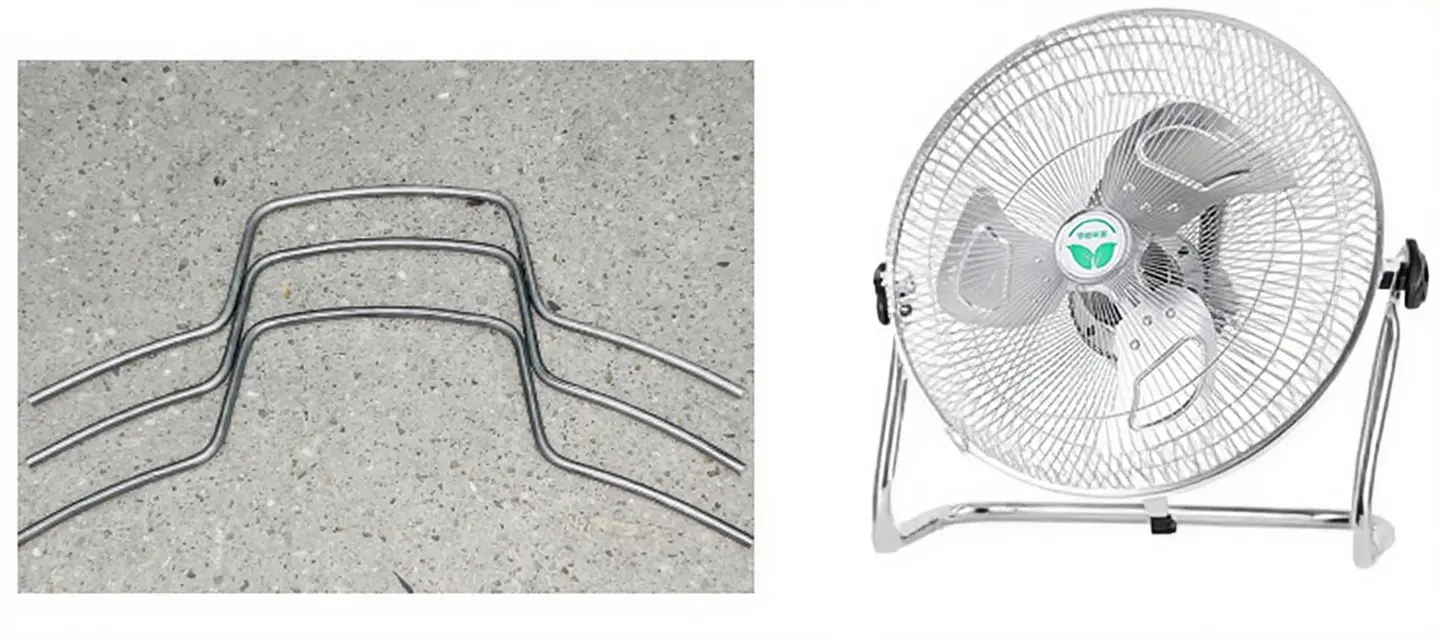

The machine stores 2000+ movement programs. Easily switch between various handle shapes — such as the three standard fan handle profiles used by customers in Zhejiang — without mold changes or long downtimes. Tooling switchovers take under 2 minutes.



How Does the Bender Mass-Produce Fan Guard Handles?

Step-by-Step Breakdown of the Process

1. Preprocessing: Wire Feeding & Parameter Setup

Tension Control: An electromagnetic clutch regulates feeding tension, preventing deflection caused by inconsistent wire hardness.

Program Import: Import DXF drawings via a 7-inch touchscreen. Define up to 9 bends per piece, set precise angles (±180°), and customize the bending order — e.g., bend the 90° fixed end first, then 120° for the connector.



2. Forming: Multi-Axis Synchronized Bending

Precision Molds & Motion: Forged 45# steel bending dies (HRC58–62) ensure uniform force and clean bends. Linear guides with ±0.1mm accuracy and R-axis servo motor (0.01° resolution) maintain consistent curvature — critical for 4mm diameter handle alignment.

Dynamic Compensation: Real-time encoder feedback adjusts for accumulated tolerance. If deviation exceeds 0.2mm, the system automatically corrects the next bend, ensuring zero cumulative error.



3. Post-Processing: Quality Control & Material Handling

Optional Visual Inspection: Integrated cameras check for burrs, dimensions, and angle accuracy. Over 99.8% yield reported in production runs.

High-Speed Cutting: HSS (high-speed steel) blades cut at 0.3s per stroke. A vibrating parts feeder enables continuous automatic unloading — creating a seamless forming-welding-to-packaging loop.



Why Jinchun’s Solution Adds Value Beyond the Machine Itself

✔ Industry-Targeted Optimization

Need strong but lightweight handles? Jinchun offers process kits for small-diameter, high-tensile bending — e.g., 2mm wire handles with post-bend tensile strength ≥300N, without over-compression or distortion.



✔ Localized Support, Faster Delivery

With regional teams across Zhejiang and Guangdong, on-site service response is available within 4 hours — as proven by the Jiaxing deployment, where the machine went live immediately to fulfill new orders.



Conclusion: From Manual Labor to Intelligent Manufacturing

As the production of fan guard handles shifts from operator-driven to data-driven, the 2D CNC wire bending machine becomes more than a tool — it’s a flexible, programmable, precision-controlled smart unit. Backed by Jinchun’s 15+ years in automation, this machine gives manufacturers a competitive edge in quality, speed, and scalability.



The real-world data speaks clearly:

300% daily output increase

Defect rate reduced to <0.8%

Whether you’re producing standard fan handles or custom bent parts, Jinchun’s small 2D CNC iron wire bending machine — trusted by top manufacturers — is your ideal choice for consistent performance and scalable production.



Interested in a custom solution?

Contact Jinchun Mechanical Equipment today — a leading name among wire bender, ring making, forming, welding, welder machine manufacturers — to get tailored quotes, tech consultations, and sample programs.

Every bend matters. Every weld performs. Precision starts with Jinchun.
