How Does 3D Wire Rotating Bending Machine Mass-Produce Custom Kitchen Wire Hooks from 2–6mm Iron Wire?

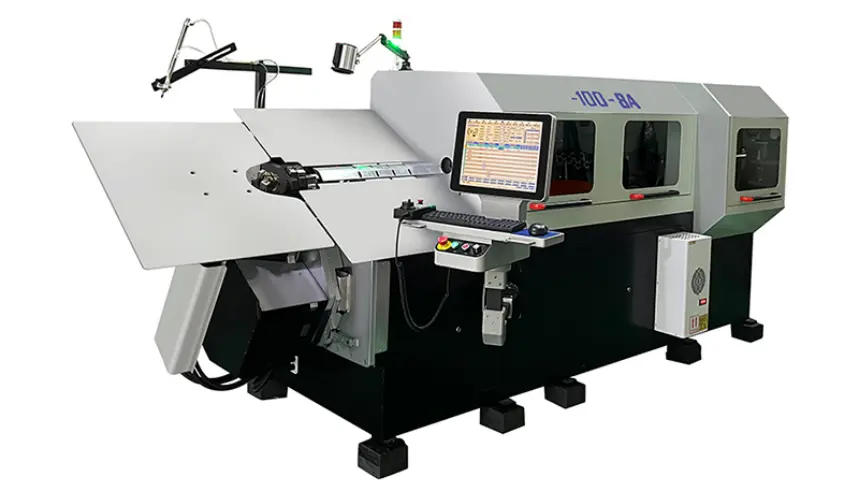

In the kitchenware industry, producing custom-shaped hanging hooks often comes with challenges in precision, speed, and flexibility. Manual fabrication is not only labor-intensive but also limits scalability. That's why Jinchun Industrial developed the 3D wire rotating bending machine — an automated, high-performance solution specifically engineered for 2–6mm wire forming.

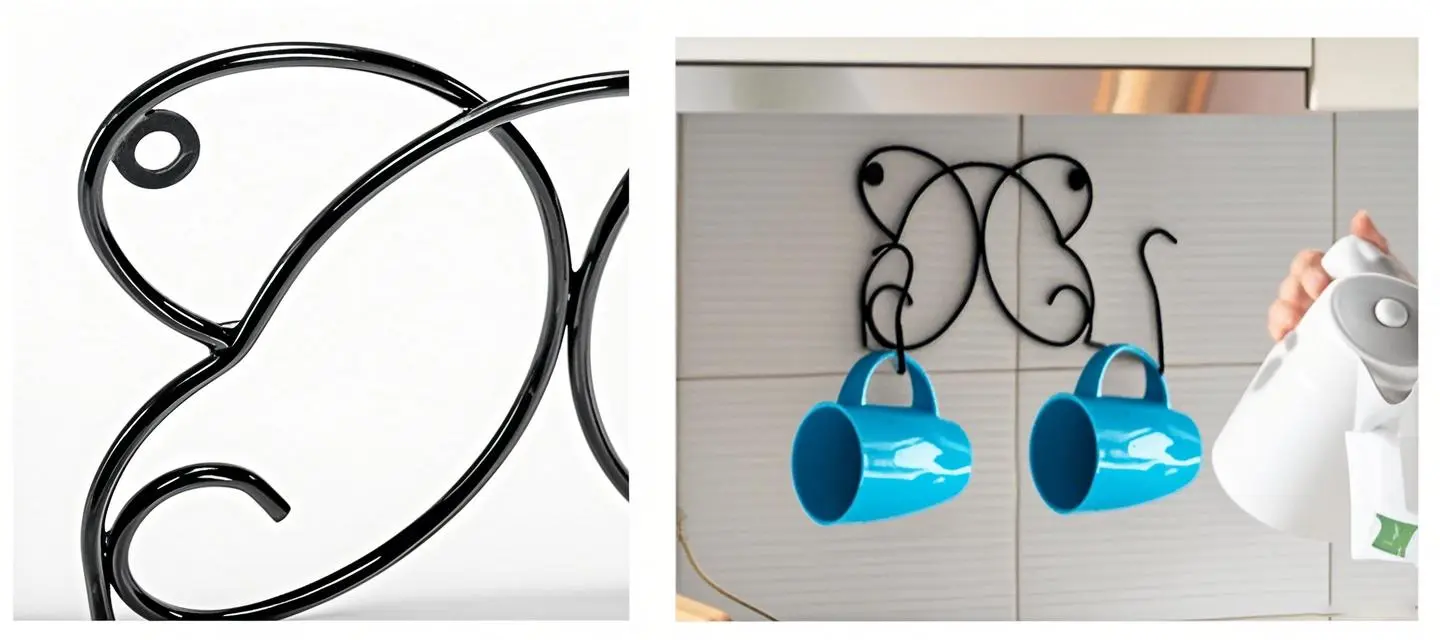

With advanced multi-axis motion control and 3D wire rotation technology, this machine can accurately twist, bend, and form wire into complex spatial shapes in a single operation. Whether it's load-bearing lid hooks, multi-tier spice rack hangers, or artistic storage hooks, this machine delivers consistent results — all without the inefficiencies of traditional multi-step processing.



Why Is the 3D Wire Bending Machine Ideal for Kitchen Hook Production?

✅ Precision That Goes Beyond Traditional Bending

Kitchen hooks must meet high safety and visual standards. Even slight angle deviations can cause imbalance, and wire surface damage ruins aesthetics. Jinchun’s 3D bender uses Taiwan Hiwin ball screws and high-torque servo motors (2.7kW feeding + 2.0kW rotation) to deliver ±0.1mm feeding accuracy and tight multi-axis angle control. The result? Every hook matches the original design in both appearance and structural performance.



✅ Mass Production Speed That Meets Market Demands

This CNC machine outputs 6–8 units per minute, significantly faster than manual bending. With 10,000 program memory slots, switching between hook types is as easy as loading a preset — no mechanical reconfiguration needed. This makes it perfect for meeting e-commerce surges, trade show orders, or fast batch reconfigurations.



✅ Full Automation Cuts Labor and Downtime

With 8 core modules covering feeding (40m/min), rotation (1.5kW), bending, and cutting (1.0kW), the machine builds a closed-loop production line. Compared to semi-automated tools, it reduces manual labor by over 30%. Features like 20kVA stable power supply and intelligent overload protection make it a reliable long-term investment for any wire forming business.



How Does It Fully Automate Kitchen Hook Production?

Let’s take a curved, load-bearing kitchen hook as an example. The machine processes each unit in three core stages:



1. Wire Preparation & Feeding

Supports 2–6mm iron wire (commonly used in kitchen hooks)

18 precision straightening rollers eliminate stress and ensure <0.2% deviation

Length-specific auto-feeding (e.g. 150mm, 200mm), controlled via encoders to avoid feed errors



2. 3D Multi-Axis Bending

Rotation Module: Dual-axis twist (total 2.5kW) allows 0–180° movement — perfect for “L”, “U”, “S” shaped hooks

Bending Module: Servo-powered for gradual pressure control, preventing springback and ensuring tight 3D hook angles

Real-Time Motion Sync: All axes communicate over bus systems — feeding, bending, and twisting act in sync to avoid wire stretching or wrinkling



3. Cutting & Quality Assurance

High-speed alloy cutting system ensures burr-free ends with ±0.5–5mm length accuracy

Optional vision-based quality inspection module auto-detects deviations and rejects faulty items in real-time

Factory-tested to maintain a ≥99.8% qualified output rate

Jinchun 3D Wire Bending Machine: The Smart Manufacturing Engine for Kitchenware Brands

A recent case study from a kitchenware company in Bengbu, Anhui shows this machine boosted single-shift output by 40%, and halved delivery cycles. Beyond hardware performance, it offers a complete smart manufacturing experience:



➤ Bilingual Interface:

Chinese/English system supports international teams; new operators can program independently after just 2 hours of training.



➤Versatile Application:

Easily switch between kitchen hooks, furniture handles, building hardware, and even automotive wiring harnesses — making this machine a smart investment for multi-category production lines.



For kitchenware businesses that demand both efficiency and precision, this is more than just a forming tool — it's your competitive edge in the evolving smart factory era. From delicate 2mm wire hooks to heavy-duty 6mm structural rods, Jinchun proves how automated bending can redefine the limits of small wire part production.



Technical Specs

Total Power: 10.7kW

Machine Size: 3.45m × 1.85m × 1.45m

Power Supply: 380V / 50Hz

Ready to Upgrade Your Wire Forming Process?

Whether you're a small 2D CNC iron wire bending machine manufacturer or expanding into ring making, forming, or welding, Jinchun’s 3D bending solution delivers unmatched precision, flexibility, and scale.

Contact us today for a quote, demo, or custom consultation. Let’s build smarter — together.
