What Is a 2D Wire Bending Machine and How Does It Efficiently Handle Flat Iron Frame Production for Lightning Rods?

In the field of lightning protection engineering, the structural frame of a lightning rod plays a crucial role in safely directing electric currents into the ground. As such, its strength, precision, and consistency are vital to ensuring safety in extreme weather conditions. Especially for flat iron frames measuring 203mm or 254mm, high bending accuracy and zero deformation during processing are non-negotiable. This level of requirement demands highly specialized bending machines that most conventional systems fail to meet.

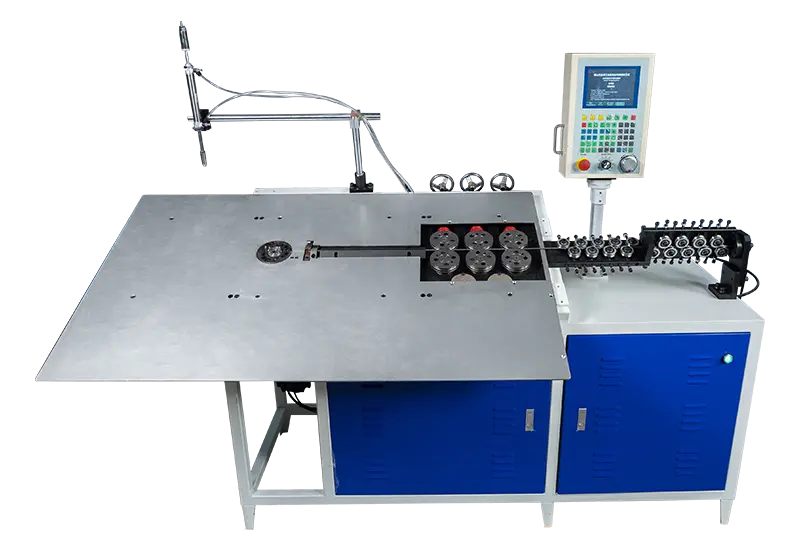

That’s where Jinchun’s small 2D CNC iron wire bending machine comes in — a cutting-edge solution tailored for precise and efficient production of flat iron lightning rod frames. Going beyond traditional machines that only handle round wires, Jinchun’s 2D wire bender has become the go-to equipment for manufacturers seeking reliability, speed, and quality.



Why Traditional Equipment Fails to Meet the Demands of Lightning Rod Frame Manufacturing

Lightning rod frames must endure harsh environments and guarantee structural stability, corrosion resistance, and electrical conductivity. When working with flat iron, especially in 203mm and 254mm sizes, challenges arise:

Thin but wide material is prone to cracking or warping under uneven force.

Even slight angle or dimension deviations can compromise installation accuracy and protective function.

Batch consistency is critical, with tolerances often under ±0.1mm and angle deviations no more than ±1°.



Most standard bending machines—built for round wires—struggle here. Poor clamping, deep surface imprints, or material slippage result in high rejection rates. However, Jinchun, a trusted small 2D CNC iron wire bending machine manufacturer, has re-engineered its solution specifically for flat bar applications.



How Jinchun’s 2D CNC Bending Machine Solves the Flat Iron Challenge

1. Custom-Engineered Tooling System – Zero Surface Damage Guaranteed

The Jinchun 2D bender is equipped with dedicated flat iron molds designed specifically for 203mm and 254mm frame sizes. Features include:

Polished clamping grooves that reduce surface friction by 40%, ensuring stable material feed without lateral slip.

Precision-calibrated forming dies that eliminate stress concentrations and preserve material integrity.

Test results confirm that processed frames achieve a surface roughness of ≤Ra1.6μm — smooth, deformation-free, and perfectly aligned for high-strength lightning protection assembly.



2. Intelligent CNC Control – Full Precision at Every Step

Powered by a full closed-loop servo system, this small CNC bender provides:

Real-time monitoring with positioning accuracy of ±0.05mm.

Intuitive touch-screen interface to input wire sizes, angles, and batch volumes.

Seamless switching between complex shapes like L-bends or arc transitions, reducing setup time to under 3 minutes.

Whether you're doing ring making, forming, or welding frame assemblies, the intelligent system ensures speed and accuracy with no repeated calibration needed.



3. High-Speed Performance – Productivity Without Compromise

Thanks to its all-steel chassis and direct-drive servo motors:

Output reaches 5–8 pieces per minute, surpassing standard machines by 60%.

Handles flat iron up to 25×4mm with enhanced bending force and reduced energy consumption (30% lower than hydraulic models).

Field data from a client in Yangjiang, China shows monthly capacity increased by 40%, with a consistent 99.8% pass rate.

This makes the Jinchun 2D CNC machine an ideal solution for scaling production without sacrificing quality.



Why Manufacturers Choose Jinchun – From New Orders to Long-Term Trust

When a lightning protection company says “New order, new machine,” they’re really talking about the need for versatile, scalable production solutions. The Jinchun 2D wire bending machine:

Supports adjustable tooling for flat iron widths from 10–30mm and thicknesses from 1–5mm.

Is modular—easily upgradeable for complex shapes (U-bends, special contours) without replacing the base unit.

Offers comprehensive 24/7 technical support, including layout planning, operator training, mold maintenance, and remote diagnostics.

It’s not just a wire bender — it’s an investment into long-term productivity and lower operational risk.



Final Thoughts: Redefining Flat Iron Frame Standards for Lightning Rods

Jinchun’s small 2D CNC iron wire bending machine is more than just a forming tool — it’s a smart, scalable manufacturing solution that transforms how flat iron lightning rod frames are produced. With unmatched precision, output, and versatility, it enables your team to focus on what matters most: reliability and safety in every build.

Whether you're fabricating simple rectangular rings or custom flat iron skeletons, Jinchun gives you the edge in bending, forming, welding, and quality assurance — all from a single platform.

Ready to elevate your lightning protection manufacturing? Partner with Jinchun today — your trusted 2D CNC wire bending machine manufacturer for future-proof production.
