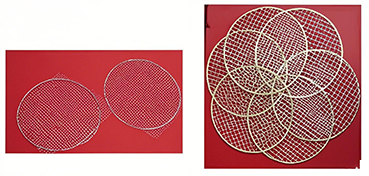

What Is a Korean BBQ Grill Wire Frame, and Why Does Its Production Demand Such Precision Equipment?

Korean BBQ has become a global culinary trend, and at the heart of every grill lies a key component — the wire frame. This frame isn’t just a structural support; it directly touches food, making its quality and craftsmanship critical for safety and user experience. Built from 2–6mm stainless steel wire, these frames must withstand high heat, resist corrosion, and deliver consistent shape and weld precision.



This level of performance isn’t achievable with traditional machinery. High-end manufacturers now rely on small 2D CNC iron wire bending machine bender ring making forming welding welder solutions to handle the delicate balance of strength, aesthetics, and efficiency.



Why Has the Jinchun Ring Making & Welding Machine Become the Game-Changer in Wire Frame Manufacturing?

As the demand for Korean BBQ grill wire frames shifts from "usable" to "premium, stylish, and mass-produced," legacy machines fall short in speed, consistency, and labor efficiency.

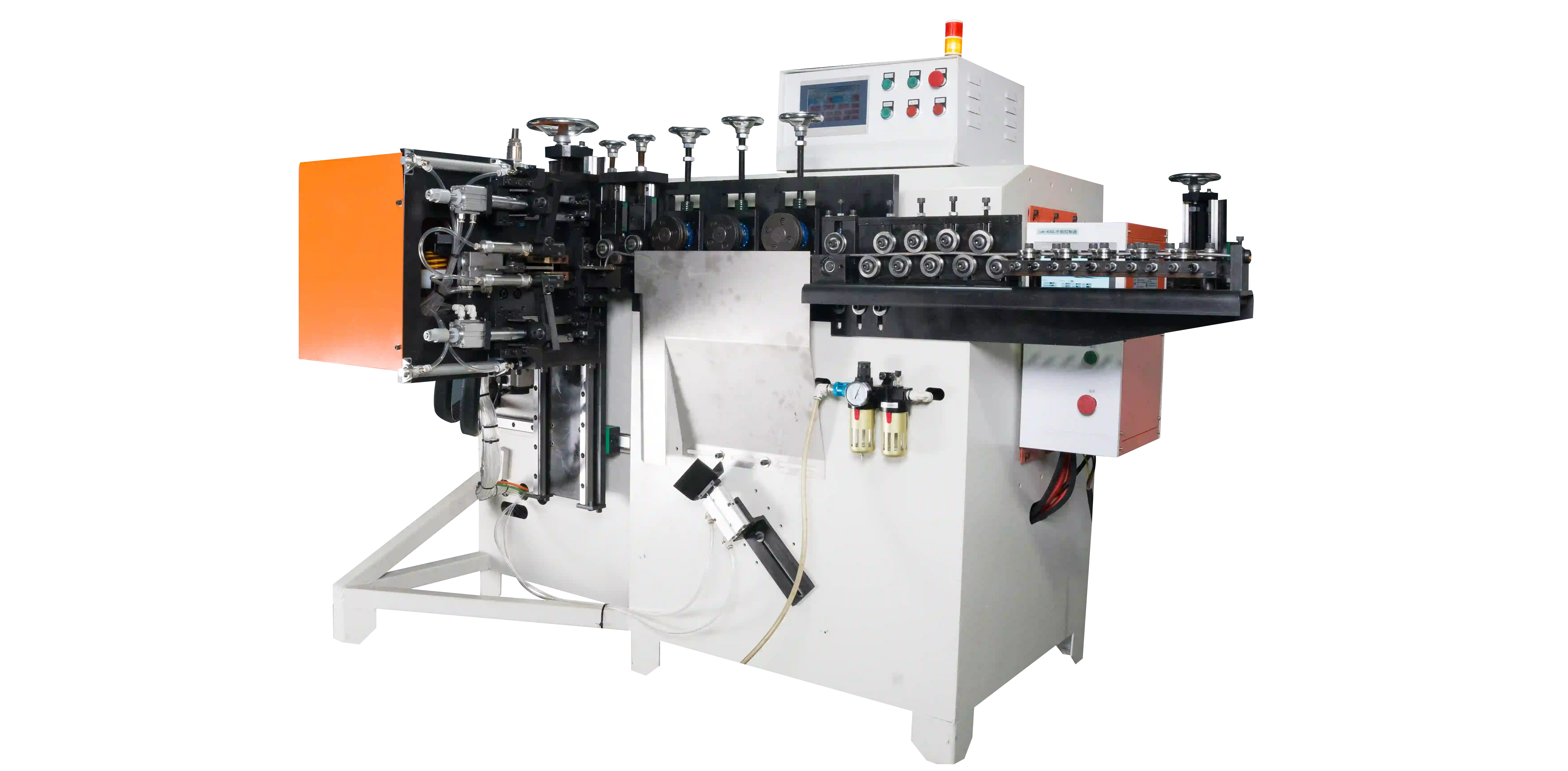

Jinchun’s integrated small 2D CNC wire bender and welder machine solves these challenges with three transformative advantages:



✅ Full Automation to Eliminate Manual Bottlenecks

Combining wire straightening, bending, ring forming, and butt welding in one system, this machine supports continuous processing of 2–6mm stainless steel wire — all without operator intervention. The fully automated servo feeding system ensures wire accuracy, enabling a fast 35–40 seconds cycle per piece — increasing output by over 40% compared to traditional methods. Ideal for high-volume producers targeting 10,000+ pieces per day.



✅ Millimeter-Level Precision for Food-Safe Welds

Outfitted with a PLC controller and 1.5kW high-precision servo motors, the machine delivers ±0.02mm wire tolerance and ≤0.1mm welding misalignment. The high-frequency inverter welding system (20–40kHz) provides strong, oxidation-free, burr-free joints — essential for food-contact surfaces. This is what elevates a BBQ grill wire frame from functional to professional-grade.



✅ Flexible Design for Multiple Shapes and Custom Sizes

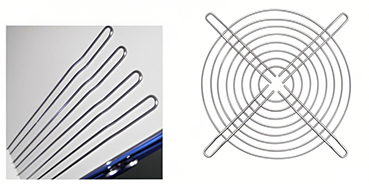

Whether your designs require simple round frames or more complex floral and hexagonal patterns, the Jinchun bender can do it all. With support for up to 300mm diameter and ±2° servo angle adjustments, mold changes are quick and forming consistency reaches up to 99.5%. This flexibility is a must for modern grill manufacturers offering custom or high-aesthetic designs.



How Does This Machine Deliver Full-Chain Efficiency — From Wire to Welded Frame?

Each step of the Jinchun wire bending and welding system is engineered for maximum performance:



➤ Wire Pre-Treatment: Auto Straightening + Intelligent Feeding

The process begins with wire straightening using 12+ precision rollers, removing residual stress. A servo clamping system (500N force) feeds wire at 0.1–1.0m/min with high stability, preventing bending issues during forming.



➤ Ring Forming: Perfect Circles Every Time

Using hardened HSS molds and servo-driven planetary rollers, the system forms wire into rings from 30–300mm in diameter. Tension sensors (±0.1N accuracy) ensure the ring's roundness deviation stays within ≤0.3mm — critical for clean welding.



➤ Butt Welding: High-Frequency, Clean Finish

Dual-electrode HF welding (adjustable 2–6kg pressure) completes the ring within 0.05 seconds. Adjustable welding parameters and a 0.4–0.6MPa air-cooled system keep the weld zone at 180–220°C, preserving stainless steel integrity. After welding, a nylon deburring roller (1200rpm) ensures a surface roughness of Ra ≤1.6μm — no sharp edges, no safety risks.



➤ Output & Integration: Ready for the Next Step

Finished wire frames are automatically sorted via conveyor into bins or stacks, seamlessly connecting with downstream operations like washing, polishing, or plating. An onboard fault detection system with HMI display minimizes downtime and maintenance effort.



Proven Results: How Jinchun Technology Reduces Costs & Increases Output

Let’s look at a typical high-volume manufacturer producing 100,000 wire frames per day:

Productivity Boost: Up to 20,000 units per 8-hour shift with 4–5 fewer workers.

Quality Consistency: 99.8% first-pass welding success rate, ±0.1mm dimensional tolerance.

Energy Savings: Power consumption of just 1.5kW/h — 30% lower than multi-station machines — and 50% less mold wear.



Conclusion: Why Choose Jinchun? A Smart Solution Built on Deep Process Understanding

As the Korean BBQ grill market evolves from bulk manufacturing to precision-driven branding, Jinchun’s fully automated small 2D CNC iron wire bending machine bender ring making forming welding welder is built to meet the new standard. Whether you're forming basic rings or complex patterns, our machine transforms stainless steel wire into production-ready grill frames with unmatched speed, safety, and style.



➤ Ready to automate your production? Contact us today to get a custom solution or detailed specs. Let’s unlock a new era of smart, efficient manufacturing together.
