What Is a 2D Wire Bending Machine? Why It's the Ideal Solution for Mass-Producing 2–6mm Fish Net Frames — and How It Works

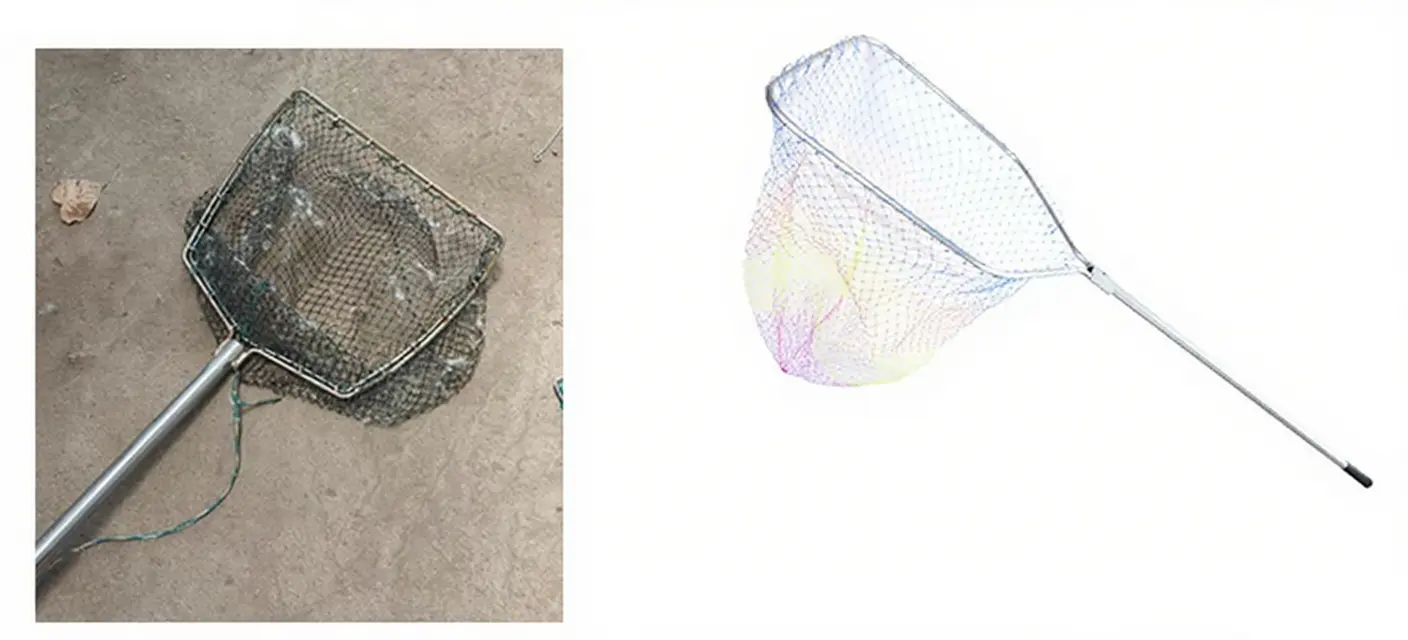

Fishing gear manufacturing, especially for landing nets and throw nets, demands high precision, flexibility, and efficiency in wire bending. The Jinchun Mechanical small 2D CNC iron wire bending machine is engineered specifically for 2–6mm diameter iron and stainless steel wire — delivering automated precision forming, consistent angles, and reliable mass production.



Let’s explore what this machine is, why it solves key challenges in fish net production, and how it enables scalable manufacturing with reduced cost and higher yield.

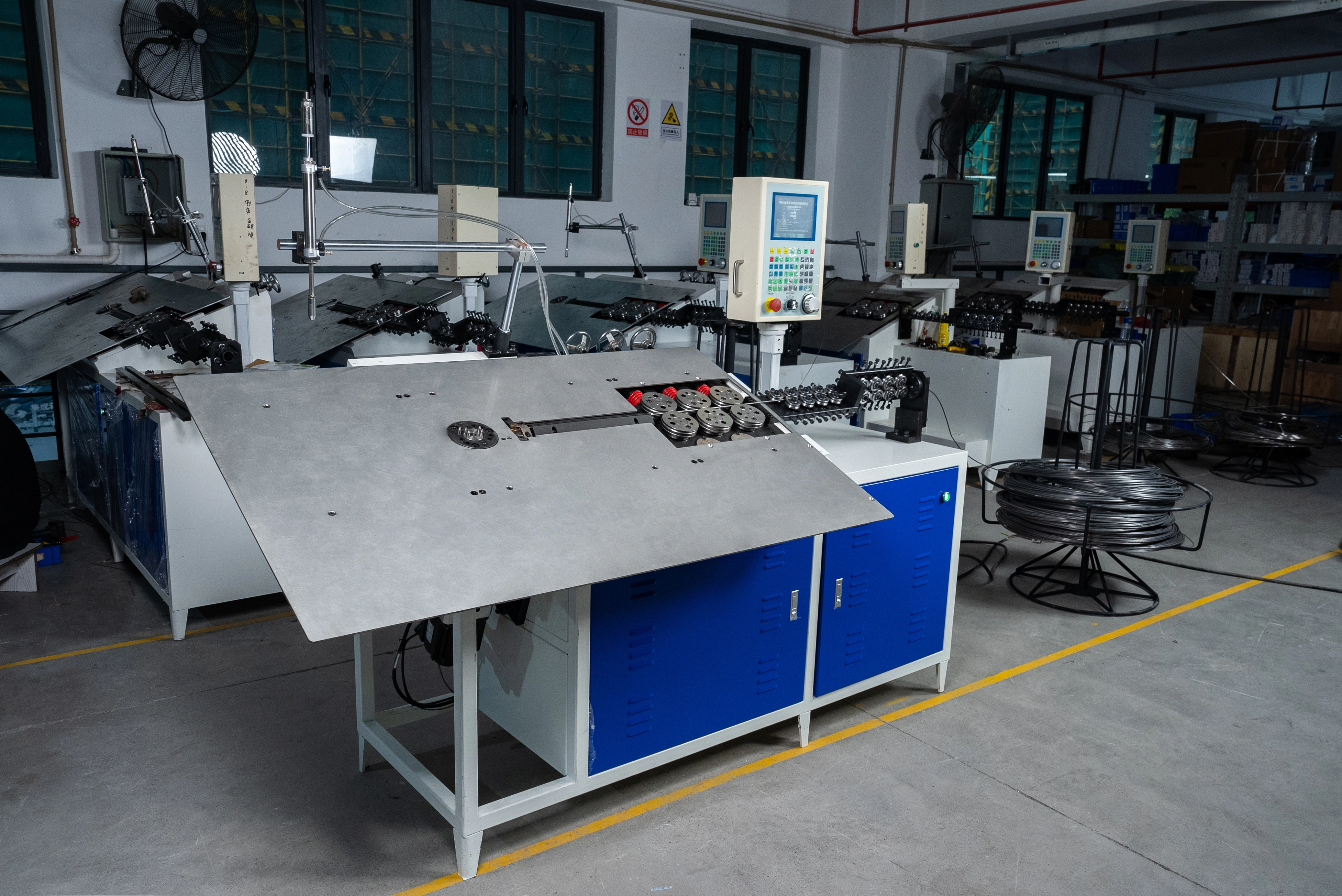

What Is a 2D CNC Wire Bender?

A High-Precision Machine Tailored for Mid-Small Diameter Wire Forming

Unlike traditional benders, the Jinchun 2D wire bender is designed with a modular structure and advanced 4-axis servo control system, enabling fully automated processes — from straight feeding and multi-angle bending, to precise length cutting. This makes it ideal for producing complex fish net structures where geometry and strength are critical.



Equipped with precision guides (SKD61 steel, heat-treated to 58–62HRC), and intelligent trajectory planning, the machine ensures every bend falls within ±0.5° accuracy — providing stable frame geometry and strong joint integrity for professional fishing nets.



Why Choose a 2D CNC Bender for Producing Fish Nets?

Three Core Advantages That Address Industry Pain Points

✅ High-Precision Forming for Complex Net Designs

Fish net frames often require multi-angle bends at connection points or net closures. Manual or semi-auto methods can’t guarantee uniformity.

With servo-driven force and bend angle control, the 2D CNC bender achieves accurate 90° angles, smooth curves, and even 360° rotations — supporting various ring making and frame forming operations without deformation or burrs.



✅ High-Speed Mass Production with Reduced Labor

Production speed: 10–15 pieces per minute

Output per shift: 5000+ units

Efficiency: 3× faster than traditional benders

Staffing: Only 1 operator required for machine monitoring

This full automation significantly lowers labor costs and allows fishing gear factories to meet peak season demand without adding extra shifts.



✅ Flexible Specs for Various Wire & Net Types

The machine supports round, flat, and square wires (2–6mm), and can switch between net models without mold change. With 4000 memory slots for preset programs, operators can instantly load parameters (bend angles, feed lengths, cutting positions) with a single click — reducing downtime and boosting output.



How to Mass Produce 2–6mm Wire Nets with 2D CNC Bending Machines?

Three Key Technologies That Power Smart Production

1. Full Process Automation for “Unmanned” Lines

Feeding System: High-rigidity SKD61 feeding rollers with hard chrome coating, driven by servo motors for consistent tension control — delivering ±0.05mm feed accuracy without slip or stretch

Bending System: 4-axis servo system (X/Y for position, A/B for rotation) supports simultaneous forming and cutting, ideal for complex multi-point net designs

Cutting System: Servo-driven blades + sensors ensure sub-millimeter precision (<1mm), with smooth cuts and no burrs — eliminating the need for post-processing



2. Durability & Stability for Long-Term Use

Core parts (e.g., straightening shafts, feeding wheels) are made from high-grade steel, finely ground and heat-treated to extend wear life by 50%. Enclosed-frame design keeps debris and oil away from moving parts, achieving an MTBF (mean time between failures) of over 8000 hours.



3. Custom Configurations for Different Net Types

Small nets (2–4mm wire): High-speed mode with rapid output

Large nets (4–6mm wire): Upgraded power (2.4kW spindle + 3.7kW cutter) for heavy-duty stability

Complex meshes: Multi-station bending supports simultaneous forming of multiple nodes, reducing handling steps and boosting throughput



Conclusion: From Traditional Fabrication to Smart Manufacturing

For fishing gear manufacturers, switching to the Jinchun small 2D CNC iron wire bending machine is more than an equipment upgrade — it’s a strategic move toward efficiency, quality, and competitive advantage. With unmatched precision, output, and configurability, this forming, welding, and ring making bender helps businesses meet tight deadlines, reduce defects, and lower costs.



Real-world results from fish gear factories in Zhongshan, Guangdong, show:

300% increase in daily capacity

Defect rate reduced to under 0.8%

Whether you're building throw nets, hand nets, or drag nets, this 2D CNC solution is the ideal choice for 2–6mm wire frame production at scale.



Need a customized solution?

Contact Jinchun Mechanical Equipment — one of the trusted small 2D CNC iron wire bending machine manufacturers — for personalized quotes, technical support, and demo videos.

Empower your production with every bend. Precision starts here.
