What is Wire Forming Machines and How Do it Work?

Wire forming is a critical manufacturing process that involves shaping metal wires or rods into precise two-dimensional (2D) or three-dimensional (3D) configurations using specialized machinery. This technique is widely employed across industries such as automotive, construction, electronics, and consumer goods to produce components like springs, clips, brackets, and wire forms. Among the various machines used for wire forming, 2D wire bending machines stand out for their versatility, efficiency, and ability to handle complex geometries with high precision.

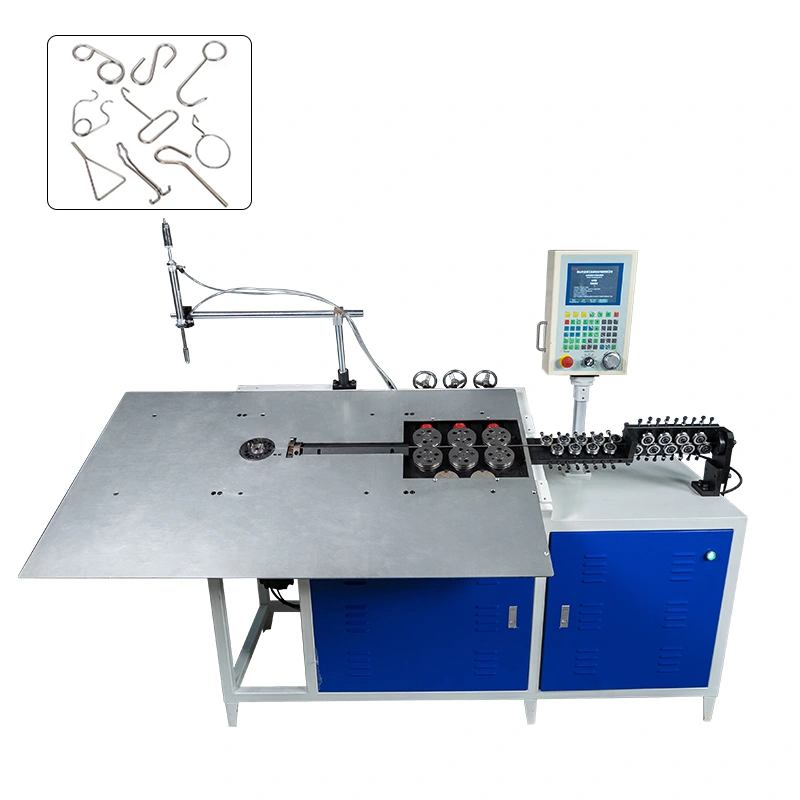

How Does a 2D Wire Bending Machine Work?

A 2D wire bending machine automates the bending process through a combination of mechanical and computer-controlled systems. Here’s a breakdown of its operation:

1. Material Feeding:

   The machine feeds wire material—such as round, flat, or square wire—from a coil or spool. The feeding mechanism, powered by motors, ensures consistent tension and alignment as the wire enters the bending zone.



2. Bending Mechanism:

   Once the wire is fed into position, hydraulic or servo-driven bending dies apply force to deform the wire according to programmed specifications. The machine’s bending motor (rated at 1.5kW) and cutting motor (1.0kW) work in tandem to achieve angles up to ±180° with a maximum bending speed of 300 rotations per minute.



3. Precision Control:

   Operators use a touchscreen interface to input bending parameters, such as angles, lengths, and tooling selections. Advanced PLC systems (like the Chinese-brand ARCUCHI PLC) support multi-language programming, simplifying setup and adjustments.



4. Automation Features:

   Pneumatic systems (equipped with AirTAG components from Taiwan) drive key functions like die clamping and material handling. This automation enhances repeatability and reduces manual intervention, ensuring uniform product quality.



Key Technical Specifications

The 2D wire bending machine boasts robust technical capabilities, as outlined below:

• Wire Compatibility: Handles wire diameters from 2–6mm, suitable for iron, steel, aluminum, and copper.

• Power Requirements: Operates on three-phase 380V electrical supply.

• Performance Metrics:

  • Maximum feeding speed: 24 meters per minute.

  • Bending accuracy: ±0.5mm.

  • Production capacity: Up to 12–15 pieces per minute for a standard 200×200mm box.

• Storage Capacity: Holds 10,000 sets of bending programs and 300 action sequences for batch processing.

• Tooling Options: Includes multiple die sets (SKD11/SKD51 steel, hardness up to 62°) and interchangeable molds for adapting to diverse wire shapes.



Core Components and Configurations

The machine integrates high-quality components to ensure durability and precision:

• PLC and Motors:

  • PLC: ARCUCHI (Shenzhen, China), known for its user-friendly programming and multilingual support.

  • Servo Motors: SANYO or EURA brands (China’s leading suppliers).

• Guides and Screws:

  • Linear guides and ball screws from HIWIN (Taiwan) ensure smooth linear motion.

• Pneumatic System:

  • Three pneumatic cylinders and valves (AirTAG) control die movements and wire tensioning.

Additional accessories, such as uncoilers (included with purchase) and a comprehensive toolset (e.g., bedknives, screwdrivers, hex keys), further enhance usability and maintenance efficiency.



Advantages Over Traditional Methods

1. Speed and Efficiency:

   Automated bending significantly reduces cycle times compared to manual methods, achieving 12–15 parts per minute for standard components.

2. Precision and Consistency:

   ±0.5mm accuracy in both feeding and bending minimizes errors, critical for industries requiring tight tolerances.

3. Versatility:

   Adaptable to various wire materials and shapes, making it ideal for prototyping and mass production.

4. Space-Saving Design:

   Compact dimensions (2800×850×1500mm) and modular configurations allow easy integration into existing production lines.



Applications Across Industries

The 2D wire bending machine serves diverse sectors:

• Automotive: Manufacturing exhaust components, seat frames, and battery terminals.

• Construction: Creating wire mesh, reinforcement bars, and structural frameworks.

• Electronics: Producing connectors, clips, and heat sinks.

• Consumer Goods: Crafting springs, fasteners, and decorative elements.



Conclusion

The 2D wire bending machine represents a pinnacle of manufacturing innovation, combining advanced automation, precision engineering, and flexibility. By leveraging technologies like PLC programming, servo motors, and pneumatic controls, it addresses the demands of modern industries for speed, accuracy, and adaptability. Whether producing intricate wire forms or bulk components, this machine stands as an indispensable asset for businesses aiming to optimize productivity and product quality.
