What Is a 2D Wire Bending Machine? How to Efficiently Manufacture 2–6mm Garage Wall Hooks in Bulk

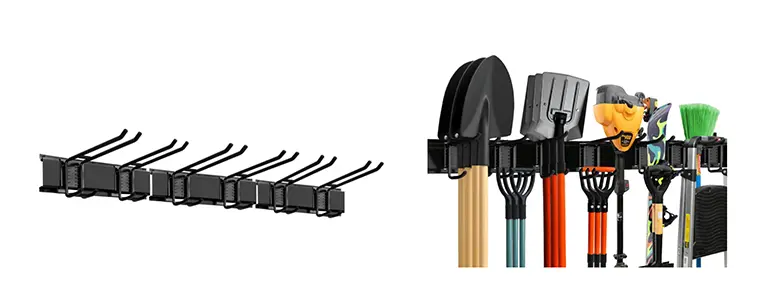

As the demand for home organization and smart storage continues to grow, garage wall-mounted storage hooks have become an essential item for modern households. Known for saving space, providing strong load-bearing capacity, and offering easy access, these hooks rely heavily on the precision and consistency of 2–6mm metal wire forming.



This is where the small 2D CNC iron wire bending machine comes in — especially models like the KG-GX600 from Jinchun Industrial, one of the leading bender and ring making machine manufacturers. Designed for precision, speed, and flexibility, this 2D wire forming and welding solution delivers automated, high-efficiency production for wire hook applications.



Why Choose a 2D CNC Bending Machine for Producing Garage Storage Hooks?

Manufacturing wall hooks from wire presents several challenges:

Wide range of wire diameters (2–6mm) and material types (stainless steel, carbon steel)

Multi-step forming requirements, including bending, punching, grooving

High-volume orders demanding fast setup changes and reliable output

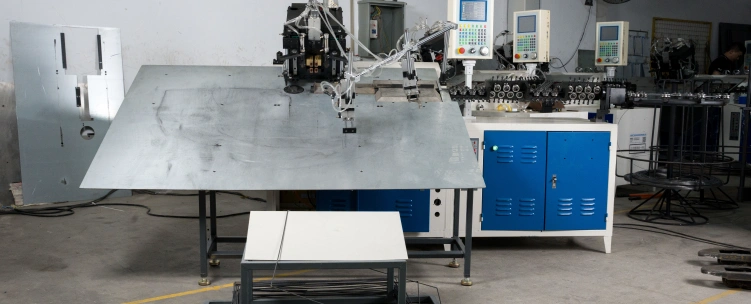

The KG-GX600 small 2D CNC wire bender is engineered specifically for high-precision wire work, offering:



✅ Precision Forming Capabilities

2+1 axis servo drive

X/Y travel: 600/400mm, Z-axis: 150mm

±0.1° bend angle accuracy

Clean surface finish without burrs

Supports wire lengths from 20mm to 1200mm



✅ Intelligent Flexible Production

Stores up to 3000 programs

Touchscreen interface for quick changeovers (within 3 minutes)

No manual mold replacement required

Ideal for custom hook shapes in mixed-batch production



✅ High-Speed Output

Servo-driven cam mechanism

±0.05mm repeat positioning accuracy

Integrated automatic feeding system (≤8 seconds per hook)

Up to 3000 hooks per 8-hour shift

40% higher productivity compared to hydraulic machines



How Does a Small 2D Wire Bending Machine Work? A Step-by-Step Process from Wire to Hook

Using a 4mm stainless steel hook as an example, here's how the production unfolds:



1. Wire Straightening & Cutting

Automatically feeds and cuts wire to precise lengths (e.g., 120mm base + 60mm arm)

Supports stainless steel, galvanized steel, aluminum

No need to change clamps between materials



2. Multi-Stage CNC Bending

Stage 1: Main Body Forming

Uses top-bottom dies and X-axis servo to bend 90° angles

Z-axis holds material to prevent springback

Ensures ±0.1mm edge perpendicularity

Stage 2: Functional Area Machining

Rotates wire to position heads/holes

Integrated punching (3–8mm diameter) or grooving

All done in one setup — no manual repositioning

Stage 3: Edge Finishing

R-rounding (R0.5–1.5mm) to remove sharp edges

Enhances safety and appearance



3. Quality Control & Output

Real-time sensors monitor pressure and displacement

Faults trigger auto-reject with visual/audible alarm

Visual inspection for symmetry, hole spacing, etc.

Final yield rate ≥99.8%, ready for packaging



Why Is Jinchun’s Small 2D CNC Wire Bender the Top Choice for Hook Manufacturing?

A case study from a hardware company in Guangzhou shows how the KG-GX600 wire forming and welding bender transforms operations:

Adapts Quickly to Order Changes

From 2mm micro-hooks to 6mm heavy-duty types

Modular die system switches jobs within 1 hour

Minimizes downtime and waste

Cuts Labor Costs

Traditional process needed 3 operators

Now only 1 person needed to monitor the system

Labor cost cut by 60% per shift

Supports Customization

Custom hook arm curves or dual-hole asymmetry

Import CAD drawings directly to generate bend paths

Sampling time reduced from 7 days to 2 hours



Conclusion: Precision and Efficiency in One Compact CNC Bending Machine

For manufacturers of storage hooks and wire products, the Jinchun KG-GX600 small 2D CNC iron wire bending machine combines unmatched accuracy, flexibility, and output consistency. It’s the ideal solution for both sample development and full-scale production, especially where fast changeovers and customization are critical.



Whether you're producing wire hooks for shelving, automotive accessories, or household tools, this CNC bender, welder, and forming machine delivers the control and quality today’s market demands.



Interested in learning more? Contact Jinchun Mechanical for tailored solutions, custom pricing, and technical support.

Let every bend be a mark of quality. Let every machine power your production forward.
