What Is the Key Machine Behind Efficient Production of Ergonomic Clothing Support Frames—and How Does a 2D Wire Bender Solve the Scaling Challenge?

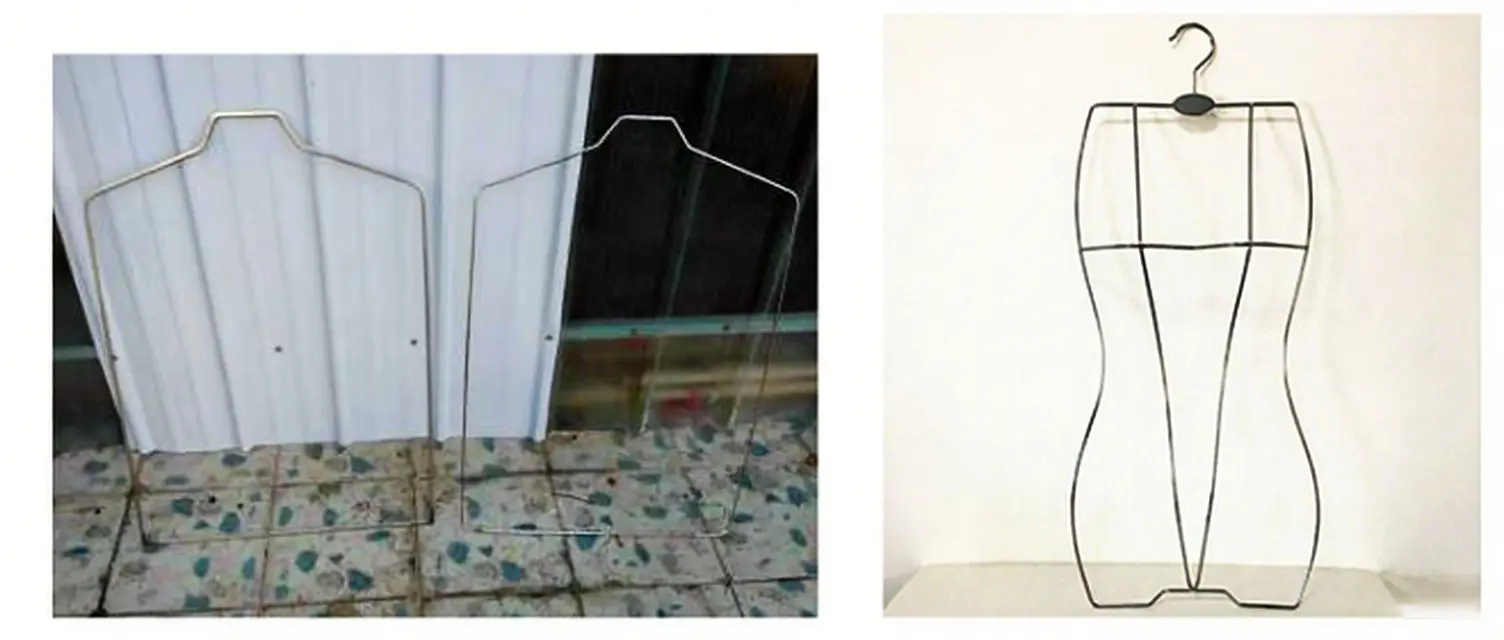

In the fast-evolving apparel accessories industry, human-shaped support frames play a critical role in enhancing garment fit, structure, and comfort—especially in high-end fashion. These metal frames, typically formed from 3–8mm wire, must combine flexibility with structural integrity. However, the rise in high-frequency, small-batch, multi-style orders poses significant challenges for traditional bending methods.



Enter Jinchun Mechanical—one of the leading small 2D CNC iron wire bending machine manufacturers—offering an intelligent solution: a fully automated 2D CNC wire bender engineered to tackle large-scale production of complex wire forms. This all-in-one bending and forming machine redefines efficiency, accuracy, and adaptability in wire ring making, forming, and welding applications.



Why Traditional Equipment Fails Under High Demand—and Why 2D CNC Benders Are the Answer

➤ The Challenge of Scaling Support Frame Production

When daily orders surpass 10,000 units, the shortcomings of manual or semi-automatic setups become painfully clear:

Accuracy Limits: Manual calibration often can’t control bending deviations within ±1°, misaligning with ergonomic design standards.

Low Efficiency: Mold changeovers take 30+ minutes—unacceptable when handling diverse SKUs in fast-fashion cycles.

Process Instability: Human-dependent straightening and feeding cause wire deviation, breakage, and high scrap rates.



Jinchun’s 2D CNC wire bending machine was developed to solve precisely these issues—delivering unmatched control, efficiency, and automation through three core innovations: precision bending, modular programming, and end-to-end automation.

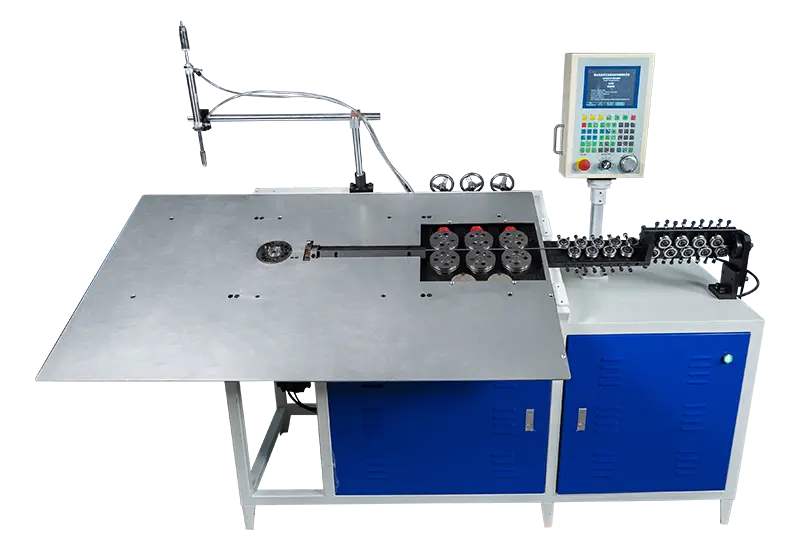

How the 2D CNC Wire Bender Enables Smart, Scalable Manufacturing of 3–8mm Metal Frames

From raw wire to finished garment supports, Jinchun’s 2D bender builds a closed-loop, smart manufacturing system through four key stages:

1. Wire Preparation: 0.01mm Precision Straightening

18 Cr12-grade straightening rollers remove surface flaws and spiral deformation

Maintains straightness deviation under 0.1mm for round, flat, and square wires

Servo-driven feeding system (3 wheels, HRC58–62° hardness) pushes wire at 22m/min with zero slippage



2. Flexible Forming: 300 Pre-Programmed Motion Sets for Any Shape

4-axis servo system (feed + bend + cut + lift) enables full digital control

Easily create arcs, right angles, S-curves, and custom shapes via touchscreen UI

Example: “300° external bend + 15° internal fold” executed automatically

SKD11/51 molds ensure ±0.5° angle accuracy

In-built cutting module completes chamfering in 0.8 seconds, surface finish up to Ra1.6

Auto-ejector separates parts and scrap—no manual sorting needed



✅ Tool-free changeover in under 2 minutes, saving over 80% adjustment time compared to conventional machines



3. Real-Time Quality Monitoring: 99.8% Yield Rate in Live Production

Optional vision inspection system checks arc symmetry, curvature

Items with deviations >±0.5mm are auto-rejected

Built-in self-correction: every 100 units, servo motor parameters are auto-calibrated

In field tests (e.g., Jiaxing, Zhejiang), 8-hour nonstop runs yielded 99.5% pass rate, over 8,000 units/day



How Does Jinchun’s CNC Wire Bender Deliver Real ROI for High-Demand Manufacturers?

For mid-to-large-scale garment accessory producers handling 5+ million units annually, the 2D CNC bender offers compelling value across three dimensions:

✅ Cost Efficiency

Replaces three machines (straightener + bender + cutter) in just 2.4㎡ footprint (2400×900×1650mm)

Lowers energy use by 40%, cuts 2 operator roles—ideal for labor-intensive factories



✅ Flexible, On-Demand Production

Built-in memory stores 4,000 programs

Remote upload/download of design files

Easily handles MOQ as low as 500 units, perfect for short runs and prototyping



✅ Built for Longevity

All wear parts made from heat-treated Cr12MoV steel

3× longer lifespan vs standard molds

Reduces annual maintenance costs by 25% compared to similar models



Conclusion: Redefine Wire Bending Speed, Precision, and Value with Jinchun

As the apparel industry embraces personalization and fast turnaround, the metal support frame is no longer a simple wire part—it’s a precision component of brand value.

With smart control, modular automation, and data-driven flexibility, Jinchun’s 2D CNC wire bender turns 3–8mm wire into consistent, ergonomic support structures—faster, cleaner, and smarter. In one case, a Jiaxing client boosted productivity by 60% and reduced delivery times by 40% within weeks of deployment.

One machine. One team. Million-unit output.

Ready to automate your wire processing with industrial-grade precision?

➤ Contact Jinchun Mechanical today for a custom quote or on-site demo. Let’s shape every wire into a value-driven solution.
