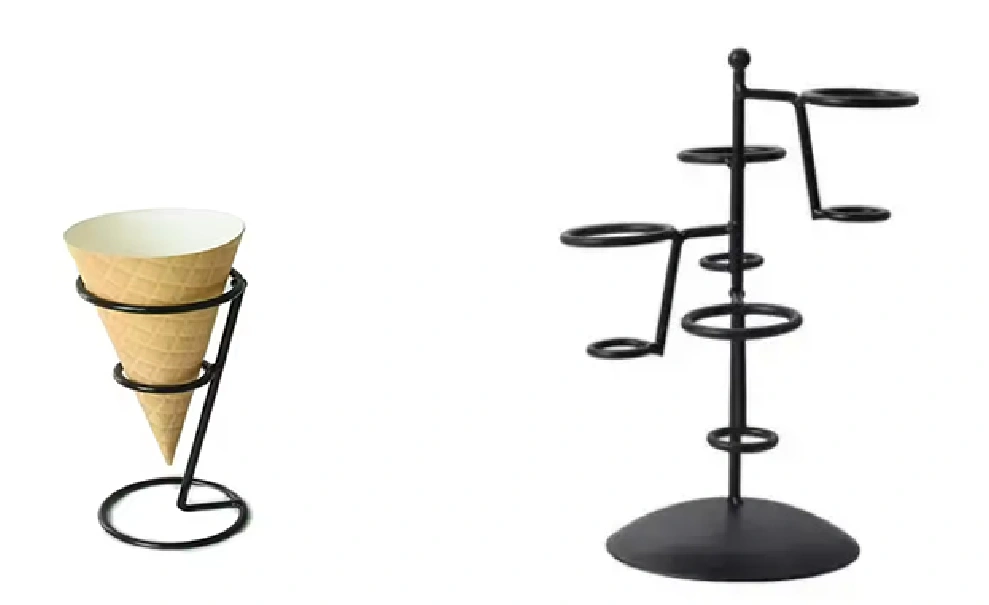

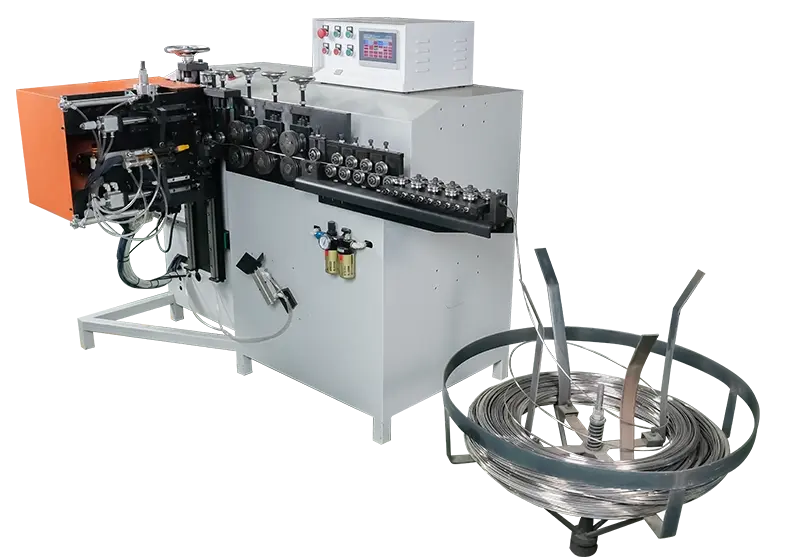

Jinchun 3-8 Ring Making and Butt Welding Machine: High-Speed Precision for Ice Cream Cone Rack Production

Looking for a ring making machine that combines speed, precision, and welding stability? Jinchun's 3-8 Ring Forming and Welding Integrated Machine is built to streamline the production of ice cream cone holders. Whether you're scaling for mass production or switching between product sizes, this wire bender and welder combo helps you reach output targets of 15–20 pieces per minute with consistent quality.

Core Features That Drive High-Efficiency Production

Unmatched Production Speed

Equipped with a 3.8kW servo feeding motor and a 1.0kW cutting motor, this forming and welding machine achieves wire feed speeds of 35 meters per minute. In real-world scenarios, it produces up to 15–18 ice cream cone racks per minute (based on 80mm diameter racks). For larger diameters, output slightly decreases—but remains highly efficient.

The integrated 50KVA welding unit (with 50% duty cycle) supports long hours of continuous operation without performance drop, making it ideal for high-volume orders.

Precision Control You Can Rely On

Circumference tolerance: ±0.3mm — Servo-controlled wire feeding ensures consistent ring diameters

Flatness < 0.5mm — Welded rings maintain optimal planarity for seamless assembly

Ring diameter range: 30–700mm — Supports small to large cone rack production with 3–8mm low carbon steel wire

All-in-One Automation Workflow

From automatic feeding → straightening → cutting → ring forming → welding, the machine completes each cycle in just 3–4 seconds. A combination of 0.6MPa compressed air and 50L/min water cooling keeps operations smooth and continuous.

Flexible Configuration for Ice Cream Rack Manufacturers

Wide Material Compatibility

Compatible with 3–8mm low carbon steel wire, this machine meets both strength and corrosion resistance standards required for food-grade applications. Built-in compensation algorithms automatically adjust dimensions when switching between wire diameters (e.g., 2.5–3mm), ensuring fast calibration.

Adjustable Ring Diameter for Versatile Production

Small cone racks (≤200mm): Up to 20 pieces per minute

Medium-to-large cone racks (400–700mm): Steady output at 15 pieces per minute

Optimized Welding Performance

The 50KVA welder combined with a 50L/min water cooling loop delivers consistent weld strength without overheating. This ensures solid bonding, eliminates weak spots, and extends the lifespan of finished products.

Proven Value for Ice Cream Equipment Manufacturers

A major Chinese cold drink equipment manufacturer reported the following results after switching to the Jinchun 3-8 ring forming and welding machine:

Increased Output: Over 100,000 cone racks per day—3x more than traditional machines

Lower Costs: Automated production cut labor demand and kept defect rate under 0.2%

Rapid Switching: 30 preset processing programs allow fast transitions between product specs

Why Choose Jinchun?

Jinchun stands out among small 2D CNC iron wire bending machine manufacturers by offering machines that integrate forming and welding capabilities into a single automated platform. Whether you're in food hardware, wire product bending, or industrial ring making, this all-in-one bender and welder delivers unmatched flexibility and performance.

Ready to scale your production? Contact the Jinchun team today for detailed specs or a custom solution tailored to your wire forming needs.
