5-Axis Machining Guide: Maximizing Workshop Efficiency and ROI

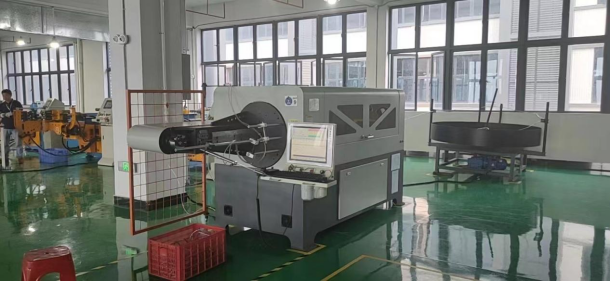

While 5-axis machining equipment significantly boosts productivity, its full value depends on scientific management. Drawing from Jinchun’s expertise with its 5-axis 3D wire bending machine, this guide provides actionable strategies to maximize returns.

I. Equipment Selection: Aligning Specifications with Needs

1. Core Parameter Comparison

Wire diameter range:

JCXLC-8 (Φ3-Φ8mm): Ideal for precision small parts.

JCXLC-10 (Φ5-Φ14mm): Optimized for heavy-duty components.

Processing speed:

90 m/min wire feeding speed requires automated racks (1,000kg capacity) to minimize material changeovers.

2. Scalability & Compatibility

Axis configuration:

5-axis wire bending machines handle most 3D forming tasks.

Upgrade to 6-axis for ultra-complex geometries (e.g., helical structures).

Software integration: Ensure compatibility with SolidWorks and other CAD formats to eliminate file conversion delays.



II. Production Optimization: Unlocking Full Potential

1. Streamlined Programming

Teach-in programming: Manually adjust the first sample, then let the system auto-record paths for batch production.

Parameter templates: Save bending angles, feed rates, etc., by product type to reduce setup time.

2. Human-Machine Collaboration

Shift scheduling: Use the auto-stop function for unmanned night shifts, boosting daily output by 30%.

Preventive maintenance: Monthly checks on belt tension and guide lubrication prevent unplanned downtime.



III. Cost Control: Full Lifecycle Management

1. Energy Efficiency

Jinchun’s wire bending machine employs energy-saving motors (11.2KW total power), cutting electricity costs by 15% vs. competitors.

Pro tip: Schedule production during off-peak hours for additional savings.

2. Consumables Management

Tool life monitoring: Set replacement cycles based on material hardness (e.g., stainless steel).

Scrap recycling: Maintain <3% waste rate; sell scrap to offset costs.

IV. ROI Analysis: Data-Driven Decision Making

Case study for JCXLC-8 (CNY 500,000 investment):

Annual savings:

Labor reduction: CNY 120,000 (2 operators)

Waste reduction: CNY 50,000

Total savings: CNY 170,000

Revenue growth: 30% capacity increase → ~CNY 500,000/year

Payback period: (500,000) / (170,000 + 500,000) ≈ 8 months.



V. Jinchun After-Sales: Ensuring Continuous Productivity

7×24 support: Remote troubleshooting or on-site assistance (China mainland), with <4-hour response time.

2-year warranty: Covers motors, guides, and core components to minimize post-purchase risks.



ROI from a 5-axis wire bending machine isn’t a “set-and-forget” investment. With precise selection, scientific management, and Jinchun’s lifecycle support, manufacturers can achieve a sustainable “cost reduction → efficiency → profitability” cycle!
