What Is a 2D CNC Wire Bending Machine—and How Does It Revolutionize D-Handle Mass Production?

2025-06-13

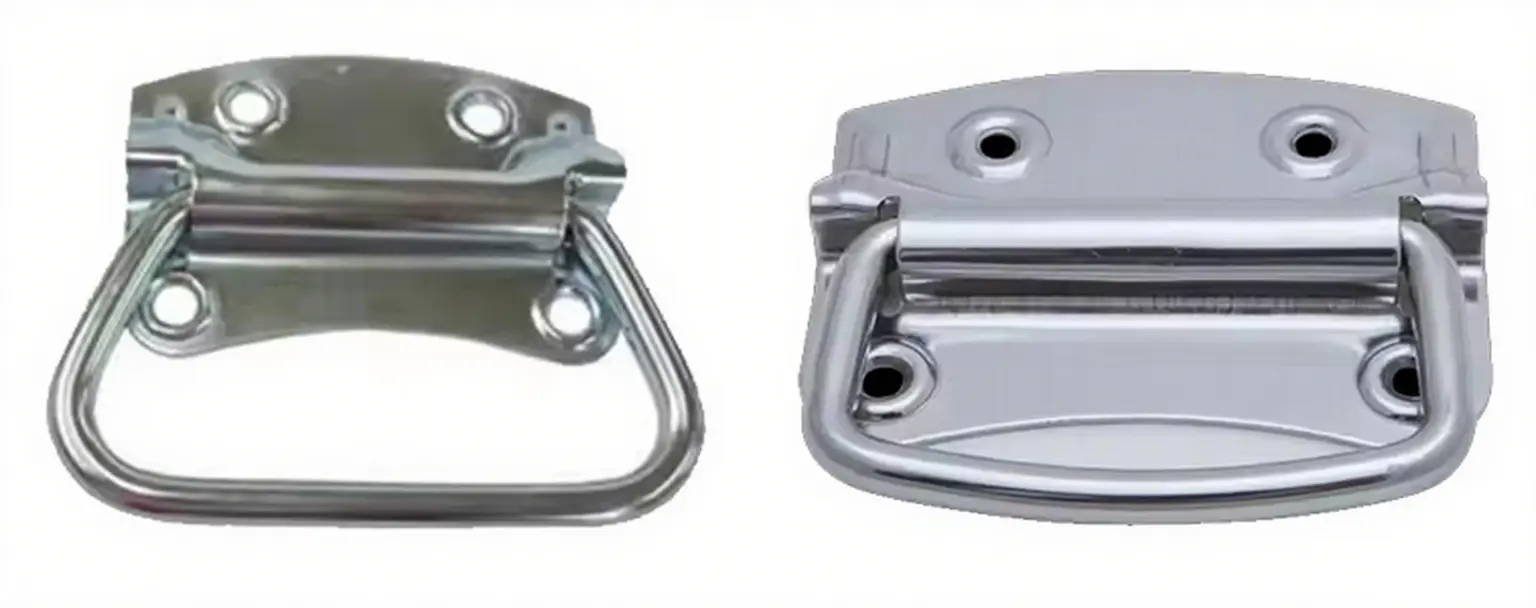

In the industrial hardware sector, D-shaped handles are essential components widely used in furniture, luggage, appliances, and machinery. But as demand increases, many manufacturers are asking: how can we produce these wire-based handles with high accuracy and efficiency—at scale?

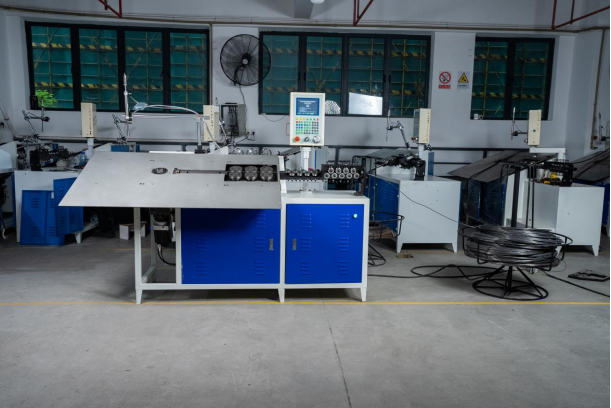

That’s where the Jinchun 2D CNC wire bending machine comes in. Developed by one of China's trusted small 2D CNC iron wire bending machine manufacturers, it offers a smart, automated solution tailored specifically for 2–6mm wire bending, forming, and cutting — making it a perfect fit for ring making, welding, and forming D-handles.

In this guide, we’ll explore how the Jinchun 2D bender helps turn raw wire into consistent, high-precision D-handles in record time.

Why Traditional D-Handle Production Falls Short

D-handle manufacturing typically involves multiple steps: cutting, bending, shaping, and finishing — most of which are done manually or with semi-automatic tools.

Common challenges include:

❌ Low throughput – Manual bending produces fewer than 200 pcs per shift

❌ Inconsistent shapes – ±1mm deviation in bend angles or lengths

❌ Inefficiency under large orders – Difficult to scale with spikes in demand

✅ After switching to Jinchun’s 2D CNC wire bender, a customer in Zhengzhou increased daily capacity to 2,000+ pcs, reduced defect rates to under 0.5%, and improved delivery speed dramatically.

How the 2D CNC Bender Streamlines D-Handle Production

Jinchun’s 2D bender combines intelligent control systems with high-precision mechanics, optimized for symmetrical and structure-critical parts like D-ring handles.

✅ Step 1: Wire Straightening – Accuracy Starts at the Source

Wire enters the machine and passes through 28 Cr12 steel straightening rollers

Rollers made from SKD11/51-grade steel (HRC 58–62) eliminate wire kinks and twists

This ensures uniform wire behavior and accuracy during bending

✅ Step 2: Multi-Axis CNC Bending – Complex Forms, Zero Hassle

The machine uses a 4-axis servo system: feeding, bending, cutting, and lifting

For D-handle manufacturing:

Feeding system uses 3 precision rollers (Ra ≤ 3.2μm) with ±0.5mm length tolerance

Bending unit performs U-shapes, right angles, and custom forms — all servo-controlled

Cutting station uses a high-speed servo with ±0.5mm dimensional control and burr-free cuts

The system stores up to 4,000 programs with 300 motion sequences each, allowing one-click changeovers for multiple product lines.

✅ Step 3: Full Automation with Minimal Labor

Features a 7-inch touchscreen with dual-language interface (EN/CN)

Operators only need to handle material loading and tool alignment

Pneumatic system (1 cylinder + 1 solenoid valve) handles auto-feed and discharge

Why Choose the Jinchun 2D CNC Wire Bending Machine?

Here’s what sets it apart from other wire forming and welding machines in the market:

✅ 1. Multi-Material Compatibility

Supports round, flat, and square wire

Handles 2–6mm diameter with easy adjustment of pressure and bend angles

Ideal for different sizes and specifications of D-handles

✅ 2. High-Speed Precision

Bending accuracy: ±0.5mm — far better than the ±1mm industry average

Up to 300 bends/min and 20–25 pcs/min throughput (example: 200×200mm frame)

Delivers both speed and precision for dynamic order environments

✅ 3. Smart Design, Low Cost of Ownership

Modular design: mold changes take <3 minutes

Reusable programs eliminate repetitive coding

Reduces long-term maintenance and labor cost

Customer Spotlight: From Manual Bottlenecks to Reliable Delivery

“Before the Jinchun machine, we relied on manual labor and missed delivery windows during order spikes. Now with automation, we’ve improved product consistency, cut labor needs, and secured long-term contracts,”

— Procurement Manager, Zhengzhou Hardware Manufacturer

Conclusion: Redefining Wire Processing Value

From raw material to finished D-handle, the Jinchun 2D CNC wire bending machine offers a new standard of efficiency, flexibility, and precision for hardware manufacturers.

Whether you’re running small batches or scaling to mass production, this bender’s smart features and robust performance make it a top choice for anyone seeking automated ring making, welding, and forming equipment — trusted by manufacturers around the world.

➤Ready to scale your D-handle production? Contact Jinchun Mechanical Equipment today to get a quote, schedule a demo, or request a free sample run. Let’s unlock the full potential of your wire processing line.
