Industrial Fan Outer Ring Welding Solution: Efficient, Precise, One-Stop Mesh Welding Solution

In the industrial fan manufacturing industry, mesh cage welding is a crucial step to ensure the structural strength and safety of the product. With years of industry experience, JCXLCHardware Machinery Factory from Beijiao Town, Shunde District, Foshan City, has introduced the XLC series Industrial Fan Flat Outer Ring Welder, providing an efficient, precise, and automated welding solution for industrial fan mesh cages. This article will deeply analyze the core technology, application scenarios, and customer value of this equipment, helping you solve welding challenges with a one-stop solution.



1. Core Technology Analysis: Hardware Assurance for Precision Welding

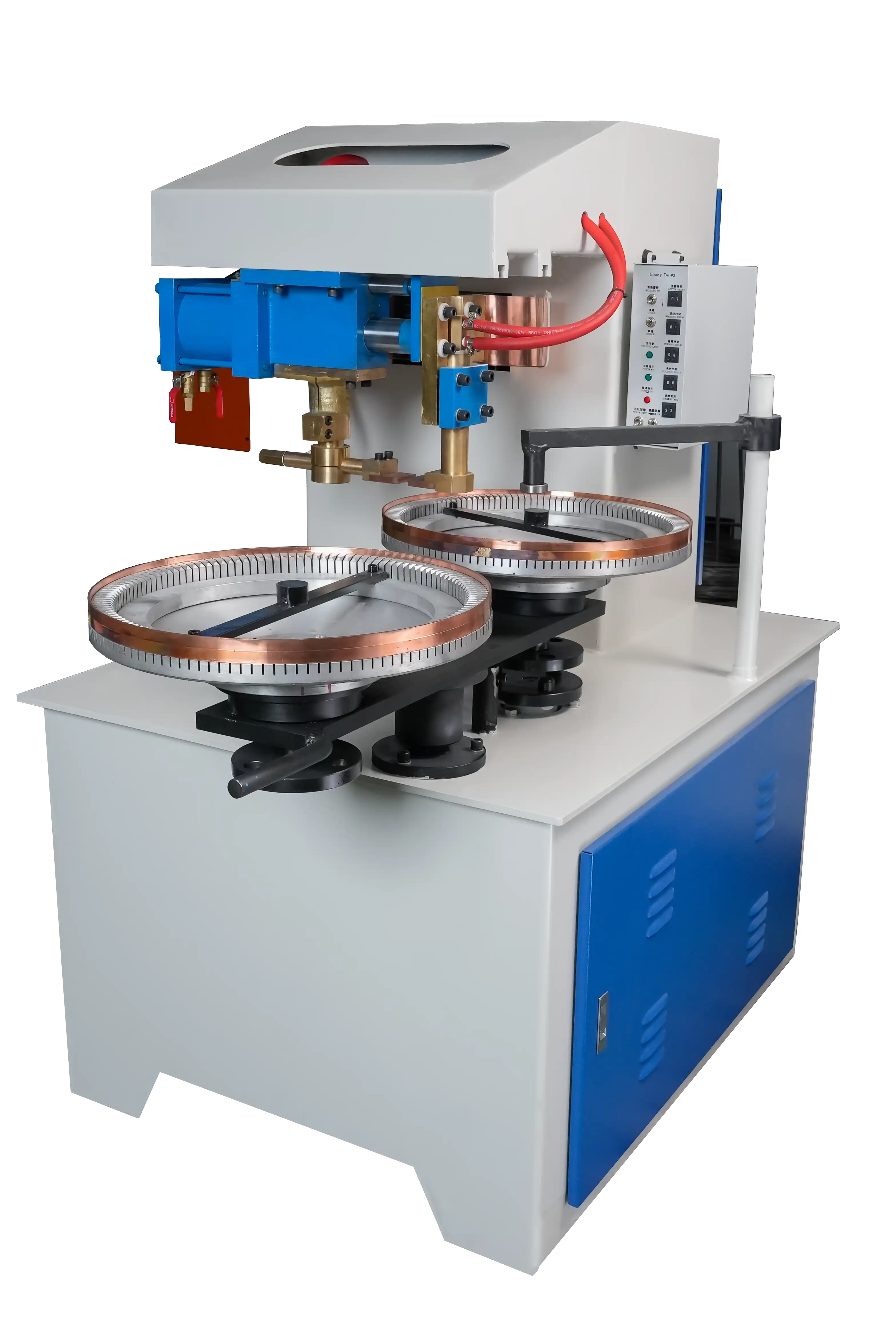

The XLC-3 Cylinder / 4 Cylinder Industrial Fan Flat Outer Ring Welder integrates multiple innovative technologies to ensure stable and reliable welding:

Imported Core Components

Key components such as electromagnetic valves, cylinders, and SCRs are sourced from internationally renowned brands or high-end domestic products, ensuring long-term stable operation.

Microcomputer Integrated Control Box

The control box adopts a microcomputer-based design, allowing precise parameter adjustments via high-precision DIP switches, ensuring smooth welding current output.

Adjustable Multi-Row Welding Electrode Design

The flexible electrode layout supports single or multi-row welding modes, adaptable to different specifications of industrial fan mesh cages.

Users can quickly replace welding electrodes, fixtures, or adjust electrode positions to achieve "multi-purpose" functionality, covering flat row welding, edge welding, and other processes.

Intelligent Control System

The bidirectional SCR regulation technology optimizes the welding current and voltage in real time, preventing issues such as false or missed welds caused by parameter fluctuations.

The equipment includes an idle loss optimization design, reducing energy consumption while extending its lifespan.



2. Application Scenarios and Advantages: A Welding Expert with Full Process Coverage

The XLC series welder specializes in industrial fan flat outer ring welding, especially suitable for the following scenarios:

Main Mesh Frame Welding: Place the pre-welded mesh frame into the fixture, lay the mesh wire, and start the machine to complete the edge welding in one click.

Irregular Structure Welding: The "cross" diagonal welding sequence ensures uniform curvature of the final product, preventing deformation.

Mass Production Needs: The welding speed of the device reaches 40-60 units/hour, making it ideal for medium to large industrial fan manufacturers with large-scale production needs.



Compared to traditional welding methods, the core advantages of the XLC series welder are:

Increased Efficiency: Automated welding replaces manual operations, reducing the connection time between processes. The daily output of a single machine can exceed 1000 units.

Controlled Quality: Digital management of welding parameters ensures uniform and firm welds, reducing the defective product rate by more than 50%.

Cost Savings: The machine's multi-purpose feature reduces equipment procurement costs, while the versatility of electrodes and fixtures further lowers maintenance costs.



3. Customer Value: Empowering the Entire Process from Production to Delivery

By choosing the JCXLC Industrial Fan Welding Solution, you will gain the following benefits:

Shortened Production Cycle

The equipment is ready to use immediately with no complex debugging. Coupled with automatic wire winding machines, row welders, and other supporting equipment, it achieves full-process automation from wire laying to finished welding.

Adaptability to Diverse Needs

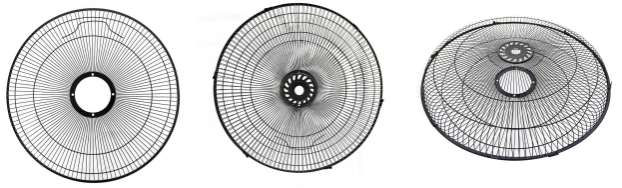

Supports welding of industrial fan mesh cages from 550mm to 850mm in size, with adjustable pressure up to 0.6 MPa, meeting the welding needs of different materials (e.g., iron wire, stainless steel wire).

Lower Operational Threshold

The touchscreen interface simplifies the programming process, and workers can quickly get started with simple training, reducing reliance on technical personnel.

Environmental and Safety Features

The fully enclosed welding chamber reduces splatter pollution, with a pulse dust removal device ensuring a clean workshop environment.



4. Successful Cases and Industry Reputation

A well-known industrial fan manufacturer that introduced the XLC-4 Cylinder Welder saw the following improvements:

Capacity Increase: Daily output per machine increased from 300 to 800 units, reducing labor costs by 40%.

Stable Quality: The welding strength pass rate increased from 85% to 99.2%, and customer complaints decreased by 70%.

Currently, JCXLCwelding machines serve hundreds of industrial fan manufacturers in China and are exported to Southeast Asia, the Middle East, and other markets, earning widespread recognition for their high cost-performance ratio, ease of maintenance, and long lifespan.



5. Conclusion: Creating an Efficient Welding Future Together

JCXLC Hardware Machinery Factory, located in Beijiao Town, Shunde District, Foshan City, always upholds the mission of "driving the upgrade of manufacturing through technological innovation."

The XLC series industrial fan flat outer ring welder not only revolutionizes welding tools but also comprehensively improves the efficiency and quality of industrial fan manufacturing.



Act Now to Get Your Exclusive Solution:

Free Consultation: Call our hotline at +86 15015830219 for equipment parameters and quotes.

On-Site Inspection: Visit our Foshan headquarters or one of our eight service centers nationwide to experience the equipment's real-time performance.

Win-Win Cooperation: Sign an annual procurement agreement to enjoy additional discounts, free technical training, and after-sales support.

Let each weld be a testament to quality!



For small 2D CNC iron wire bending machine manufacturers, we offer solutions for bender ring making, forming, welding, and welder processes, ensuring optimal performance and efficiency. The XLC series stands as a perfect example of cutting-edge technology, designed to enhance your industrial fan production.
