High-Efficiency Ring Making & Welding Machine – All-in-One Solution for Iron Fan Guard Production

Are you in the fan guard manufacturing business and looking for a way to boost production efficiency while ensuring precision and consistency Say goodbye to traditional slow and labor-intensive production methods. The Jinchun Automatic Ring Making & Welding Machine is your smart solution – integrating wire bending, ring forming, and precision welding in a single system.

Trusted by manufacturers in Zhejiang, China, our machine has helped clients scale up fan grill production and streamline operations with fewer errors and reduced labor costs.



✅ Product Overview

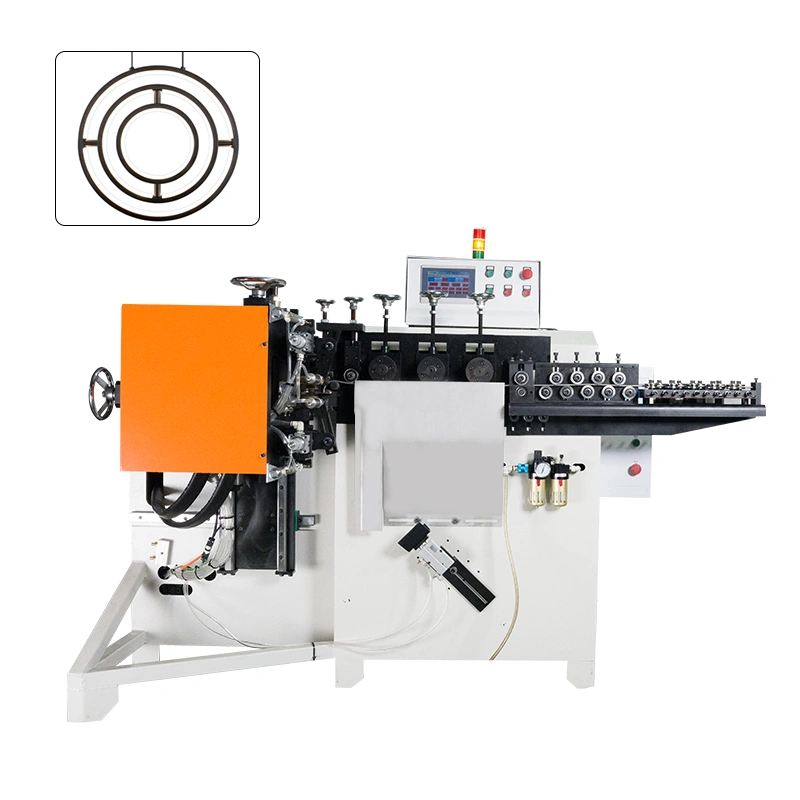

This small 2D CNC iron wire bending and ring making machine is specifically designed for high-speed metal wire processing. Ideal for fan guard frames, hardware accessories, and metal crafts, it combines automated wire bending, circle forming, and spot welding, providing a complete manufacturing cycle in one machine.



Key Specifications & Performance

Production Speed: 20–25 pcs/min

Designed for high-volume orders, the machine supports continuous, uninterrupted operation.

Wire Diameter Range: 2–6mm

Compatible with various iron wire specifications for versatile production requirements.

Ring Diameter Range: 5mm to 550mm

From small precision rings to large circular frames—ideal for fan guard production.

For example, 3mm wire can easily be formed into 400mm+ rings.



Precision Control:

Ring circumference tolerance: ±0.2mm

Diameter tolerance: ±0.5mm

Center plate alignment deviation: ≤0.5mm

Guaranteed high assembly accuracy and product consistency.



Welding System:

50KVA power output

Stable 50% duty cycle

Works with 0.08Pa compressed air & 50L/min cooling water

Ensures durability during long operation cycles.

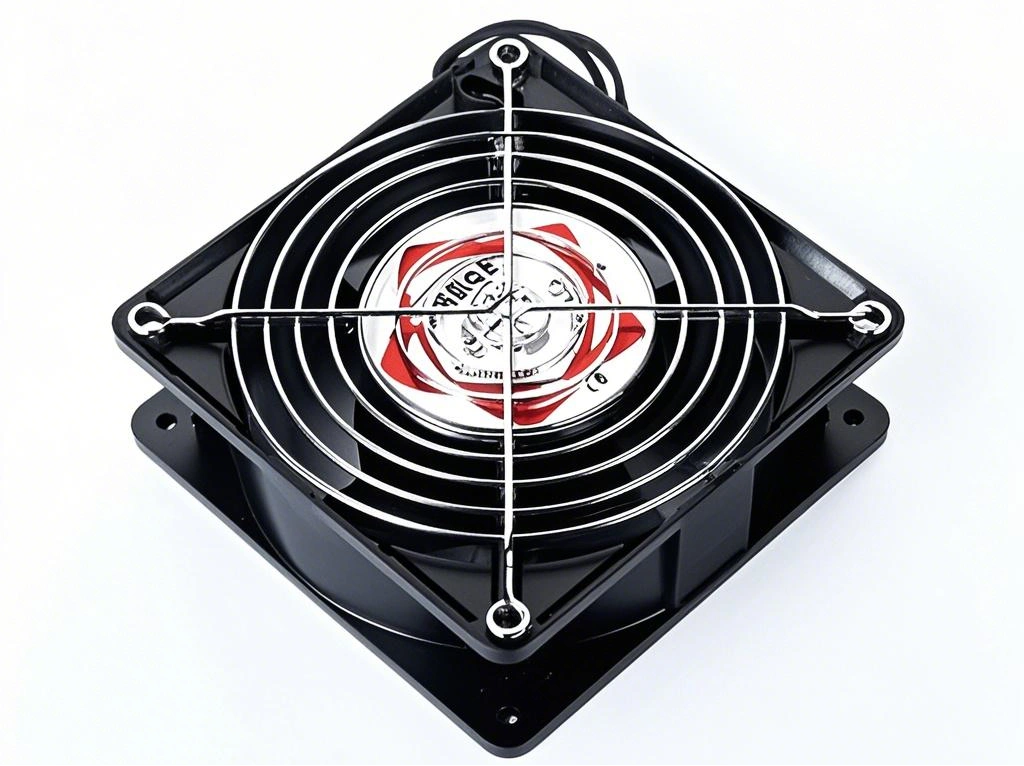

Application Case: Fan Guard Manufacturer in Hangzhou, Zhejiang

A leading fan grill manufacturer in Zhejiang needed to fulfill a large order with tight deadlines. Our machine delivered:

Fast Delivery & Production Start

Quick transition from prototype to mass production.

Cost-Efficient Investment

With a competitive price of just 1X,XXX USD (excluding tax & freight), this all-in-one machine delivers better value than traditional multi-unit setups.

Easy Operation

User-friendly control panel, minimal training required, and reduced labor input.

Customer Results:

Achieved 30% increase in daily output

Maintained >99% product pass rate

Machine footprint: 2.5 × 1.45 × 1.5m

Total weight: 800kg – easy integration into any workshop layout



⚙️ Technical Highlights

Jinchun Machinery designs each machine to match the real needs of wire product manufacturers.

Drive System:

High-performance domestic motor with low-cost intermittent shear system – easy to maintain.

Wire Feeding Unit:

35m/min delivery speed ensures smooth, stable wire input.

Power Compatibility:

309V input voltage – plug-and-play in standard Chinese industrial workshops.

Flexible Speed Control:

Adjustable forming speed (10–25 pcs/min) to accommodate different wire diameters and ring sizes, such as Ø50mm/hour settings.



Why Choose Jinchun Mechanical

As a trusted small 2D CNC iron wire bending machine manufacturer, we’re committed to delivering high-performance, cost-effective automation equipment to help global customers:

Lower production costs

Increase throughput

Improve product quality

Stay competitive in demanding markets



Whether you’re manufacturing metal ring products, fan guards, or industrial wire components, our ring forming & welding machines are the perfect upgrade for your factory.

Get in Touch for a Customized Solution!

Let Jinchun Mechanical power your next production upgrade. Contact us now for a free consultation and start optimizing your wire bending & welding processes today.
