Double Your Efficiency: Unlock Next-Level Metal Fabrication with 5 Core Technologies

Introduction: When Traditional Workflows Meet the Smart Manufacturing Revolution

In industries such as new energy vehicles, 5G infrastructure, and precision instruments, demand for complex metal parts is growing rapidly. However, conventional workflows — separating wire bending and welding — often result in low efficiency, poor precision, and high labor costs.

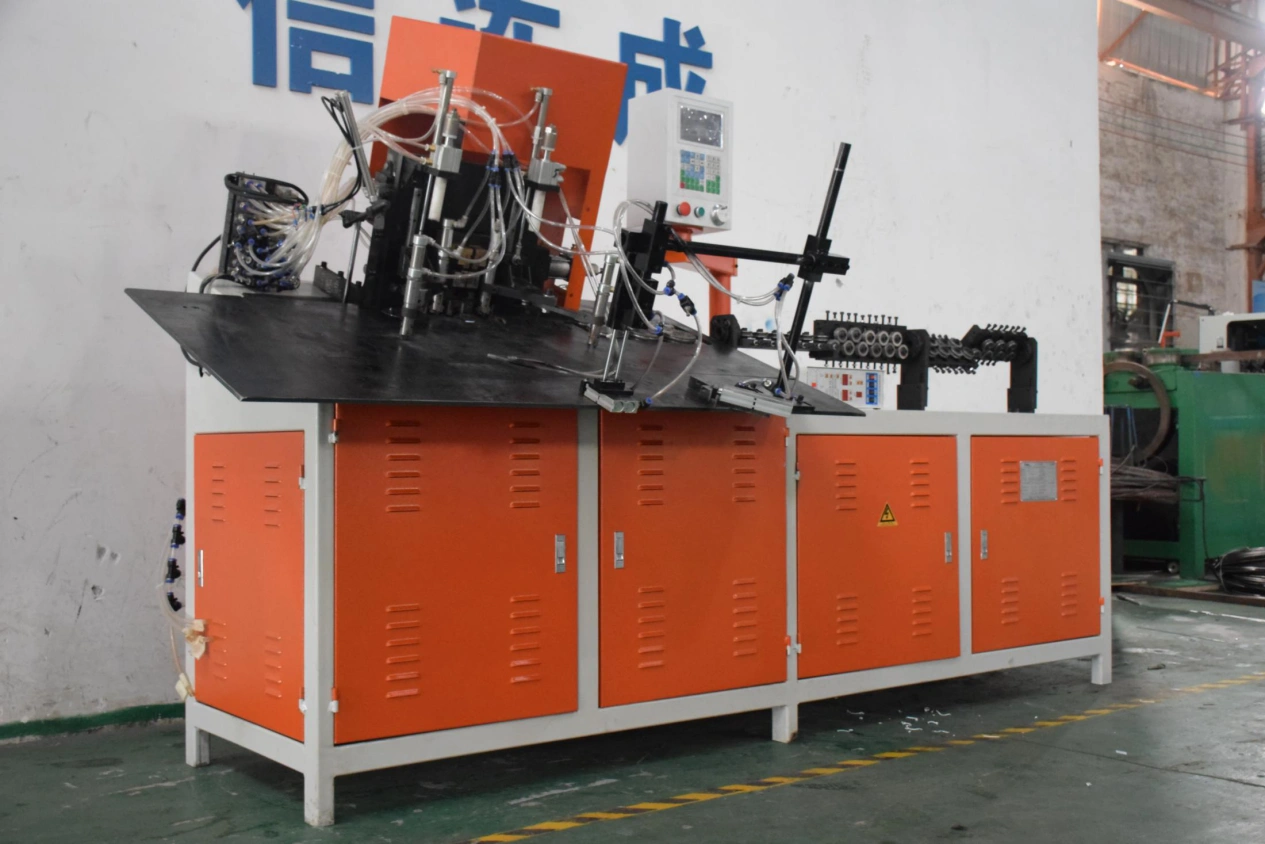

Enter the 3–8mm Frame Bending and Butt Welding Machine — the world’s first integrated smart metal processing solution. Powered by five groundbreaking technologies, it combines bending, forming, ring making, and welding into one seamless process. The result? One machine equals five production lines — an industry-redefining leap in metal wire automation, trusted by leading small 2D CNC iron wire bending machine manufacturers.



Core Technology 1: High-Precision Servo System (±0.5mm Accuracy)

Hardware Foundation

Driven by a 4-axis synchronized system (feeding, bending, rotating, loading/unloading), powered by a 32-bit high-performance PLC to compensate for mechanical deviations in real-time.

Software Innovation

Stores and executes up to 300 pre-set motion programs, enabling precise recreation of complex shapes like arcs and multi-angle joints using intelligent microcomputer control.

Application Example

A 200×200mm square frame can be completed in 10–15 seconds, with <0.5° angle deviation and top-tier weld seam flatness — unmatched in the bender and welder category.



Core Technology 2: Smart Welding Module (63KW Power Delivery)

Hardware Upgrade

Equipped with a 63KW heavy-duty welding transformer, supports continuous welding of up to ∅8mm iron wire, ensuring deep, consistent welds with minimal heat-affected zones.

Robotic Precision

Features dual robotic clamps and a 360° rotary workbench, allowing fully automated clamping, alignment, and real-time weld seam tracking.

Process Advantage

Improves joint strength by 50%, leaves no oxidation marks, ideal for high-spec applications such as EV battery trays.



Core Technology 3: Modular Design (Limitless Wire Length Compatibility)

Flexible Expansion

Features 28 Cr12 straightening rollers + 3 Cr12 feeding rollers, easily adjustable to handle any cross-section — round, flat, or square — simply by swapping tooling.

Smart Production

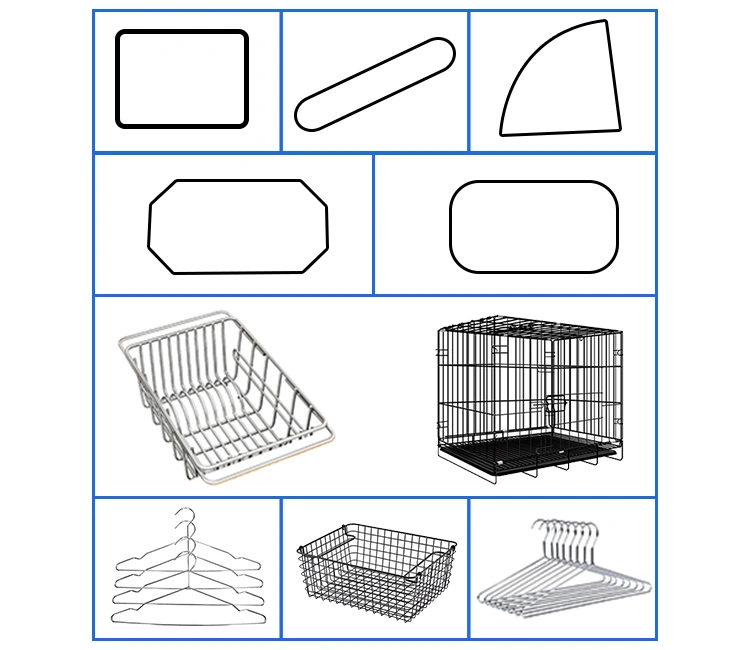

Covers full wire sizes from 3–8mm, with adjustable ring or frame sizes for on-demand forming, making it perfect for short-run, multi-spec production orders.

Efficiency Boost

With a total servo power of 7.3kW (3.8kW feeding, 1.5kW bending, 1.0kW cutting, 1.0kW lifting), it reduces energy use by 20% compared to traditional systems — a top choice among ring making and welding machine manufacturers.



Core Technology 4: Comprehensive Safety System (Pneumatic + Electromagnetic Redundancy)

Multi-Layer Protection

9 synchronized pneumatic cylinders: auto-pressure relief if bending torque exceeds limit

5 emergency-stop solenoids: shut off power in 0.5 seconds during abnormal conditions

Spark suppression zone: negative pressure fume extraction + flame-retardant curtain for weld area

Operator-Friendly Interface

Dual control system (buttons + touchscreen), multilingual interface. Training time reduced by 60%, and user error decreased by 80%.

Core Technology 5: Digital Production Management (2,000 Data Sets Traceable)

Full Workflow Monitoring

Automatically logs bending angles, welding currents, and air pressure parameters for every batch — with up to 2,000 data records retrievable for traceability and quality assurance.

Energy Optimization

PLC dynamically adjusts motor speeds based on real-time load — idle energy consumption drops below 15W, maximizing efficiency.



Applications: Bridging the Gap Between Prototypes and Mass Production

New Energy Vehicles: Mass production of battery frames, motor housings, and lightweight structural parts

Electronics & Appliances: Precision bending and welding for heat sink fins and terminal connectors

Architectural Hardware: Custom fabrication of curtain wall frames, reinforced security doors, and more



Why Choose Us?

As a leader in automated wire forming and welding, we provide more than machines — we deliver scalable, future-ready solutions:

✅ Turnkey Projects: From process optimization and operator training to spare parts management

✅ Customizable Architecture: Expandable to 4-axis or 6-axis configurations to handle special profiles

✅ Lifetime Support: One free maintenance check per year + priority access to original parts



Conclusion: The Automation Revolution Is Now

While competitors still rely on outdated equipment, the 3–8mm Frame Bending & Butt Welding Machine gives you a strategic edge with its five core innovations. It's more than a bender or welder — it’s your smart factory partner.



Take the Next Step

Click to request the full machine spec sheet, or share your production plan with us. Let’s bring smart manufacturing to life — one bend, one weld, one breakthrough at a time.
