Product Description

2D Wire Bending Machine

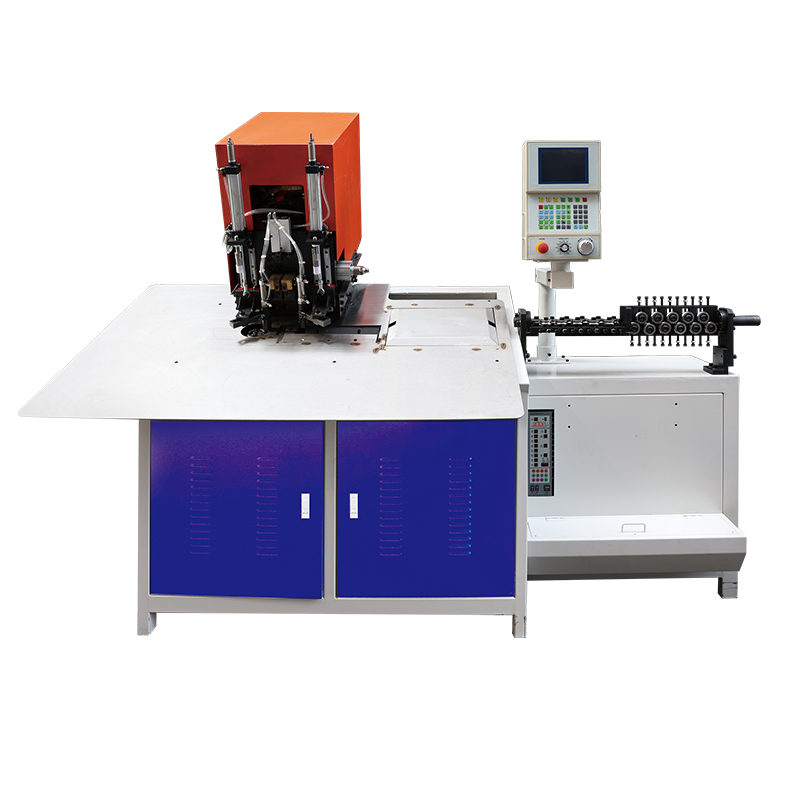

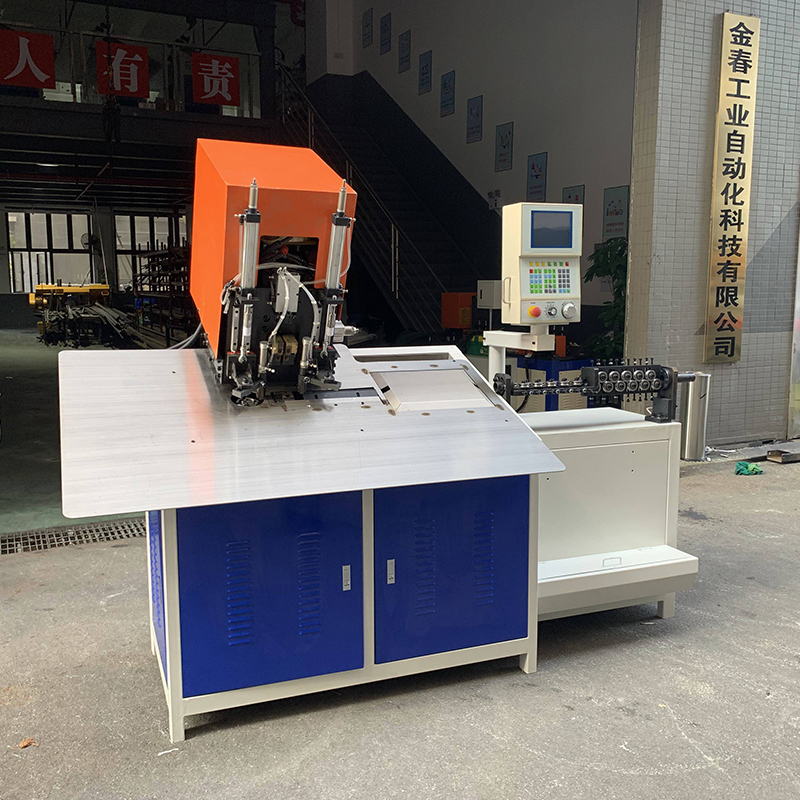

Introduction of 2D CNC Wire Bending and Butt Welding Machine

The 2D CNC Wire Bending and Butt Welding Machine is a high-tech device. It can precisely bend wires and perform butt welding. With advanced controls, it ensures accuracy and quality. Widely used in industries such as manufacturing and construction.

Product Specification of 2D CNC Wire Bending and Butt Welding Machine

Name	2D CNC Wire Bending and Butt Welding Machine
Electrical voltage	3Phases 4 wires+ground wire
Number of straightening wheels	28 groups
Bending molds	62Made of SKD11/51 with hardness 62
Bending precision	±0.5 °
Wire Feeding Precision	±0.5 °
Applicable wire	Round wire, flat wire, square wire
Production Speed	15-20 pcs/min (take square 200*200mm as an example)

Feature and Application of 2D CNC Wire Bending and Butt Welding Machine

The 2D CNC Wire Bending and Butt Welding Machine offers multiple functions. It can accurately bend wires into various 2D shapes and perform seamless butt welding. In the manufacturing industry, it's used for producing wire frames for furniture and automotive parts. In construction, it helps create wire reinforcements. Its precision and efficiency make it ideal for diverse applications.

Here are some practical application cases of 2D CNC Wire Bending and Butt Welding Machine:

In the automotive industry: - It can be used to bend and weld wires for making car seat frames. The precise bending and strong welding ensure the durability and stability of the seats. - Manufacture wire components for dashboard frames and air vent grilles.

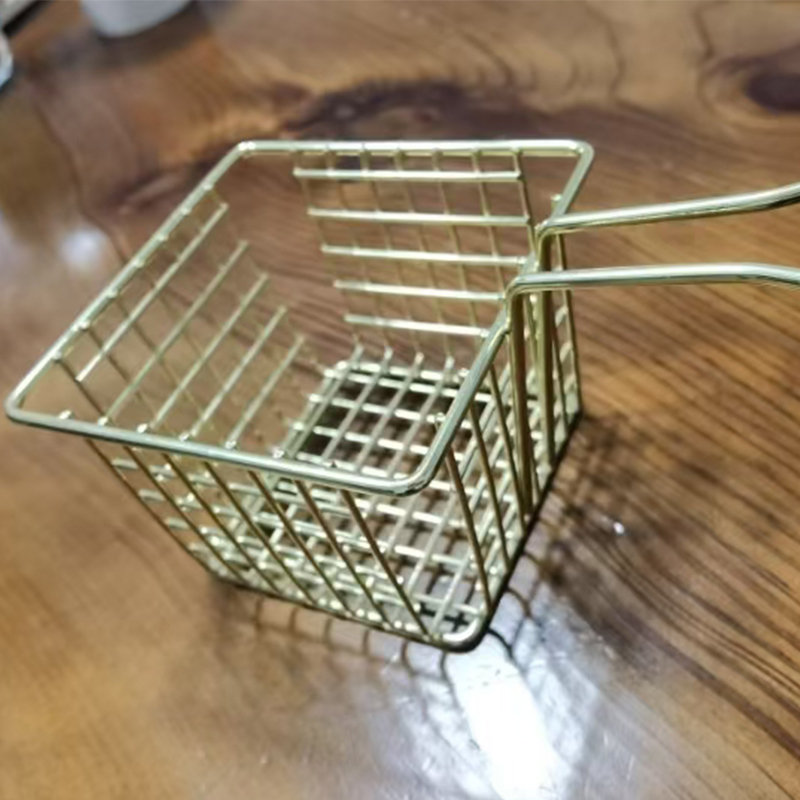

In furniture manufacturing: - Create wire frames for chairs and tables. The machine can bend wires into complex shapes and weld them firmly, providing stylish and sturdy furniture designs. - Produce wire baskets and storage units.

In the construction industry: - Fabricate wire reinforcements for concrete structures. The welded wires can enhance the strength and durability of the buildings. - Make wire mesh for fencing and barriers.

Instructions:

Instructions for 2D CNC Wire Bending and Butt Welding Machine: First, ensure proper setup and connection. Load the wire to be processed. Use the CNC control panel to input bending and welding parameters. Start the machine. It will bend the wire accurately and perform butt welding. Monitor the process closely. After use, clean and maintain the machine regularly for optimal performance and longevity. Ensure safety during operation.

How To Use:

Operation Process of 2D CNC Wire Bending and Butt Welding Machine:

Step 1: Preparation 1. Inspect the machine to ensure it is in good working condition and all parts are intact. 2. Prepare the wire of appropriate size and quality for bending and welding.

Step 2: Loading Wire 1. Insert the wire into the feeding mechanism of the machine carefully. 2. Adjust the tension and alignment of the wire as needed.

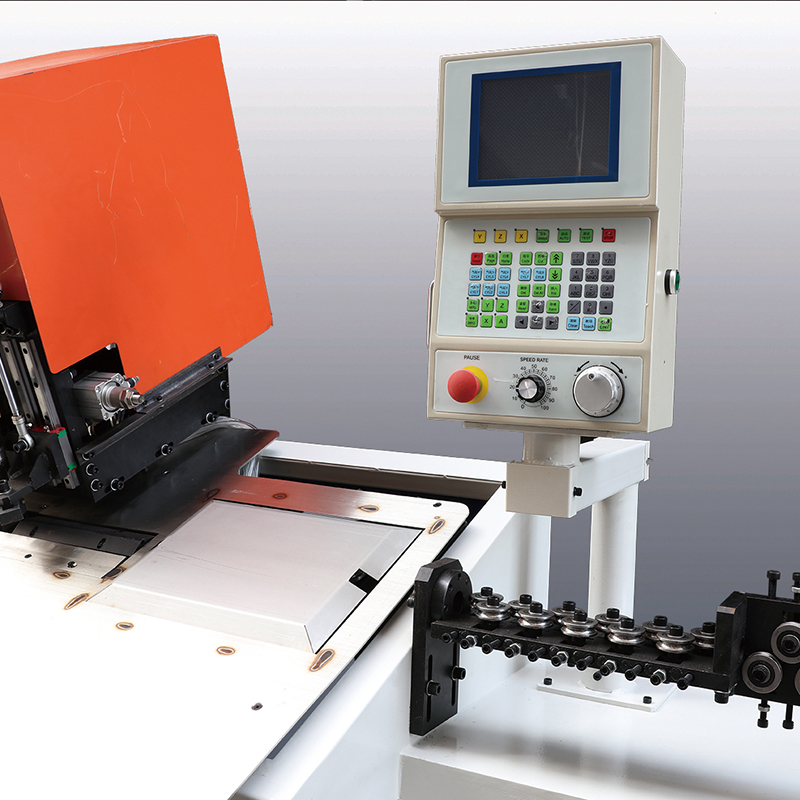

Step 3: Setting Parameters 1. Use the CNC control panel to input the desired bending angles, shapes, and welding parameters. 2. Set the welding temperature, pressure, and time according to the wire material and thickness.

Step 4: Starting the Machine 1. Press the start button to initiate the bending and welding process. 2. Monitor the machine's operation closely to ensure everything is proceeding as planned.

Step 5: Monitoring and Adjustment 1. Observe the bending and welding quality. If necessary, make adjustments to the parameters to achieve the desired results. 2. Check for any defects or issues and address them promptly.

Step 6: Completion and Cleanup 1. Once the process is complete, remove the finished product carefully. 2. Clean the machine after use to remove any wire debris or residue. 3. Perform regular maintenance to keep the machine in good condition for future use.
