Cut Welding Costs by 40%: 5 Breakthrough Technologies That Redefine Wire Processing Efficiency

Introduction: Industry Challenges Meet the Smart Welding Breakthrough

In sectors like automotive manufacturing, home appliance assembly, and metal fabrication, traditional welding methods are struggling with high energy consumption, labor dependency, and inconsistent quality.

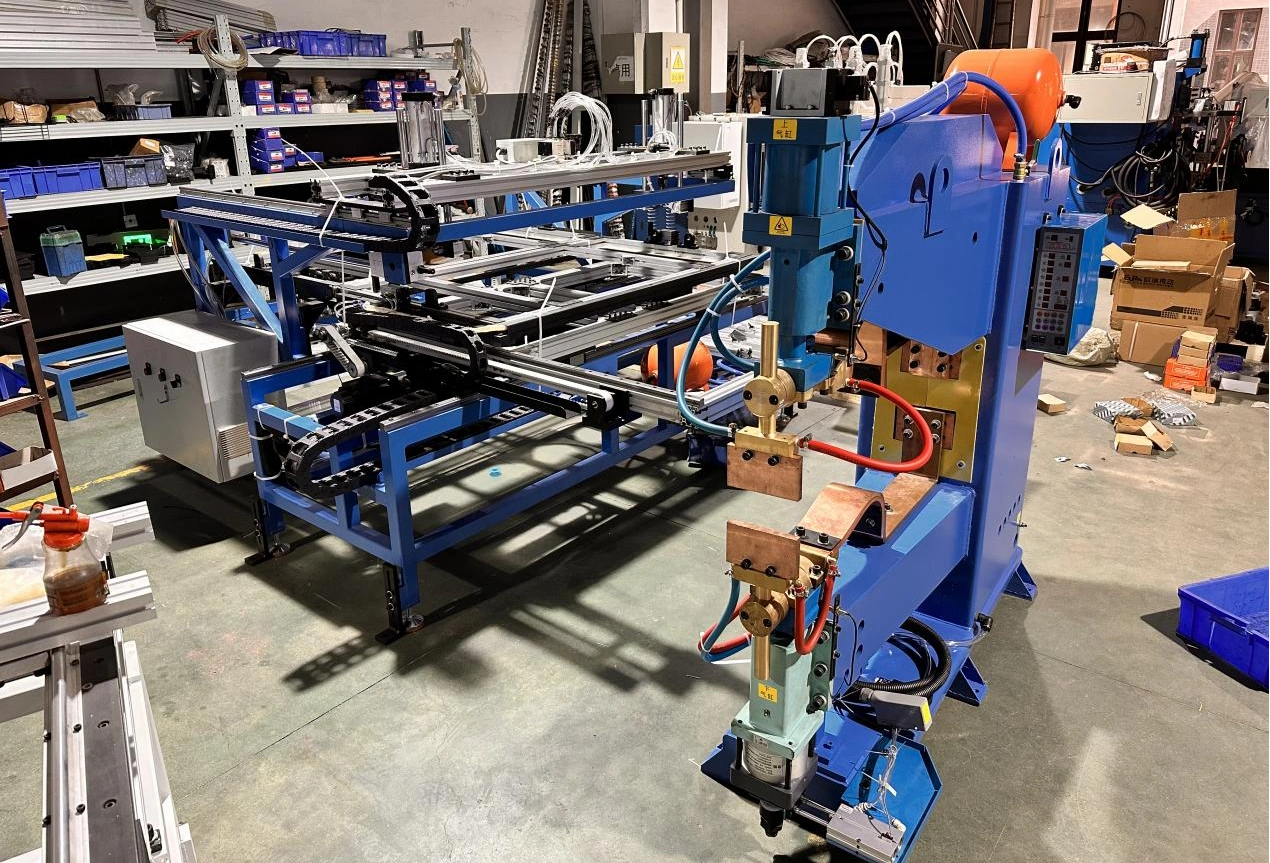

The XY Frame-Style Gantry Spot Welding Machine with Lifting & Alternating Platform revolutionizes wire-based welding operations through five cutting-edge technologies, delivering double the single-unit productivity and a 40% reduction in total operating cost. It’s the new benchmark in intelligent welding and a game-changer for wire processing and ring making operations — trusted by forward-thinking small 2D CNC iron wire bending machine manufacturers worldwide.



Technology 1: Medium-Frequency Inverter Welding (35% Energy Savings)

How It Works

Utilizes advanced IGBT medium-frequency inverter technology to achieve 1000Hz welding frequency, boosting electrical conversion efficiency 3× over traditional AC welders.



Energy Performance

Rated power consumption: XX KVA, with real-world power draw ≤25kW under full load — consuming only 65% of what legacy machines require per weld.



Welding Benefits

40% reduction in heat-affected zone

20% increase in joint strength

Ideal for automotive seat frames, metal cabinets, and sheet metal forming in bender or welder applications



Technology 2: Dual Servo Drive System (50% Faster Cycle Time)

Configuration

X-axis: 1kW servo motor (3000 rpm)

Y-axis: 2kW servo motor (2500 rpm)

Pneumatic cylinder: 5000N max force @ 0.5MPa



Performance Highlights

Jig movement speed up to 1800mm/s

Full weld cycle for 1000×1500mm workpiece in just 3–5 seconds

Positioning accuracy: ±0.02mm

Weld pitch error: <0.1mm — perfect for precision welding or wire forming workflows



Technology 3: Modular Alternating Welding Platform (60% Cost Reduction in Flexible Production)

Structural Innovation

Dual-template modular system allows simultaneous welding of two different workpieces, with tool change time under 2 minutes, no downtime required.

Versatility

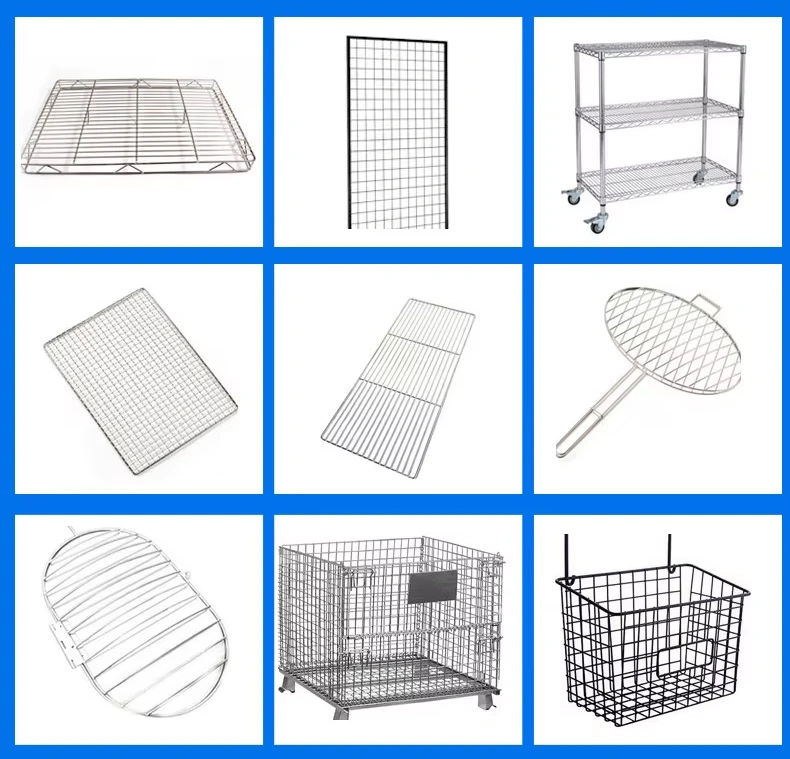

Compatible with all workpieces within 1000×1500mm, including mesh grids, corrugated pipes, and irregular bender or ring structures.

Space Optimization

Compact footprint (6000×3200×1600mm) saves 60% floor space, reducing capital equipment costs by up to 45% for the same output capacity.



Technology 4: Smart Pneumatic Control System (70% Maintenance Savings)

Pressure Optimization

Real-time intelligent pressure adjustment from 0.5–0.7MPa; fluctuations kept under 0.01MPa — reducing weld spatter by 80%.



Easy Maintenance

Modular gas circuit with Kuroda AS2410 solenoid valves, allowing component replacement in less than 15 minutes.



Safety First

Equipped with overload protection and pneumatic interlock, resulting in a 90% drop in unexpected downtimes.



Technology 5: End-to-End Digital Production Control (30% Hidden Cost Elimination)

Process Traceability

Touchscreen interface logs 12 welding parameters (current, pressure, temp, etc.) for every job — building a full-process database.



Energy Analytics

PLC system monitors energy usage per shift and triggers real-time alerts for anomalies with over 95% detection accuracy.



Remote Operation

4G/5G remote diagnostics lets engineers update programs and firmware anytime, anywhere — a must-have for modern welding and wire bender manufacturers.

Application Scenarios: From Standard to Complex Workpieces

Automotive: Battery trays, seat frames, chassis reinforcements

Home Appliances: AC panels, refrigerator compressor brackets

Industrial Equipment: Custom welding for heavy-duty machinery and agricultural shields



Why Choose Us

As pioneers in automated welding and metal forming solutions, we deliver more than machines — we deliver measurable value:

✅ Turnkey Solutions: Full-service packages including commissioning, training, and parts inventory setup

✅ Custom Configurations: Expandable to 4-axis integration for specialized profile welding or ring forming needs

✅ Lifetime Support: Annual free maintenance & priority access to original spare parts



Conclusion: Lower Costs, Higher Output — One Smart Machine

While your competitors still rely on legacy equipment, our XY Gantry Spot Welder with Alternating Platform empowers your operation to leap ahead — by cutting energy bills, labor time, and maintenance complexity.

It’s more than a welder — it’s your next-generation automation partner in bending, forming, and welding success.



Take Action Now

Click to request the full technical datasheet, or send us your production requirements.

Let’s start building your smart wire fabrication line — where cost savings and high performance go hand-in-hand.
