What Is a 2D Wire Bending Machine and How Is It Revolutionizing the Mass Production of Lighting Frames?

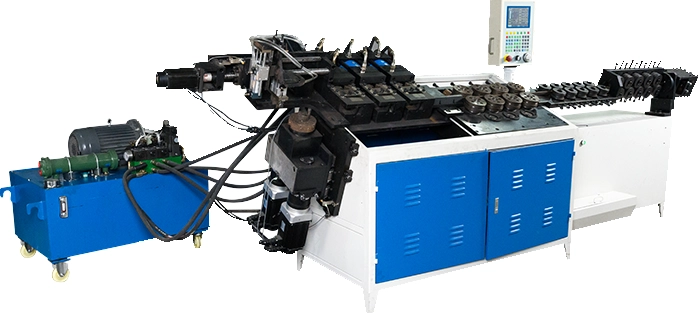

In today's fast-evolving lighting industry, efficiency and precision in frame production are key to staying competitive. That’s where small 2D CNC iron wire bending machines come into play. Designed by Jinchun Mechanical, a leading wire bending machine manufacturer, this advanced equipment transforms raw wire into intricate lighting frames with unmatched speed and accuracy.



Tailored for high-demand lighting manufacturing hubs like Guzhen, Zhongshan, this 2D wire bender is engineered to meet the 2–6mm iron wire processing needs through intelligent automation, modular design, and parametric control. But how exactly does it turn a coil of wire into a beautifully formed lighting frame?



Why Is the 2D CNC Wire Bender the Ideal Partner for Lighting Frame Production?

Lighting frame production demands a delicate balance of design flexibility and mass scalability. Traditional manual bending methods are time-consuming, inconsistent, and struggle with custom orders. Our small 2D CNC iron wire bending machine directly addresses these challenges with three key advantages:



✅ Broad Material Compatibility and Bending Versatility

Supports 2–6mm round and flat iron wire.

Compatible with over 90% of mainstream lighting frame materials.

Features 18 Cr12 hardened molds (58–62°) and 3 polished Cr12 feeding wheels (≥58°).

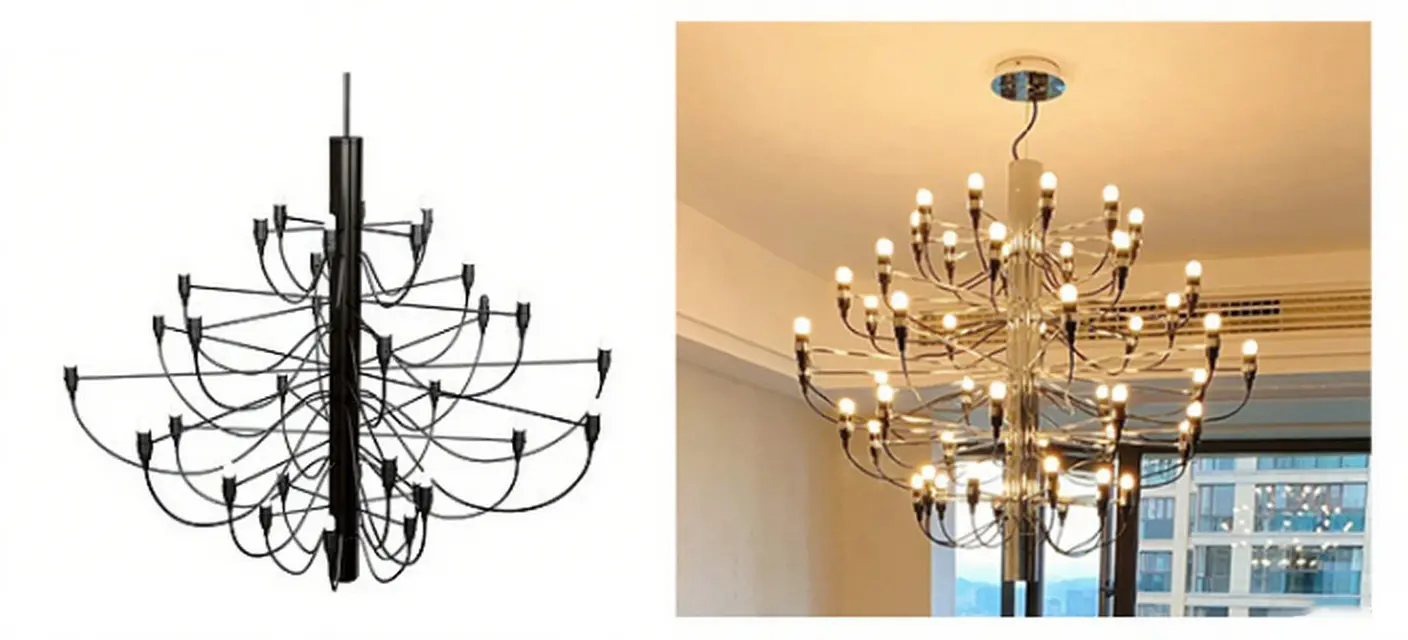

Capable of complex bending forms—90°, 180°, even 360° spirals—for chandeliers, ceiling lights, and wall lamps.



✅ Intelligent Automation for Enhanced Efficiency

Powered by a 4-axis servo system (feeding, bending, cutting, and die movement).

Integrated with 2.3kW servo motor group (from Guoou Motor).

Output rate of 8–10 pieces/minute.

Stores up to 10,000 data sets and 300 programmable actions per group for one-touch production.

Proven 300% productivity boost and 50% labor cost reduction in client tests.



✅ Millimeter-Level Accuracy Ensures Quality Consistency

Wire feeding accuracy: ±0.5mm

Bending positioning accuracy: ±0.5mm

Real-time motion preview via touchscreen HMI

Supports English/Chinese UI switch

Enables “one-shot forming, zero rework”—even for highly customized shapes.



How Does the 2D Wire Bending Machine Deliver Both High Precision and High Throughput?

From wire loading to final output, this machine delivers a fully automated workflow through three core systems:

⚙️ Precision Feeding + Dynamic Bending

Feeding System:

Three polished Cr12 rollers independently driven by servo motors.

Adaptive pressure to wire hardness.

Stable at up to 300 rpm with ±180° adjustment.



Bending System:

18 quick-change hardened molds.

Pneumatic valve allows tool change within 30 seconds.

4-axis linkage enables full 360° motion in both horizontal/vertical and upper/lower directions.

Supports thousands of L, U, arc, and custom profiles.



⏳ Smart Control = Data-Driven Manufacturing

Built-in 32-bit high-performance processor + CAD import (DXF, SVG compatible).

Auto-matching of bending paths based on wire material, diameter, mold ID, and action set.

Eliminates manual trial-and-error setup.

Cloud backup of 10,000 data groups ensures seamless production across batches and facilities.



⚙️ Rock-Solid Hardware for Continuous Operation

Combined pneumatic + servo motor power system.

Integrated dust filtration and overload protection.

650KG heavy-duty frame with vibration <0.05mm during operation.

Wear-resistant components ensure stability over long-term, high-load use.



How Can Lighting Manufacturers Cut Costs and Boost Efficiency with the 2D Wire Bender?

For lighting factories producing over a million frames annually, this small 2D CNC iron wire bending machine offers unmatched ROI in three areas:



✅ Cost Reduction

Replaces 5–8 skilled workers per shift.

Saves over $40,000/year in labor based on 8-hour shifts.

Up to 80% mold compatibility reduces tooling investments.



✅ Space Optimization

Compact footprint: 2300×1100×1650mm

Occupies only 3.5㎡, ideal for small workshops or modular assembly lines.

Seamlessly integrates with "front-store, back-factory" models popular in Guzhen.



✅ Flexible Production

Switch between chandelier and wall lamp frames in under 30 minutes.

Supports multi-variety, small-batch production trends.

Avoids downtime from mold or program changes typical with traditional machines.



Conclusion: Take Full Control of Your Production with Jinchun's 2D Wire Bender

As proven by clients in Zhongshan’s lighting district, Jinchun’s small 2D CNC wire bending machine is more than just a tool—it’s a game-changer for businesses aiming to scale efficiently while maintaining quality. From 2mm wire filigree to 6mm structural frames, every bend is controlled with ±0.5mm precision, delivering your design vision at industrial speed.



In a market where speed and customization define success, Jinchun empowers manufacturers to transform every wire into innovation—and every machine into a profit engine.



Looking for custom specifications or a personalized quote? Contact Jinchun Mechanical today and take the first step toward intelligent production.
