How a 3D Wire Forming Machine Revolutionizing Is Fast-Food Supply Manufacturing?

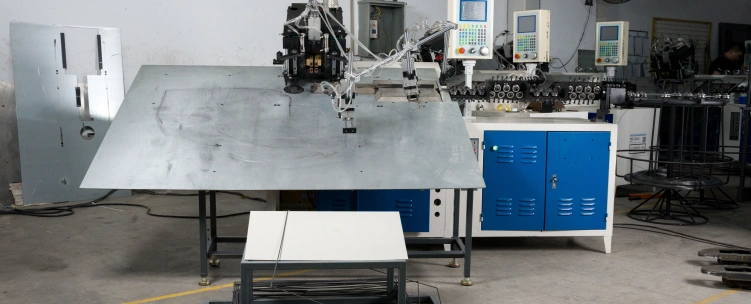

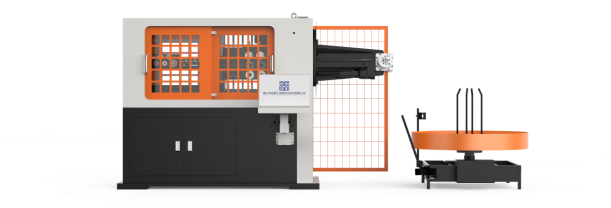

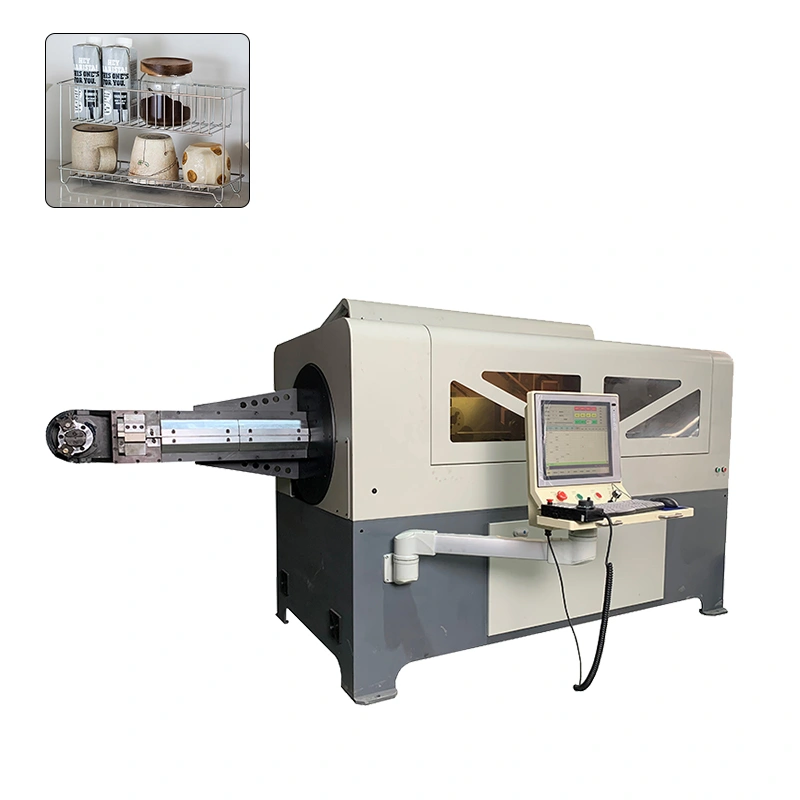

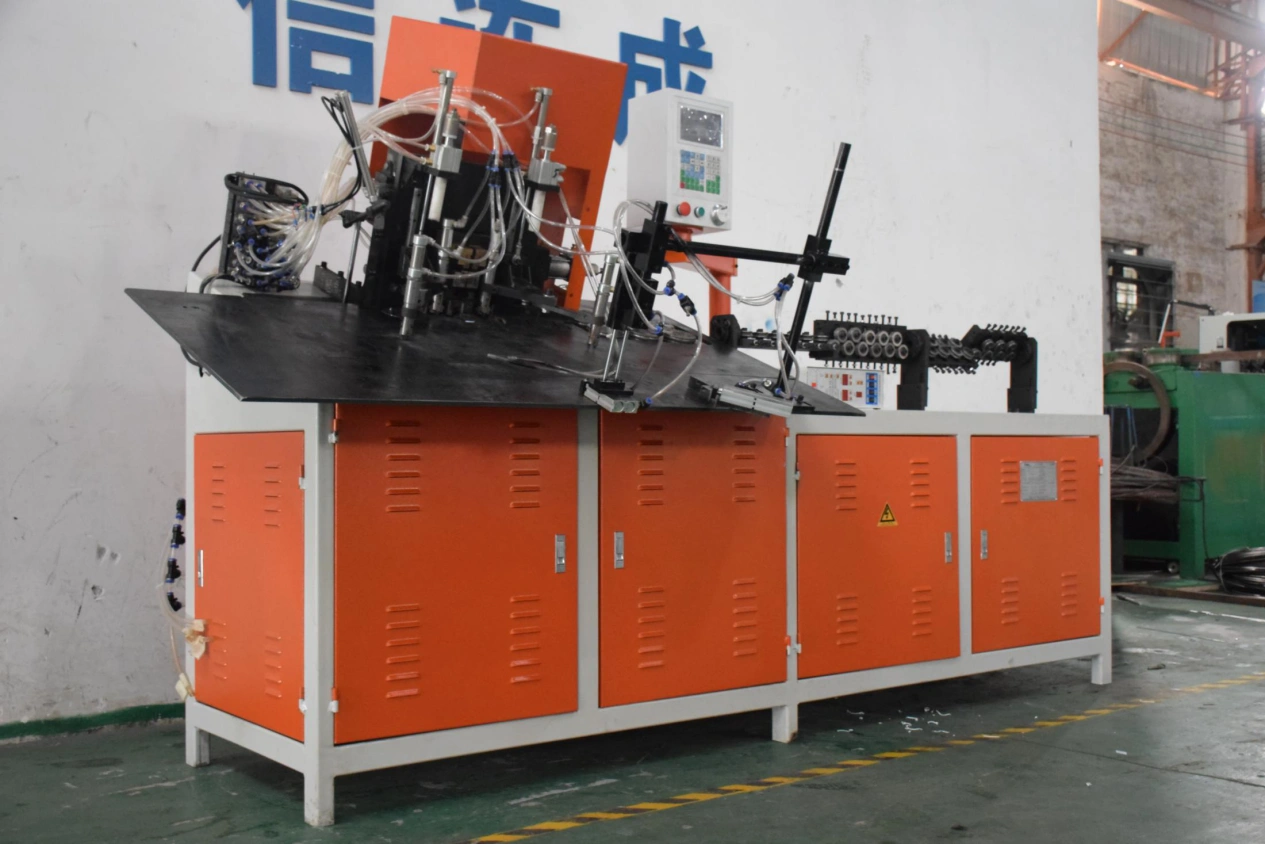

In the era of industrial-scale production and standardization in the fast-food industry, leading manufacturers are rethinking how to produce stainless steel wire components more efficiently. One standout innovation is the Jinchun XC5058CNC 3D Wire Head Bending and Forming Machine, a precision system engineered for 3–8mm wire materials.



Designed by one of the top small 2D CNC iron wire bending machine manufacturers, this high-output machine integrates forming, bending, and automated quality control, producing 480–640 egg rack components per hour. It’s already transforming production lines for food-grade wire products across China.



Why Choose the Jinchun XC5058CNC for Wire Bending and Forming

✅ Solving Key Industry Pain Points

Traditional wire frame production for fast-food applications often suffers from high labor costs and material waste. The XC5058CNC changes the game with:

Five-axis servo motion control (powered by Japan's Sanyo Denki motors) for precise 360° multi-angle forming.

Intelligent temperature control system to manage bending heat in real time, minimizing springback or deformation.

Precision right-angle bending for ultra-thin 3mm wire with tolerances as tight as ±0.5mm.

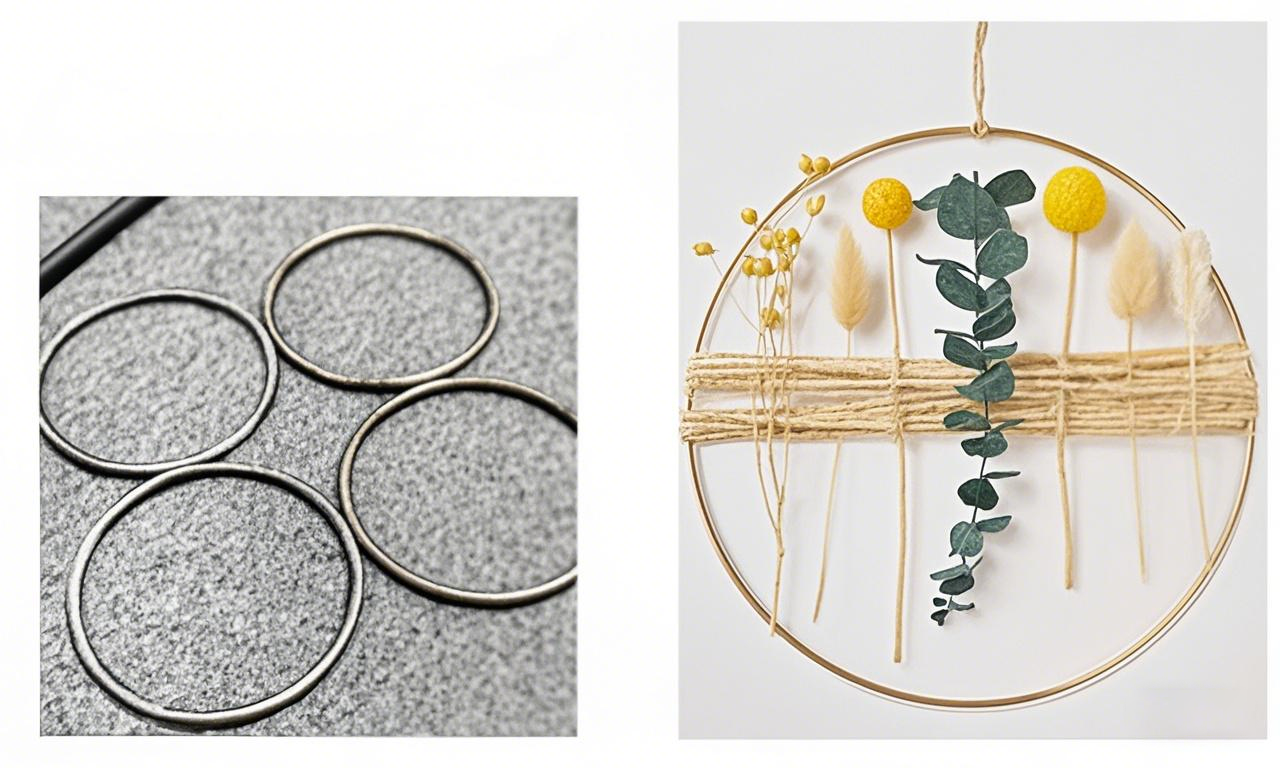

Whether you're in ring making, frame forming, or wire bender welding, this machine enables exceptional accuracy and consistency.



How Does This Machine Deliver Scalable, Smart Manufacturing

Fully Integrated Automation Workflow

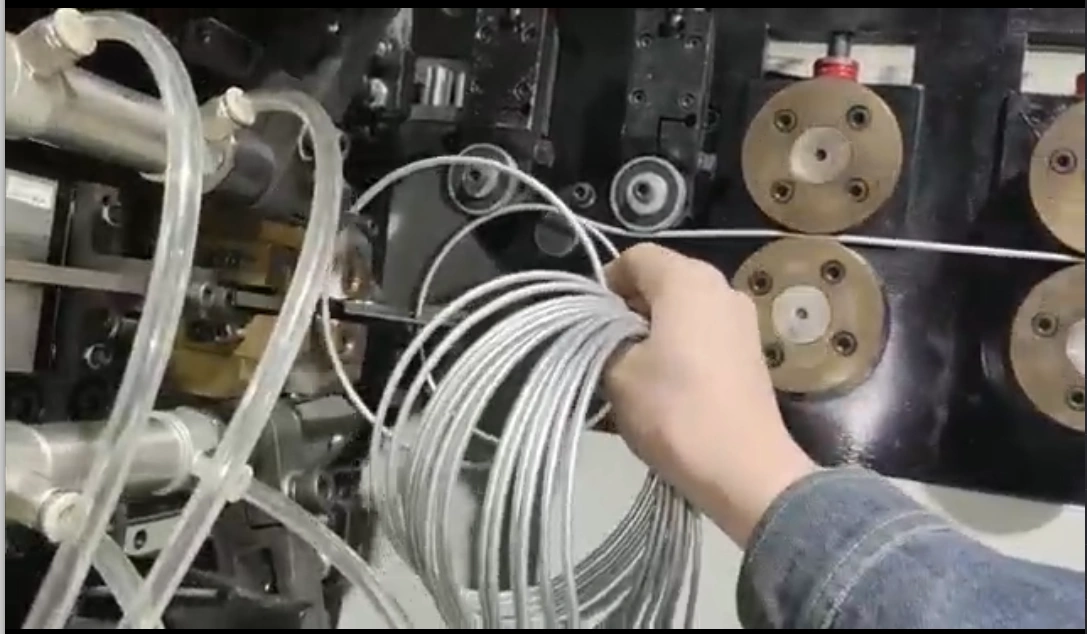

Raw Material Handling: The machine supports large 1200mm diameter wire spools and continuous feeding up to 500kg, using dual-channel wire feed and high-torque 4.5kW motors.

Wire Forming Unit: Combined turning/lifting motors with real-time interpolation, controlled via a Yaqi motion system, enable fluid 3D movements and rapid model switching—product changeover takes just 3 minutes.

Smart Programming: Supports both handwheel fine-tuning and teach-mode programming. Ideal for sample development and batch consistency.

Automated Quality Control: Optical and displacement sensors scan every finished part for form accuracy. The integrated data system logs quality metrics and triggers auto-shutdown upon defect detection.



Real-World Performance: A Fast-Food Manufacturer's Success Story

In Xuzhou, Jiangsu, a well-known food equipment company implemented the XC5058CNC for their egg pancake rack production. Results include:

Over 5,000 parts per 8-hour shift, a significant productivity boost versus manual processes.

Unmanned operation via robotic arm loading/unloading systems.

Food-grade 304 stainless steel outputs, cleaned via ultrasonic washing, ready for HACCP-certified packaging—no secondary processing required.



Customization and Long-Term Value

Jinchun provides end-to-end services—from wire process planning to remote maintenance. A dedicated "Wire Utilization Optimization Algorithm" minimizes waste, and the equipment supports cloud-based monitoring for predictive maintenance.

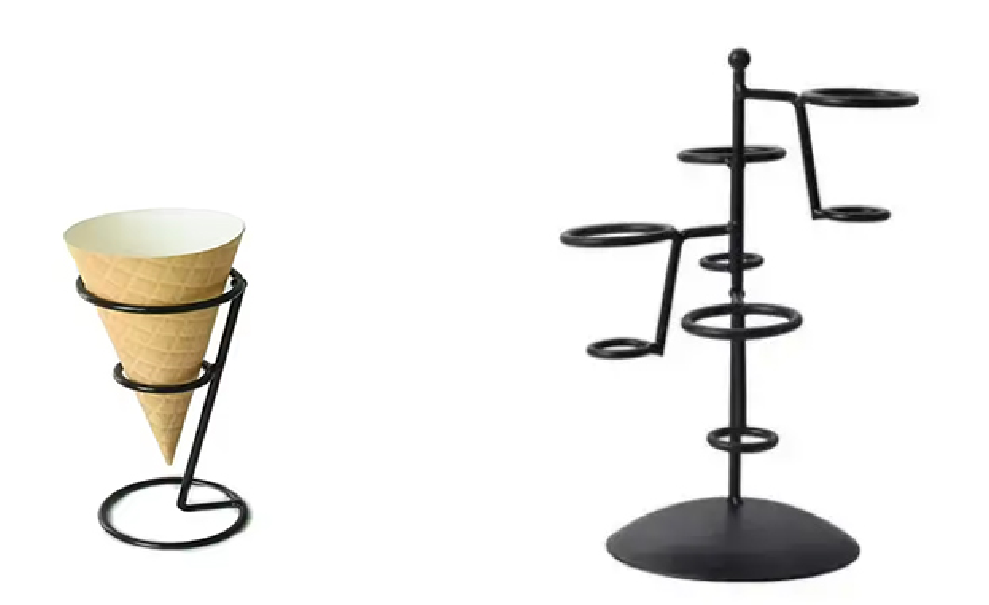

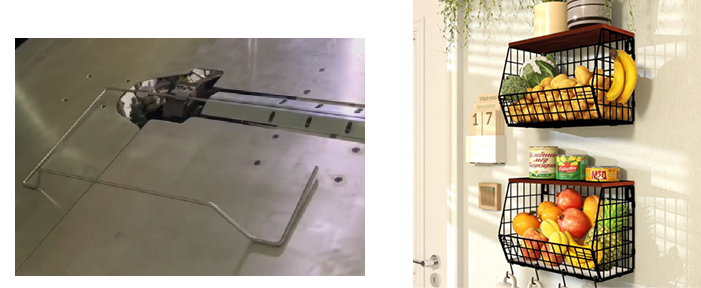

Currently, this 3D wire forming system is widely used for fast-food support tools including:

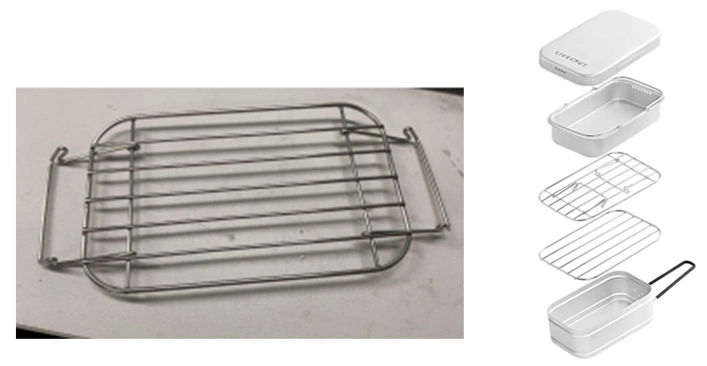

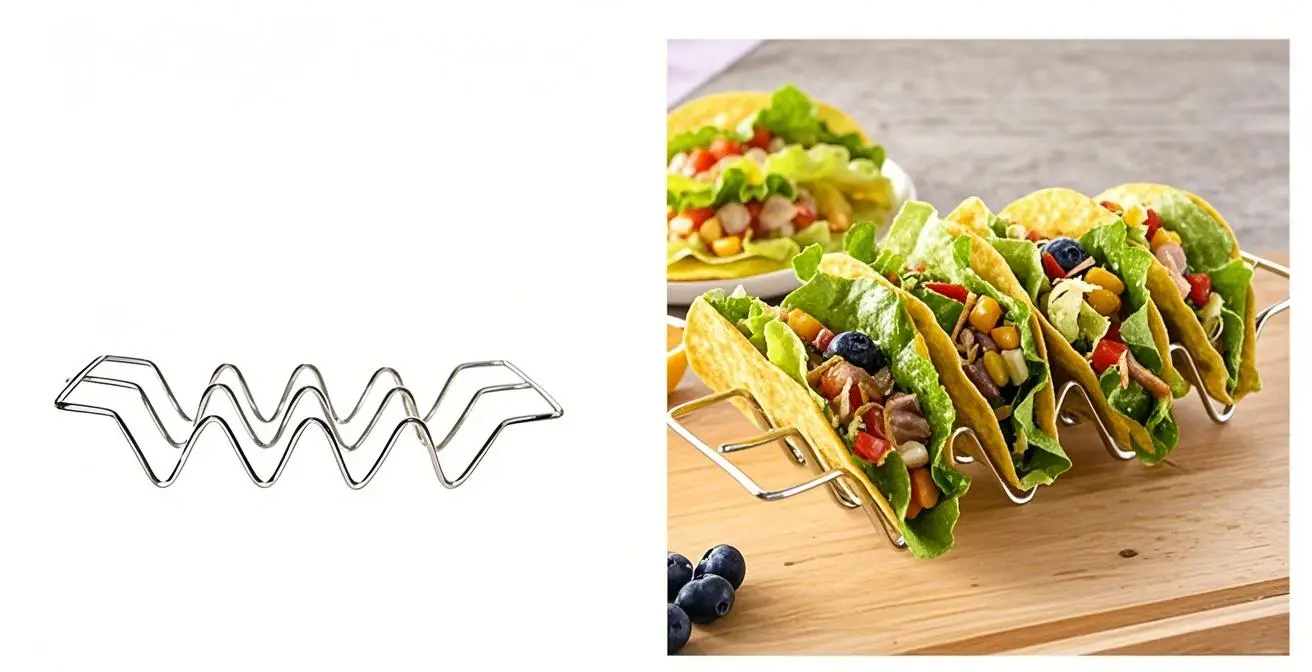

W-shaped racks

Heat-insulated handles

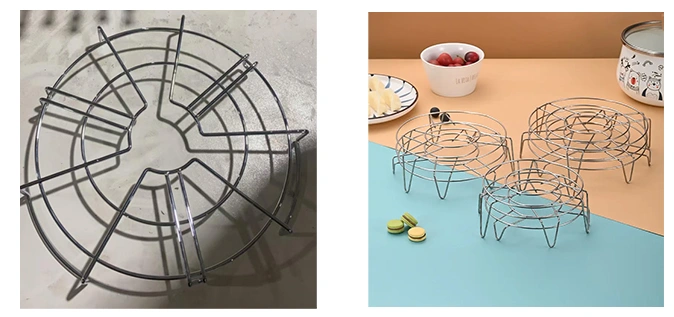

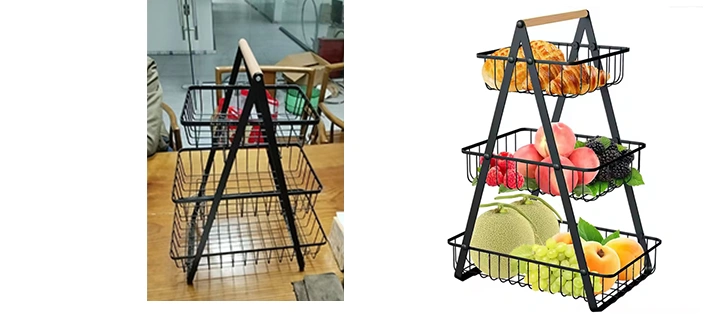

Multi-level serving frames

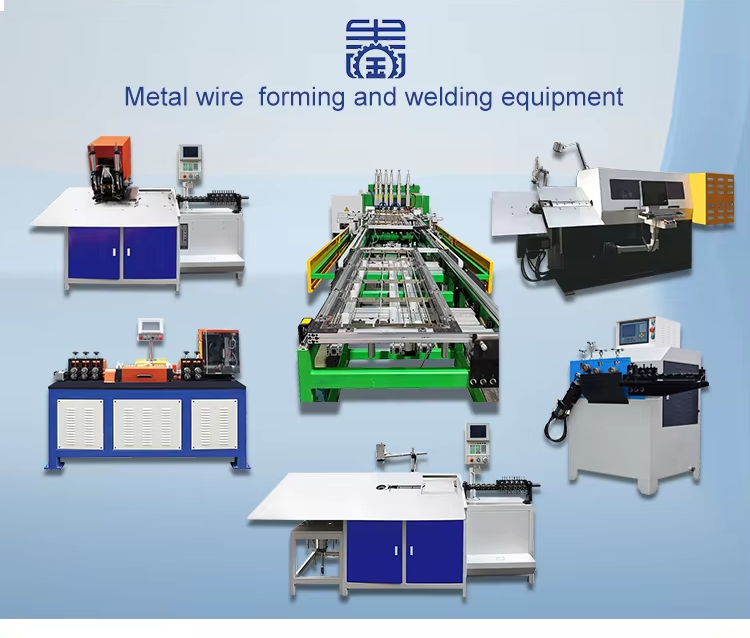

As a trusted bender and welder solution provider, Jinchun continues to lead automation in the food industry supply chain.



Conclusion: Elevate Your Production with Advanced CNC Wire Forming

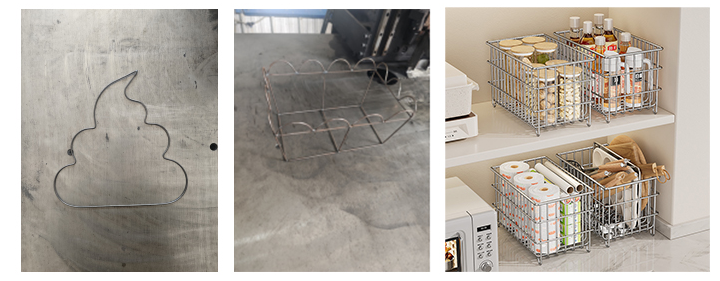

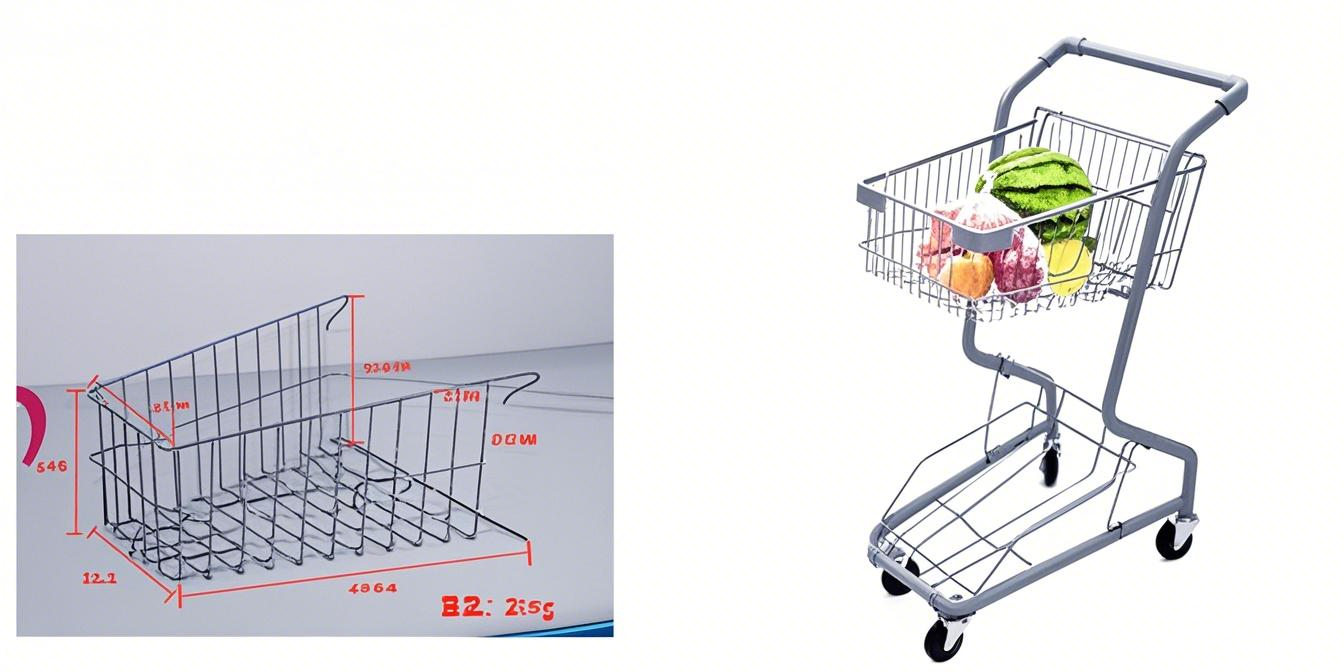

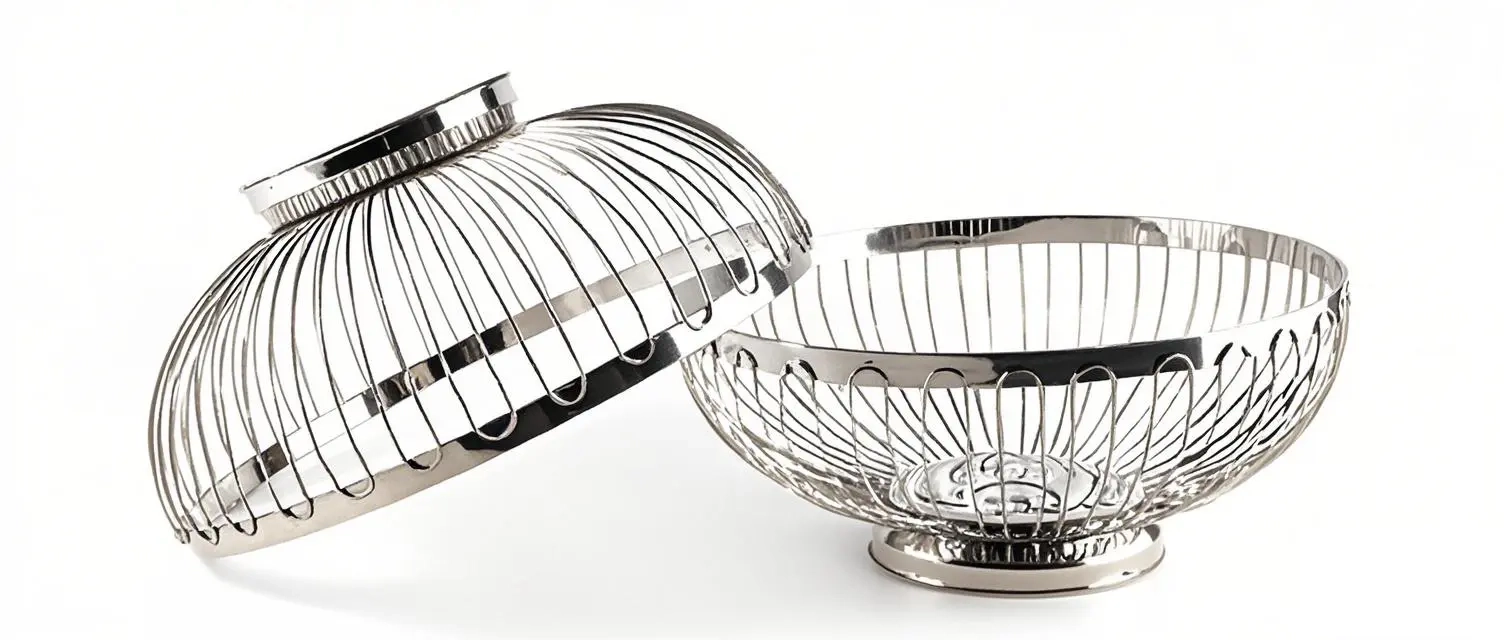

Whether you’re producing food-grade frames, retail basket components, or custom fixtures, Jinchun’s 3D forming system offers unmatched accuracy, efficiency, and scalability. For businesses looking to transform their production line with cutting-edge forming, bending, and welding technology, this is the all-in-one solution you’ve been waiting for.

Contact us today to request a tailored quote or learn more about how our technology can upgrade your production.
