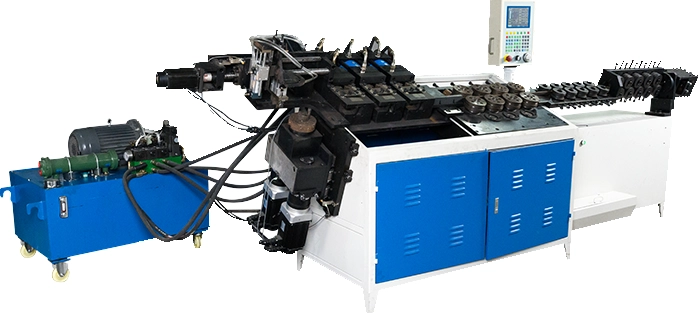

Jinchun 3-8 Forming Machine: Boosting Precision and Efficiency for 14x1.5mm Flat Iron Processing

Looking for a small 2D CNC iron wire bending machine that delivers precision and productivity for flat iron projects? Jinchun’s 3-8 Forming Machine offers a smart, powerful solution designed specifically for manufacturers needing fast, high-accuracy output. Built to handle 14x1.5mm flat iron and compatible with round and square wires (3–8mm), this advanced wire bender is ideal for ring making, forming, and even integration into welding workflows.



Key Features & Benefits

1. Engineered for Versatility: Perfect Match for Flat Iron Processing

Material Compatibility & Processing Range

This compact CNC wire bender supports a wide range of wire types—including round, flat, and square wires. Designed for 3–8mm iron wire and optimized for 14x1.5mm flat iron, it features 28 straightening rollers (Cr12 steel) and Cr12MOV feed rollers (58° hardness) to ensure smooth and straight wire feeding into the forming mold.



High-Precision Forming

With SKD11/51 bending molds (58–62° hardness), ±0.5mm bending accuracy, and a 6-axis 3D gear structure, the machine provides ±180° flexible angle adjustments. Perfect for manufacturers seeking reliable shaping in precision parts production.



2. Performance That Drives Productivity

Speed & Power for Mass Production

Powered by a 7.8kW servo motor system across multiple coordinated axes (feeding, bending, cutting), this wire forming machine reaches feed speeds up to 37m/min and bending speeds up to 300rpm. Pre-programmed with 300 motion commands, it supports fast job switching. Processing time per part can be as low as 8 seconds—ideal for achieving 5–8 pieces per minute.



3. Intelligent Control System for Easy Operation

Touchscreen Control Panel

The servo system (YaQi controller) features an intuitive bilingual interface (Chinese/English), enabling digital storage and quick recall of processing parameters. With 4000 data storage slots supporting 300 product workflows, downtime is minimized during product changeovers.



Full Automation Workflow

From automatic feeding → straightening & cutting → punching → bending, every step is automated. An integrated pneumatic system (1 cylinder + 1 solenoid valve) and servo punching module ensures precise hole placement and force control, minimizing deformation during ring making or multi-hole forming tasks.



4. Flexible Production & Cost Optimization

Multi-Material Capability

In addition to 14x1.5mm flat iron, this CNC iron wire bender handles round and square wires of the same range. A true “one machine fits all” for manufacturers producing a variety of components—from flat iron brackets and wire ring fasteners to square tube connectors.



Energy-Efficient, Low Maintenance

With servo drive technology, energy consumption is reduced by over 30% compared to hydraulic systems. Modular design makes it easy to diagnose and repair, while stored parameters enable quick process restoration.

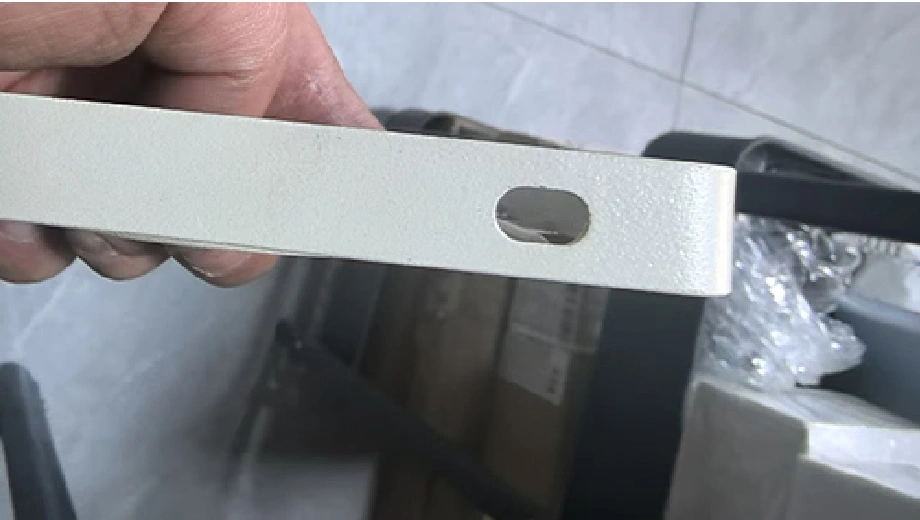

Real-World Use Case: Flat Iron Fence Brackets for a Chinese Manufacturer

Output Efficiency: Up to 4,000 pieces/day per machine—4x improvement over legacy machines

Product Quality: ±0.5mm precision = <0.3% defect rate

Cost Reduction: 25% savings through reduced labor and automation



Why Choose Jinchun?

Jinchun is one of the trusted small 2D CNC iron wire bending machine manufacturers in China, delivering advanced wire benders, forming machines, and welders tailored to the evolving needs of metal processing industries. Whether you're scaling up for high-volume runs or switching rapidly between custom jobs, the 3-8 Forming Machine is the all-in-one solution that keeps your shop competitive.

Ready to upgrade your production line? Contact the Jinchun team today for a customized solution or detailed technical specs.
