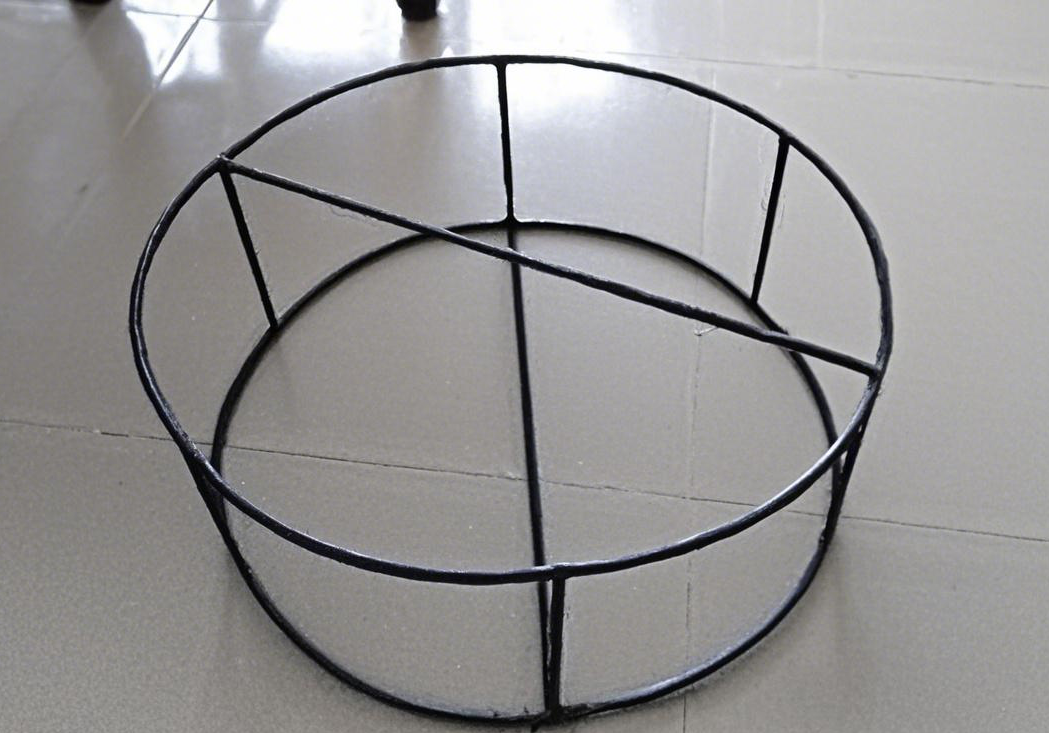

How Jinchun Automation Powers Shrimp Trap Production

Traditional Challenges in Shrimp Trap Manufacturing—and the Automated Breakthrough

Conventional shrimp trap production relies heavily on manual processes like wire bending, welding, and straightening, which often lead to:

Low efficiency due to labor-intensive steps

High defect rates from inconsistent welding and bending

Unpredictable costs from manual labor and material waste


Jinchun Automation offers a complete transformation with full-process smart integration—straightening, welding, ring making, and forming—to help shrimp trap manufacturers scale up productivity, accuracy, and cost-efficiency.

Full-Process Automation with Jinchun Equipment

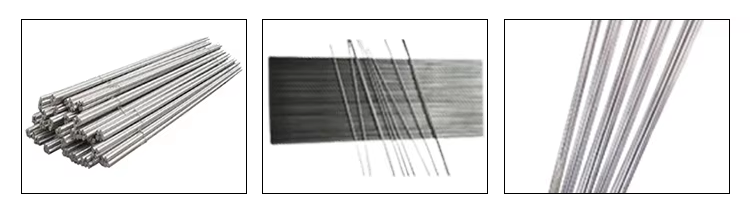

1. Straightening: Fast and Accurate Wire Calibration

Model: XLC 5-9 Wire Straightening Machine

Key Features:

Supports wire diameters from Φ5mm–Φ9mm, compatible with iron and stainless steel

High-speed 2400r/min shaft, achieving straightening speeds up to 20m/min

Compact 500kg build, small footprint, easy to move

Use Case: Prepares structural wire for trap frames with high-speed precision.

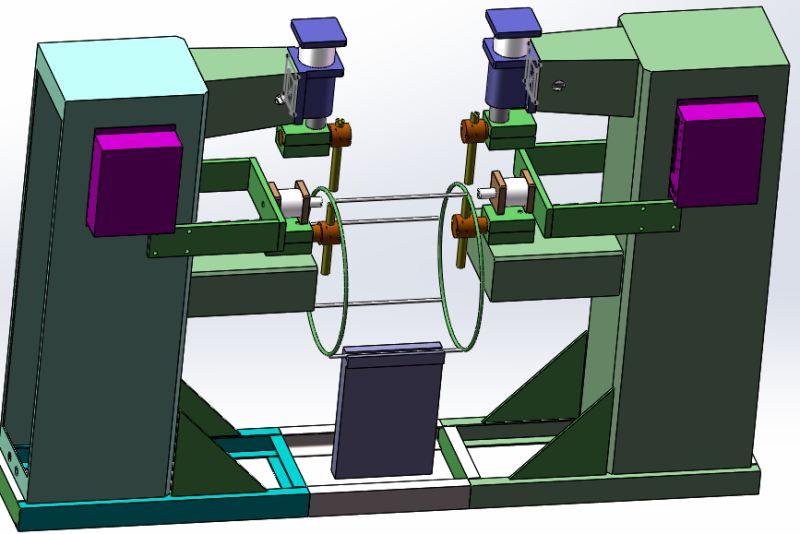

2. Welding: Fully Automated Spot Welding with Solid Joints

Model: 63KVA Dual-Head Resistance Spot Welder

Technical Highlights:

High-output current ensures firm and smooth welding, avoiding weak spots

Advanced cooling system reduces fault rates by 80%

Auto wire-feeding system lowers manual involvement, with defect rate below 3%

Use Case: Joins trap frame intersections securely and efficiently.



3. Ring Making + Welding: One-Step Forming, ±0.2mm Accuracy

Model: XLC-2-8 Ring Making & Welding Machine

Key Specs:

Handles Φ2mm–Φ8mm wire for various trap sizes

Welding diameter range: Φ300mm–Φ850mm with ±0.2mm tolerance

Speed of 20–40m/min, producing over 1200 traps/day per unit

Use Case: Replaces manual ring bending with automated, precision ring forming and welding. A go-to solution from small 2d cnc iron wire bending machine manufacturers for high-volume shrimp trap production.



Why Jinchun Is the Top Choice for Shrimp Trap Factories

✅ End-to-End Coverage, Lower Equipment Costs

Offers a bundled solution of straightening, ring bender, and welder—no need to coordinate across different brands or models.

✅ High ROI, Fast Payback Period

Example: The XLC-2-8 ring making forming welding welder costs ¥75,000, yields over 1200 units/day, and pays for itself in less than 3 months.

✅ Reliable After-Sales Service

Lifetime tech support

Nationwide spare parts inventory

48-hour repair response

✅ Customization for Special Traps

Adaptable for thickened or foldable shrimp traps with specialized fixtures and parameter tuning.



Case Study: A Shrimp Trap Manufacturer's Successful Transformation

Background: A leading brand with annual sales exceeding ¥50 million faced high labor costs, low capacity, and a defect rate over 15%.

Solution: Adopted Jinchun’s XLC straightener + XLC-2-8 ring forming welder system.

Results:

Daily output surged to 3000 units, defect rate dropped to 5%

Labor cost cut by 60%, delivery cycle reduced by 70%

Zero equipment failure in 6 months; after-sales support exceeded expectations


Take Action: Launch Your Efficient Shrimp Trap Production Line Today

Are you facing:

❌ Low welding speed and high labor cost?

❌ Inconsistent product quality and frequent complaints?

❌ Tight budget for automation investment?

We Offer:

Free technical consultation – Scan below to get our Shrimp Trap Automation White Paper

Trial machine testing – On-site setup and comparison within 3 days

Flexible installment plan – 30% down payment, 12-month interest-free balance



Contact Us:
Tel/Whatsapp: +86 15015830219 | E-MAIL: [email protected]

Address: Kunzhou Industrial Zone, Beijiao Town, Shunde, Foshan, Guangdong, China

www.jinchunxlc.com

Choose Jinchun—Where Every Shrimp Trap is Built to Be a Masterpiece.
