Automatic Fence Mesh Welding & Bending Line

✅ Product Overview

The Automatic Fence Mesh Welding and Bending Line from Foshan Jinchun Machinery Equipment Co., Ltd. offers a fully automated, high-efficiency solution for producing welded fence mesh panels. Engineered for industrial-grade performance, this complete line integrates ring making, wire straightening, automatic feeding, precision welding, CNC bending, and robotic stacking—all in one streamlined system.

Ideal for manufacturers looking for small 2D CNC iron wire bending machines, advanced bender systems, or high-performance welding solutions.

⚙️ Core Components & Technologies

1. Automatic Longitudinal Wire Feeder

Capacity: 300–500kg steel wire bin

Servo-controlled wire spacing (±0.2mm)

Eliminates manual feeding interruptions



2. Cross Wire Feeder with Intelligent Storage

1.5-ton feed hopper with magnetic rollers

Auto-replenishment sensor system

±0.5mm welding positioning precision



3. High-Speed Welding Unit

16x water-cooled transformers (0–99 wave cycles)

Servo mesh pulling system (up to 80 welds/min)

Supports panel widths up to 3100mm

Consistent ±2mm mesh tolerance

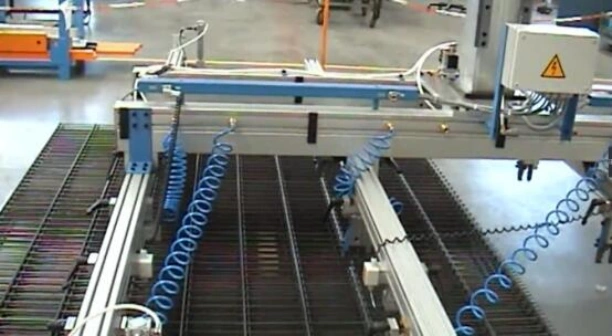

4. CNC Automatic Bending & Robotic Stacking

Programmable bending for 50–200mm mesh sizes

Robotic stacker with 900mm lift in 2s

Reduces labor by 50%+

Whether you are a ring making manufacturer or a welder automation provider, this system scales across multiple industries.



-- Production Benefits

Metric Before Jinchun After Jinchun

Daily Output 800 panels 2,000 panels

Welding Defect Rate 8% <0.2%

Energy Consumption – ↓ 35%

Maintenance Cost – ↓ ¥120,000/year



-- Premium Components

Servo System: Taiwan Delta (0.01mm accuracy)

Touchscreen: 7" Weintek HMI, 128 program storage

Electrical: Schneider, Chint, Delixi

Cooling: IP67-rated sealed water-cooled transformer

Control Algorithm: Adaptive PLC for >10 wire types



-- Applications

Construction Fencing

Livestock Enclosures

Decorative Grilles

Automotive Mesh Components

Compatible with 2D/3D wire bending, custom grid spacing, and high-tensile materials.



-- What's Included

Ring Making + Butt Welding Machine

Automatic Longitudinal & Cross Wire Feeders

Welding Unit with Multi-Transformer Setup

CNC Bending Machine

Robotic Stacker

Control Panel (Touchscreen + PLC)



-- ROI & Investment Highlights

Short-Term Gains

Save 4–6 workers per shift

Plug-and-play straightening/cutting machines

70% less training time

Long-Term Value

100,000-hour servo lifespan

30% lower depreciation than competitors

Mesh range: 50–200mm, for flexible production



-- Get a Custom Quote or Free Layout Plan

Free On-Site Assessment

30-Day Return (Non-Human Faults)

Lifetime Tech Support – Includes 2 Annual Upgrades

Contact US Now!!

-- Email: [email protected]

-- WhatsApp: +86 15015830219

-- Website: www.jinchunxlc.com



-- Why Choose Jinchun?

When cutting-edge welding and intelligent wire bender systems meet in one solution, you don’t just produce faster—you produce smarter. Whether you're searching for small 2D CNC iron wire bending machine manufacturers or scaling up your ring making operation, Jinchun delivers reliability, speed, and value.
