What Is a 2D Wire Bending Machine and Why Is It Essential for High-Precision Fan Guard Frames?

In the world of industrial safety and machinery protection, wire fan guard frames play a vital role in ensuring both operational security and mechanical stability. Whether used in industrial blowers or household appliances, a poorly formed or weak frame could result in foreign object ingress, system failure, or even serious safety incidents.



To meet these demanding standards, precision and structural integrity are non-negotiable. That’s where a small 2D CNC iron wire bending machine from expert manufacturers like Jinchun becomes the backbone of efficient, high-volume, and high-accuracy wire forming operations.



Why Does Fan Guard Frame Manufacturing Demand Such Tight Tolerances?

Fan guard frames are subject to dual pressures: mechanical strength and dimensional precision.



Ultra-Precise Dimensions

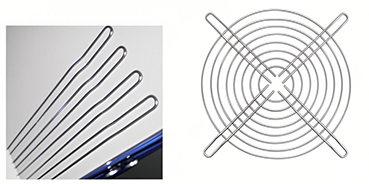

Each bend angle (e.g., 120°, 150°), segment length, and hole spacing must follow strict engineering drawings. A deviation of even 0.1mm can compromise the assembly or create safety gaps.



Flawless Surface Finish

Scratches, dents, or distortions can lead to stress concentration, risking fractures during high-speed fan operation.



High Batch Consistency

Orders often exceed tens of thousands of pieces per batch, requiring each part to maintain consistent tensile strength and fatigue resistance.



Traditional manual forming methods fall short on both efficiency and repeatability. With less than 200 parts/day output, operators struggle to meet modern manufacturing demands. That’s why more manufacturers are turning to automated solutions like Jinchun’s 2D CNC wire bending machine—a bender designed for strength, precision, and speed.



How Jinchun’s 2D CNC Wire Bending Machine Revolutionizes 2-6mm Wire Forming

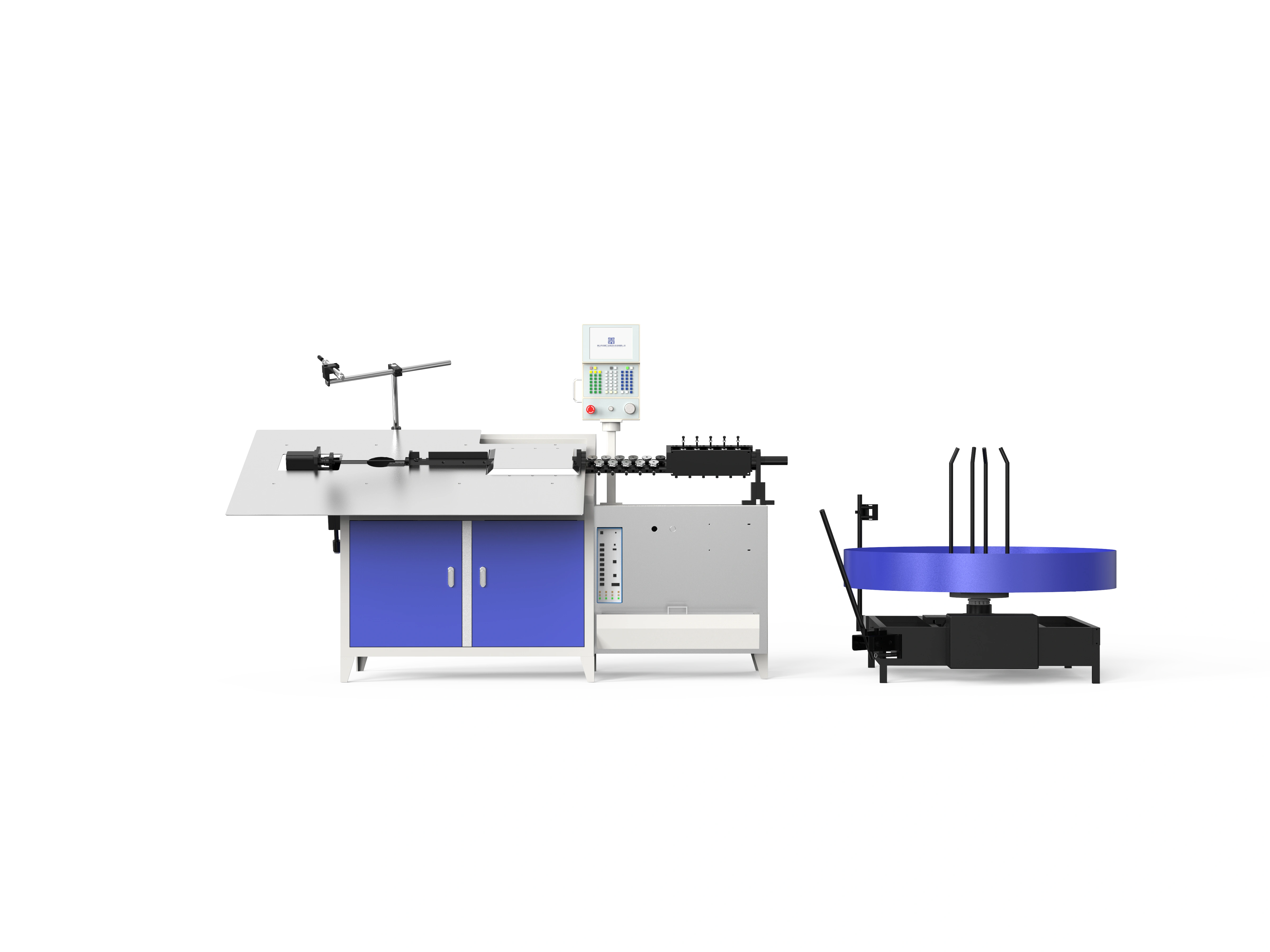

Model: JC-CW20

As a leading 2D CNC iron wire bending machine manufacturer, Jinchun developed this compact yet powerful bending and forming system to address the full spectrum of fan guard fabrication challenges.



➤ Precision Control – Zero Margin for Error

Wire Straightening System

Equipped with 28 hardened rollers (Cr12 steel, HRC58-62), the system guarantees ≤0.05mm/m wire straightness before forming.



➤High-Grade Tooling

Molds are made from SKD11 tool steel, vacuum-hardened to HRC58-60, with ±0.5° bending angle tolerance. CNC machining ensures flawless cavity detail.



➤Optional Vision Detection

CCD camera scans wire profile in real time and cross-verifies with digital blueprints—perfect for multi-angle or asymmetric designs.



⚙️ Smart Motion – Triple the Output with Intelligent Drive

4-Axis Servo Coordination

Powered by Inovance servo motors, the feed, bend, rotate, and lift axes operate in perfect sync. Average output: 8–10 pcs/min (vs. 3–4 pcs/min on traditional machines). A 6mm wire rectangular frame completes in just 5.3 seconds.



Flexible Programming

Import DXF/DWG files via USB or manually input parameters (length, angle, feed rate). No tooling change needed—switch product models in under 3 minutes.



Overload Protection

System auto-stops if bending force exceeds 1.8 tons, preventing damage from contaminated or defective wires. Machine lifespan increases by 30%.



➤ Structural Rigor – Built for Long-Term Stability

Heavy-Duty Frame

6mm-thick welded steel housing with 4 linear guide systems limits vibration to ≤0.02mm during high-speed operation.



Lightweight Optimization

Weighing 880kg—20% lighter than peers—reduces energy use and inertia-related inaccuracies. After 12-hour continuous runs, positioning drift remains ≤0.1mm.



Durability Details

Bronze self-lubricating bushings resist dust, and a fan-cooled control box maintains stable servo motor temps (-10°C to 50°C), ideal for harsh workshop environments.



How One Fan Guard Supplier Tripled Output with Jinchun's Bender

A fan parts manufacturer in Changzhou, Jiangsu—supplier to Mitsubishi and Gree—faced quality issues and slow delivery with manual forming (85% yield, 25-day lead times). After switching to Jinchun’s 2D wire bender:



Quality Boost

Product yield rose to 99.2%, tensile strength improved 15%, and fatigue test failure dropped to 0.01% after 100,000 bend cycles.



Efficiency Gains

Daily capacity jumped to 12,000 units—3× output vs. manual. Optional auto-loader enabled lights-out production, cutting labor costs by 60%.



Ultimate Flexibility

The company now fulfills 12 SKU orders simultaneously with 15-minute changeovers, ideal for small-batch, multi-variant manufacturing.



Conclusion: How Jinchun Sets the Standard for Smart Wire Forming

The true value of Jinchun’s small 2D CNC iron wire bending machine lies not just in speed or strength—it transforms wire frame manufacturing from manual craftsmanship to data-driven automation.

With an integrated workflow for straightening, forming, and ring making, and precision welding options available, this solution empowers manufacturers to meet modern demands: zero-defect quality, high productivity, and flexible production.

Whether you're producing protective fan guards or any precision wire product, Jinchun’s bender and forming system is your key to scaling safely and smartly.



➤ Looking for custom wire forming and welding solutions? Contact us now to unlock the future of automated metal fabrication.
