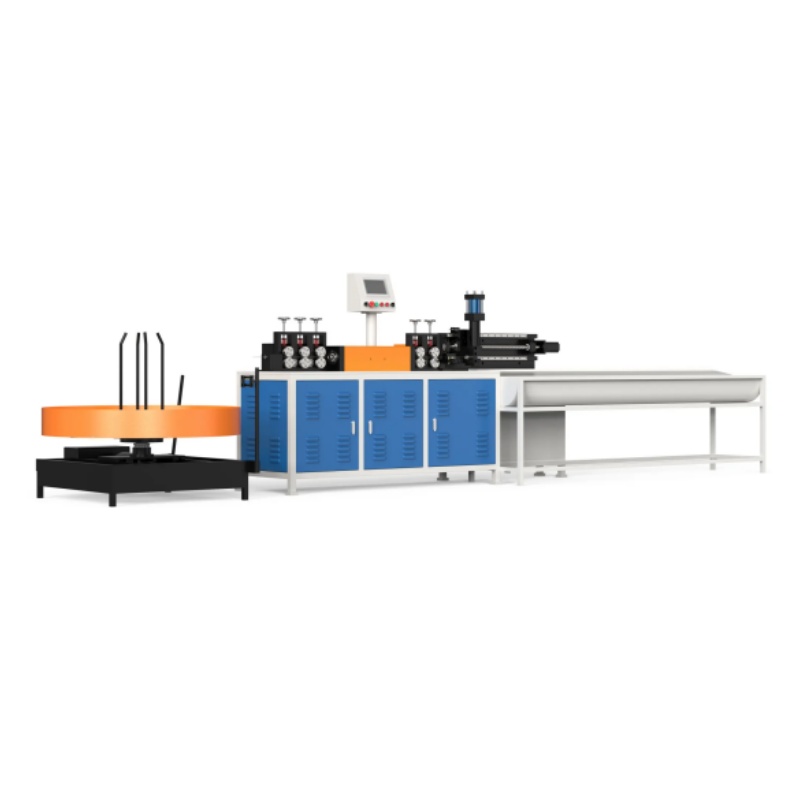

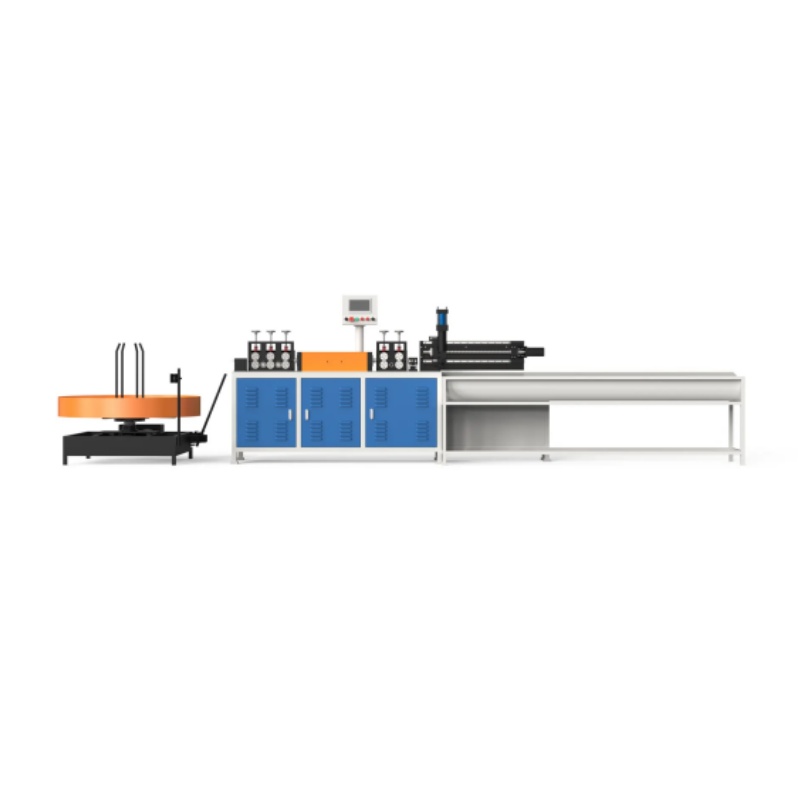

Hydraulic Tracking Straightening And Cutting Machine
2D CNC Fully Automatic Wire Streightening and Cutting Machine is mainly used for wire straightening and cutting various metal wires.
Product Description
Jinchun Manufacturer Best Price Automatic Hydraulic Cutting and Straightening Machine
Product Description
The machine controls the speed (fast or slow) by rotating the button on the control panel. A maximum adjustment value is provided based on actual needs. Multiple wire lengths can be configured in a single task order, and the CNC system will process them sequentially. Modifying the wire length is simple—just adjust it directly on the operation platform.
Specification
| Model No. | 2-6mm | 3-8mm | 5-10mm | 6-12mm |
| Power Supply | 3 Phase, 380V, 50HZ | 3 Phase, 380V, 50HZ | 3 Phase, 380V, 50HZ | 3 Phase, 380V, 50HZ |
| Cutting Length | ≥ 20mm | ≥ 50mm | ≥ 50mm | ≥ 50mm |
| Wire Feeding Speed | 20-40m/ min | 20-35m/ min | 7-30m/ min | 10-40m/ min |
| Length Tolerance | ± 0.5mm (cutting length within 500mm) | ±0.5mm | ±0.5mm | ±0.5mm |
| Wire Straightening Material | Low Carbon Steel Wire, Stainless Steel Wire,Galvanizing Wire | |||
| Wire Feeding Motor | 1.5 KW with reducer | 2.2 KW with reducer | 3.7 KW with reducer | 3.7 KW with reducer |
| Straightening Motor | 3KW-2P | 5.5 KW- 2P | 7.5 KW-4P- 2P | 11 KW- 2P |
| Cutting Servo Motor | 0.75KW | 1.0 KW | 1.0 KW | 1.5 KW |
| Wire Straightening Block No. | 8 pcs | 6 pcs | 6 pcs | 6 pcs |
| Wire Feeding Group | 2 Group (4 coulpling) | 2 Group (5 sets of wheels) | 2 Group (6 sets of wheels) | 2 Group (6 sets of wheels) |
| Cutting-off Oil Cylinder | MOB 63-20 | MOB 63-20 | MOB 63-20 | MOB 63-20 |
| Wire Range | 2mm-6mm (Ordinary Carbon Steel); 2-4mm (SS Wire) | 3mm-8mm (Ordinary Carbon Steel); 3-6mm (SS Wire) | 5mm-10mm (Ordinary Carbon Steel); 4-7mm (SS Wire) | 6mm-12mm (Ordinary Carbon Steel); 6-10mm (SS Wire) |
| Storage | 10000 Groups of Data, 300 Actions/ Group | 10000 Groups of Data, 300 Actions/ Group | 10000 Groups of Data, 300 Actions/ Group | 10000 Groups of Data, 300 Actions/ Group |
| Machine Size | 900*900*500mm | 800*300*600mm | 3070*900*1450mm | 3200*700*1600mm |
Feature And Application
What product shapes are compatible with this machine?
Product Qualification
 |
 |
Deliver, Shipping and Serving
Professional ODM&OEM Lash Glue Remover Products Manufacturer for over 20 years. We appreciate cooperation with you.
 |
 |
FAQ
Q1: What is the price of your machine?
A. our machines are customized for your requirements. If you want to get the appropriate price, please provide us the following information.
The material and thickness of your product
The minimum and maximum size of your product
The welding position of your products
The automation level that you want to achieve
It would be better if you can provide us the detailed product drawings so our engineer can come out with the suitable technical proposal and price for you.
Q2. Can I customize the product?
A. Yes . We can customize production equipment solutions according to your product requirements .
Q3. Can I get a sample?
A. Yes. But the proofing cost and shipping are negotiated by both parties.
Q4. What is the delivery time of your machine?
A. it depends on the complexity of your machine. Most of our standard machine we got in stock, then we can shape the machine with the seven days after receiving your payment. If you need the Customized machine, normally it would take about 30-90 days to complete the machine.
Q5. How do I order from you?
A.Consulting → equipment plan quotation →negotiation→ prototyping →PO/PI→ payment deposit → production → debugging →delivery→further.
